Mounting

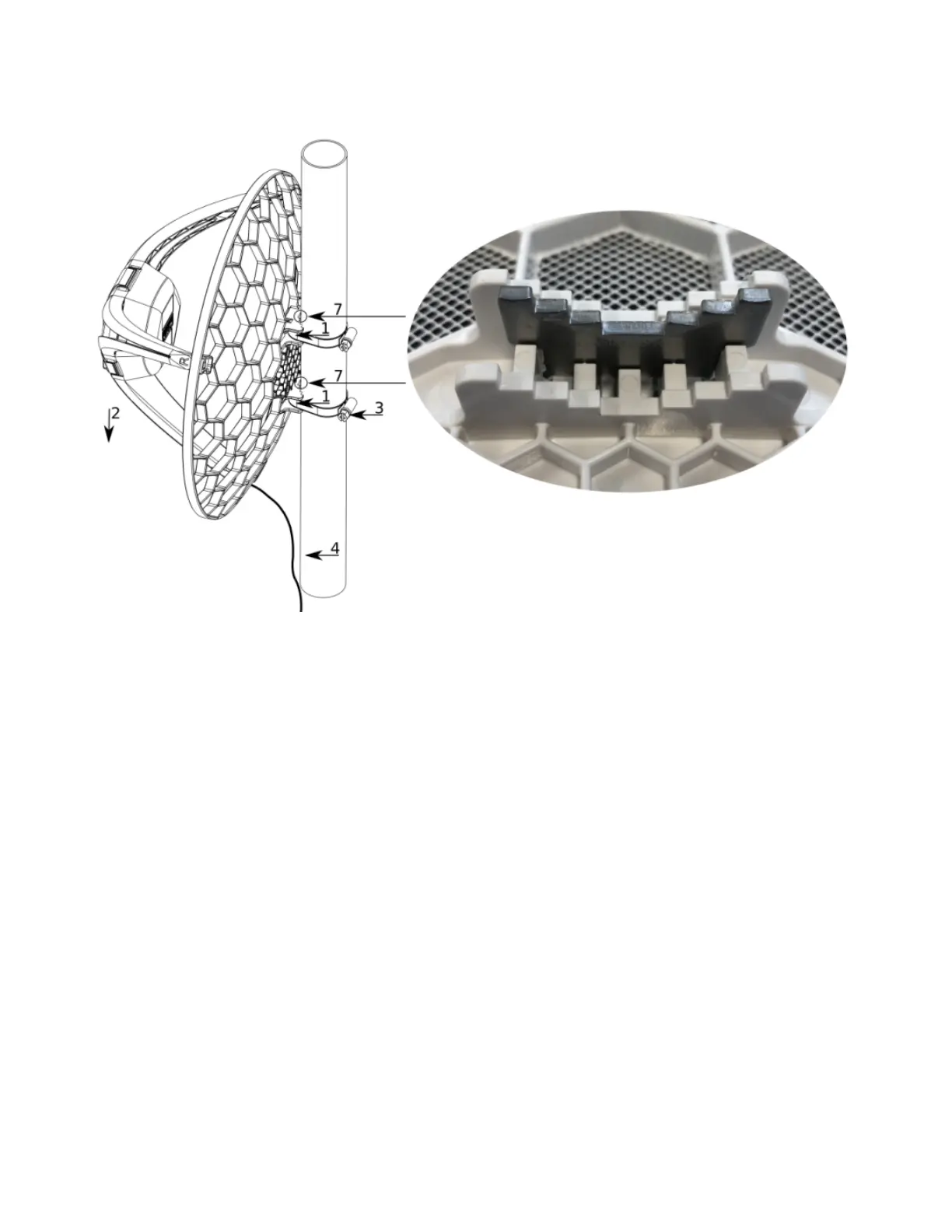

Slide the included metallic mounting rings into the two slots on the back of the antenna dish.
Attach the unit to a pole, with the Ethernet port pointing downward.
Use a PH2 screwdriver to tighten the rings.
Fix the Ethernet cable to the pole using zip ties, less than one meter from the unit, to avoid the cable being pulled out of the port.
Check mounting angle and positioning.
Optional: If required, before mounting the unit, you can insert the included 5-degree adjustment adapter into the top or bottom slot where the
mounting ring is inserted. This will create an additional upward or downward angle when the unit is tightened to a vertical pole.
Insert a 5-degree angle adapter to one of the slots and remount the unit.
When mounting outdoors, please ensure that any cable openings are directed downwards. Use POE injector and proper grounding, this device has a
specially designed grounding connector under the port cover. Recommended using shielded Cat5/6 cable. The IP rating scale for this device is IP54.
Warning! This equipment should be installed and operated with a minimum distance of 120 cm between the device and your body. The operation of this
equipment in the residential environment could cause radio interference.
Configuration
Once logged in, we recommend clicking the "Check for updates" button in the QuickSet menu, as updating your RouterOS software to the latest version
ensures the best performance and stability. For wireless models, please make sure you have selected the country where the device will be used, to
conform to local regulations.
RouterOS includes many configuration options in addition to what is described in this document. We suggest starting here to get yourself accustomed to
the possibilities: . In case an IP connection is not available, the Winbox tool ( ) can be used to connect to the MAC https://mt.lv/help https://mt.lv/winbox
address of the device from the LAN side (all access is blocked from the Internet port by default).
For recovery purposes, it is possible to boot the device for reinstallation, see a section .Reset button
