Updatingyour RouterOS software to the latest version will ensure the best performance, stability, and security updates.
Set up your router password in the bottom field "Password" to the right and repeat it in the field "Confirm Password", it will be used to log in next
time.
Click on the "Apply Configuration" to save changes.
Case assembly
Attach the two legs to the LHG case by sliding them onto the respective sides, the legs are different and cannot be exchanged (when looking at
the product place it that the cover for the Ethernet port is in front of you, leg marked R is for the right side, leg marked L is for the left side).
Snap the assembled LHG unit to the grid in the appropriate central location.
Fix the two legs in place with included two self-thread screws (Phillips screwdriver PH2).
The package also contains a grounding cable connector and a 5-degree angle adapter, for easier up or downward tilt adjustment. See paragraph.Mounting
Powering
The device accepts powering from:
PoE in 802.3af/at
Supported input Voltage 12-57 V
Power adapter nominal voltage 24 V
Power adapter nominal current 0.8 A
Max power consumption 8 W

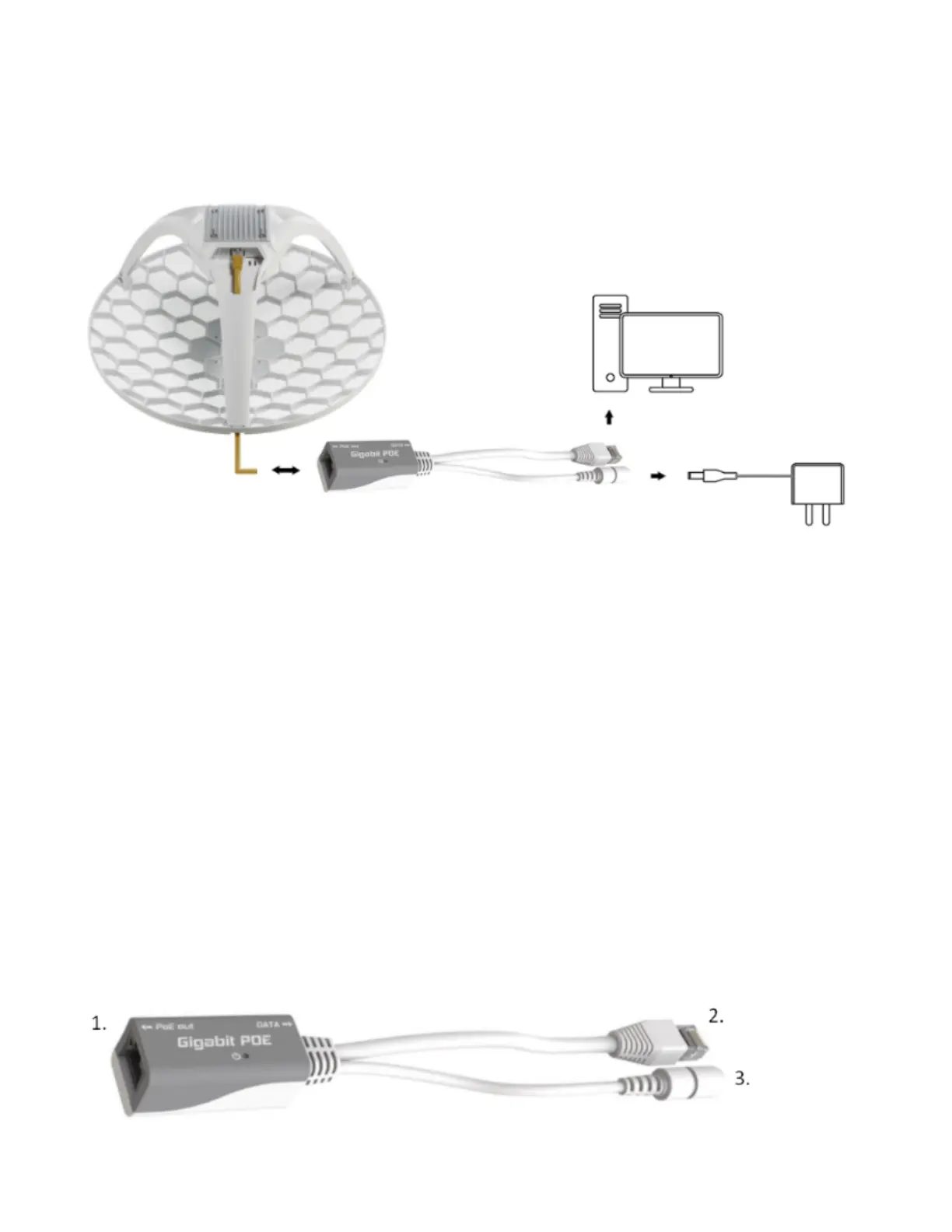

Connecting to a PoE Adapter:
Connect the Ethernet cable from the device to the PoE+DATA port of the PoE adapter;
Connect PoE adapter to the PC or other network device by using the adapter Ethernet cable marked DATA;
Connect the power cord to the adapter, and then plug the power cord into a power outlet.
