When mounting outdoors, please ensure that any cable openings are directed downwards. We recommend using the POE injector and proper grounding
with Cat6 shielded cable.
Mounting points:
There are eight mounting points on the back of this device. Choose the most relevant ones.
Middle points are designed for mounting on the mast, there are curves on the case for slim fitment.
It's recommended to secure Ethernet cable to the pole using zip ties. With the distance from the device approximately 30 cm.
The device must be mounted by UP arrow facing upwards.
The installation infrastructure (towers and masts), as well as the router itself, must be properly grounded. The device includes a grounding wire attachment
screw on the backside.
Attach your grounding wire to the grounding screw.
Attach the other end of the grounding wire to the grounded mast.
Mounting and configuration of this device should be performed by a qualified person.

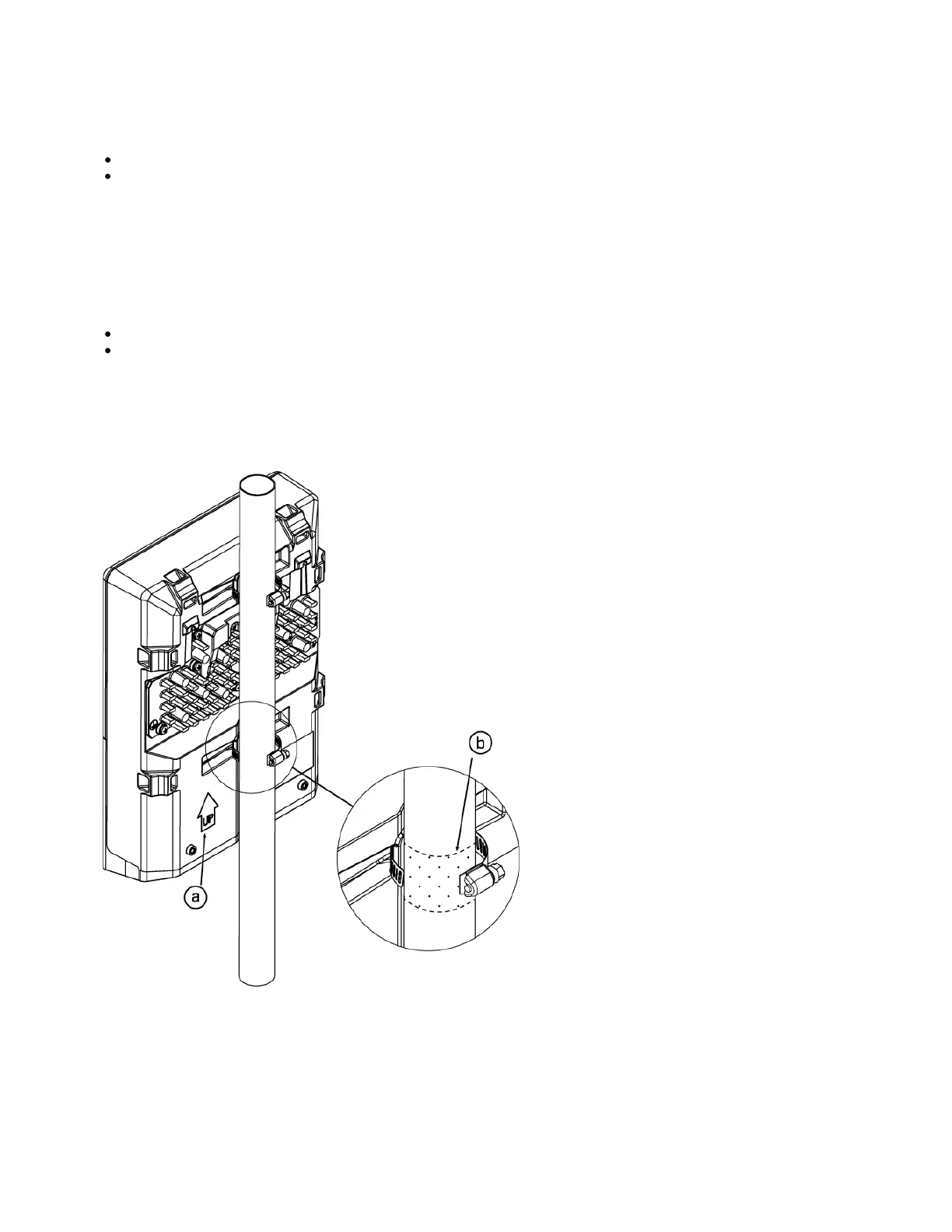

Mounting on the mast or pole:
Insert provided steel clamps into mounting spots.
Attach the unit to the mast.
Align the device and secure it by tightening steel clamps with a PH2 screwdriver.
Guide Ethernet cables through the opening and connect to the Ethernet ports.
Close bottom latch and secure with a screw.
