A – Always make sure to place the unit in an upwards position.
B - It's recommended to use electrical tape to increase friction between materials.

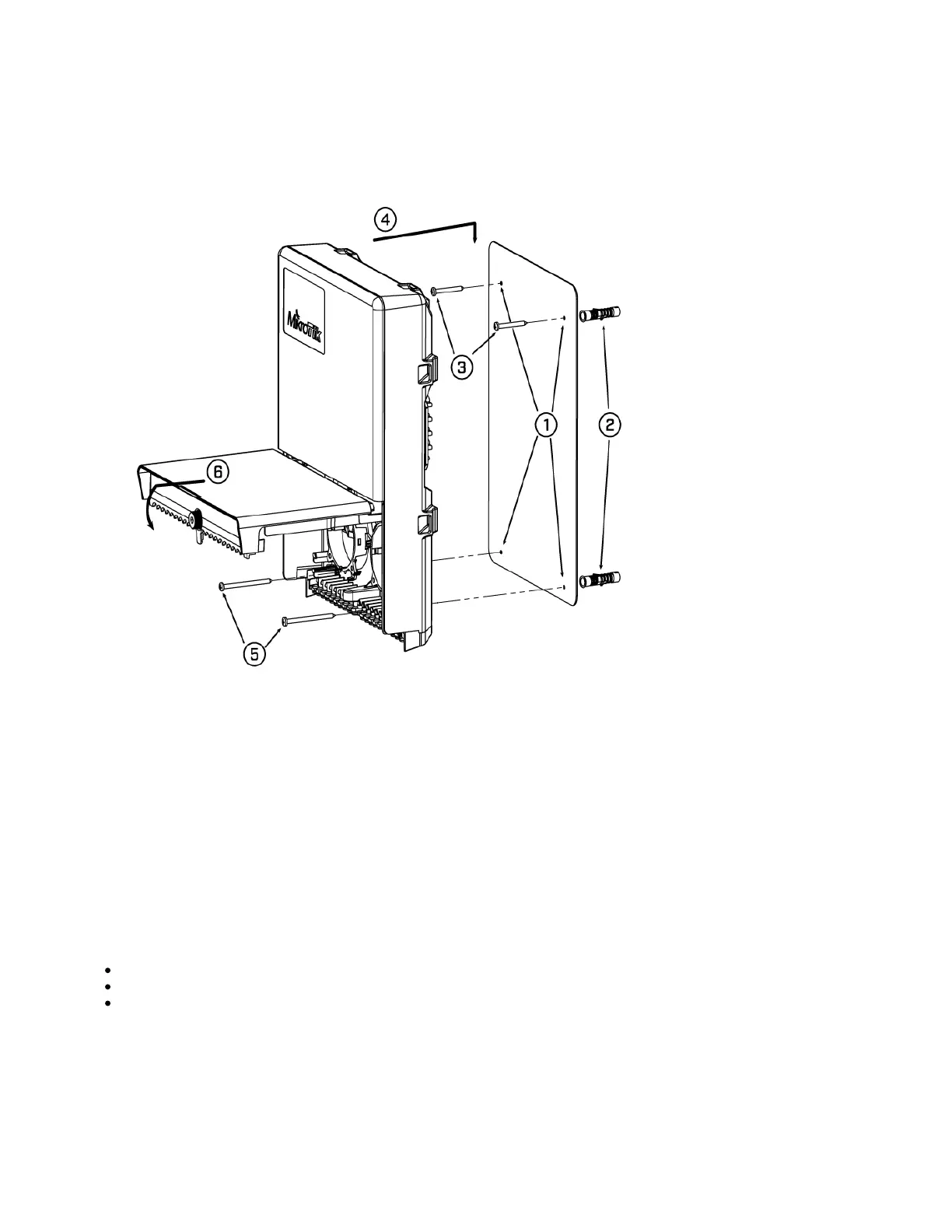

Mounting unit on the wall:
Use included a template to mark spots for drilling holes. Align accordingly, it will depend on how the device will be mounted finally.
Insert dowels if needed, depends on wall structure and material.
Insert screws and screw them by leaving approximately 1 cm out.
Attach the unit to the position.
Use screw holes under the bottom cover and tighten to secure in place. Extend your Ethernet cables through the openings and connect to
Ethernet ports.
Close bottom latch.
Carefully check the wall for electric cables before drilling mounting holes.
Buttons and jumpers
The RouterBOOT reset button has the following functions. Press the button and apply the power, then:
Release the button when green LED starts flashing, to reset RouterOS configuration to defaults.
Release the button when the LED turns solid green to clear all configuration and defaults.
Release the button after LED is no longer lit (~20 seconds) to cause the device to look for Netinstall servers (required for reinstalling RouterOS
over the network).
Regardless of the above option used, the system will load the backup RouterBOOT loader if the button is pressed before power is applied to the device.
Useful for RouterBOOT debugging and recovery.
