RouterBOARD 500 Series User's Manual

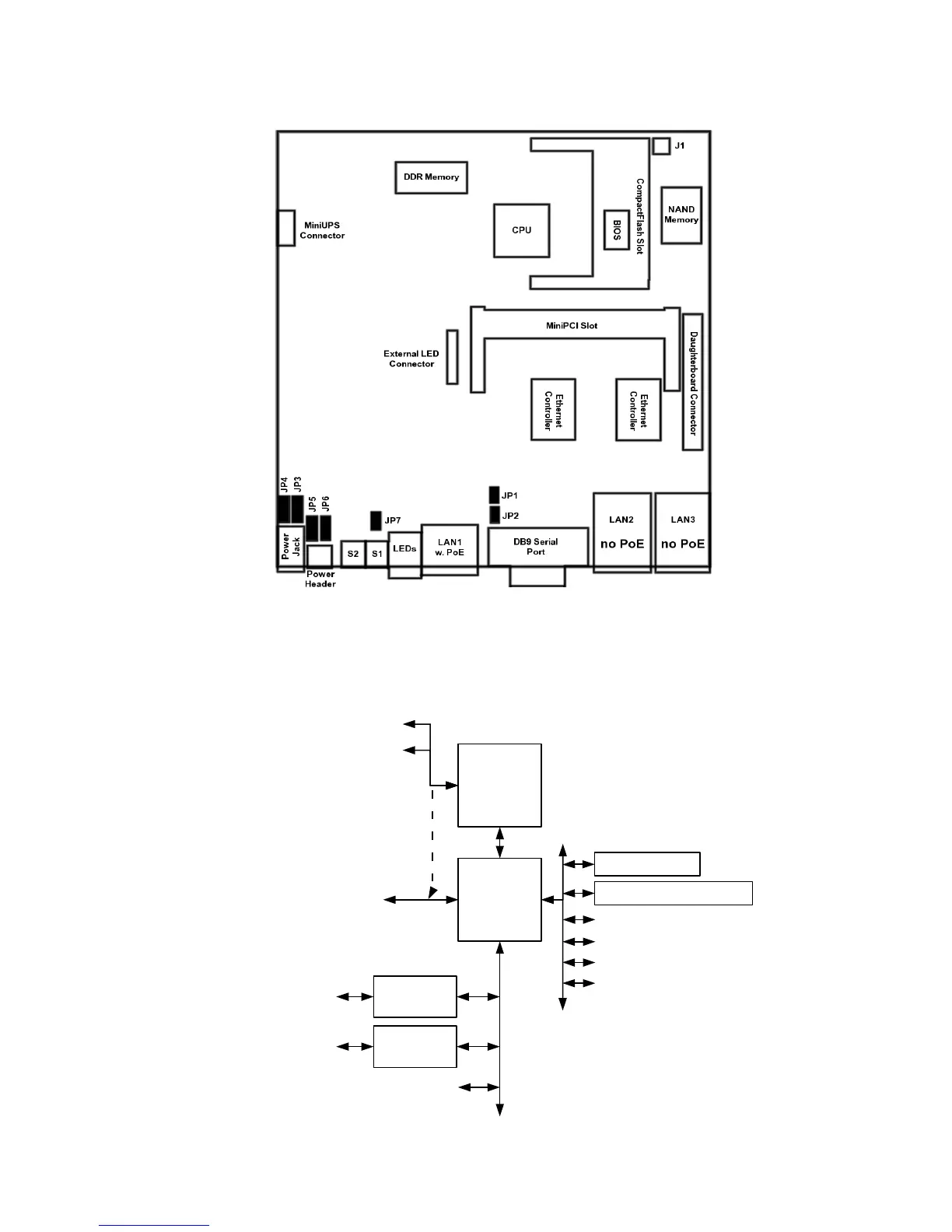

System Board Layout
Note: on the other side of the board, there is only a MiniPCI connector, so no layout diagram shown.
Block Diagram
4
CPU
Onboard RAM
Power
Supply
12/48V PoE
6..22/25..56V power jack
6..22/25..56V power header
GPIO pins
CF connector
Onboard Flash (NAND)
Serial port
User LED
100BaseTX port 1
(with PoE in)
PCI
Ethernet
Controller
100BaseTX port 2
2 MiniPCI slots
Daughterboard
connector
Ethernet
Controller
100BaseTX port 3
