2 3
4
-2-
Tool Holder # (DPHEAD)
Tower #40031
Assembly
56
789
1

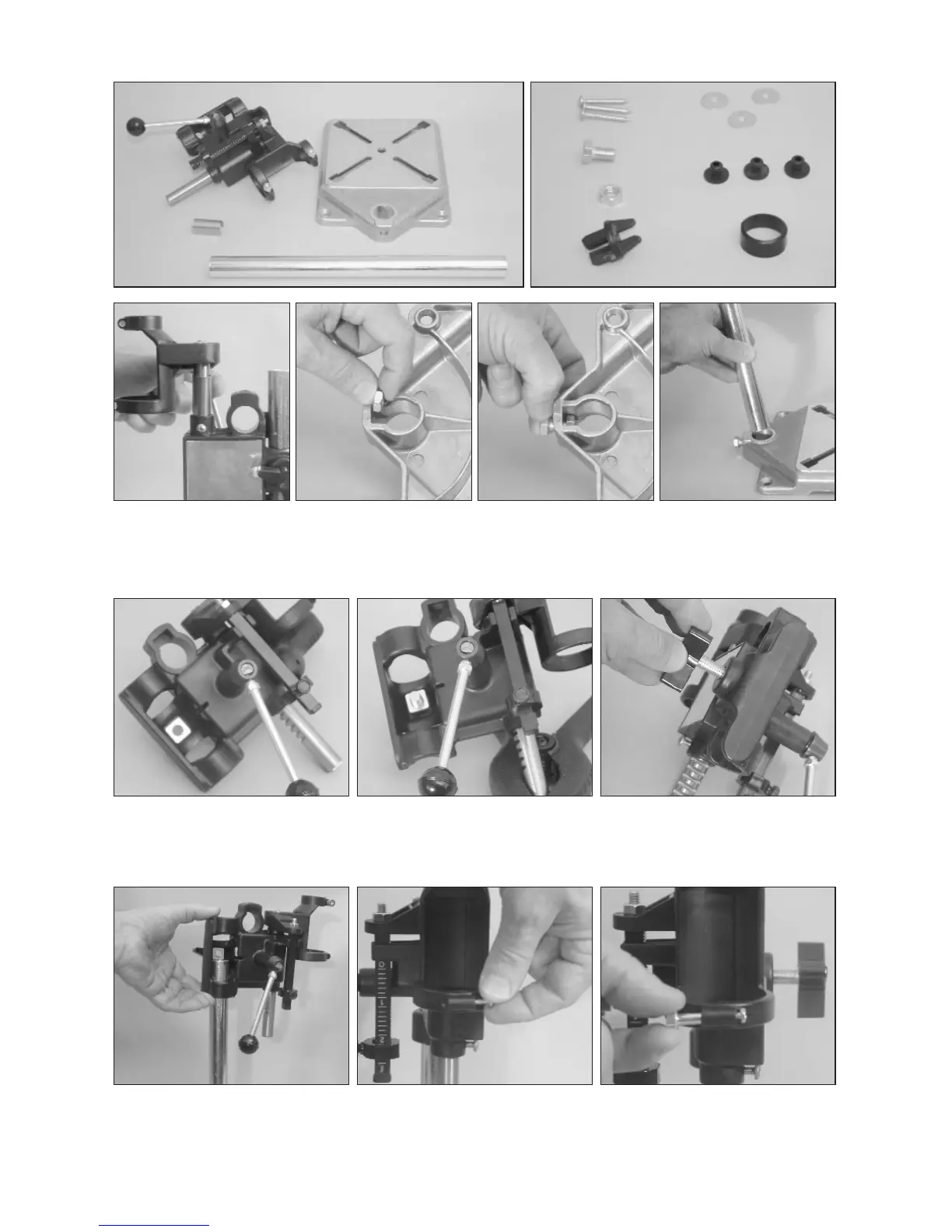

Insert Tower Nut into slot provided on
the underside of the base plate.
Insert Tower into
hole at end of Base
Plate, and tighten
Tower Bolt
Screw Tool Holder
Adjusting Screw into
the Tool Sleeve Nut
Screw Tool Holder
Adjusting Screw inserted
into Tool Sleeve Nut
Insert Tool Sleever Nut into
slot provided on the inside
of the Tower Sleeve.
Slide Tool Holder over Tower
and tighten Adjusting Screw
to hold in place
Insert Tool Strap Bolt into
Tool Strap
Screw Retainer Bolt into
Tool Strap Bolt
Remove stabilizer
sleeve and discard.
(used for
shipping only).
Base Plate #40012
(3) Screws #40351
(3) Washers #40351
Tower bolt #4002
Tower nut #4015
(3) Base grommets #40341
Tower cap #40041 Ring #36130
To Next Page
