Operator's Manual: Millcreek 27+ & 37+ Spreaders
A-12
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
10
15
16
16
11
I-86262
Item # Millcreek Part # Qty. Component Description
1 261843 1 Fines Pan
2 261847 1 Rubber Seal
3 261848 1 Hold Down Plate
4 261844 1 Bracket RH
5 261849 1 Bracket LH
6 261846 1 Lever
7 260998 1 Spacer
8 220171 1 Spring
9 34300 1 3/4 SAE Washer
10 34018 3 3/8 Flat Washer
11 34391 3 3/8 Center Lock Nut
12 34320 4 5/16 x 1-1/4 Carriage Bolt
13 34218 1 3/8 x 1-1/2 Carriage Bolt
14 34190 2 3/8 x 1 Bolt
15 34274 4 5/16 x 3/4 Carriage Bolt
16 34099 8 5/16 Flange Nut

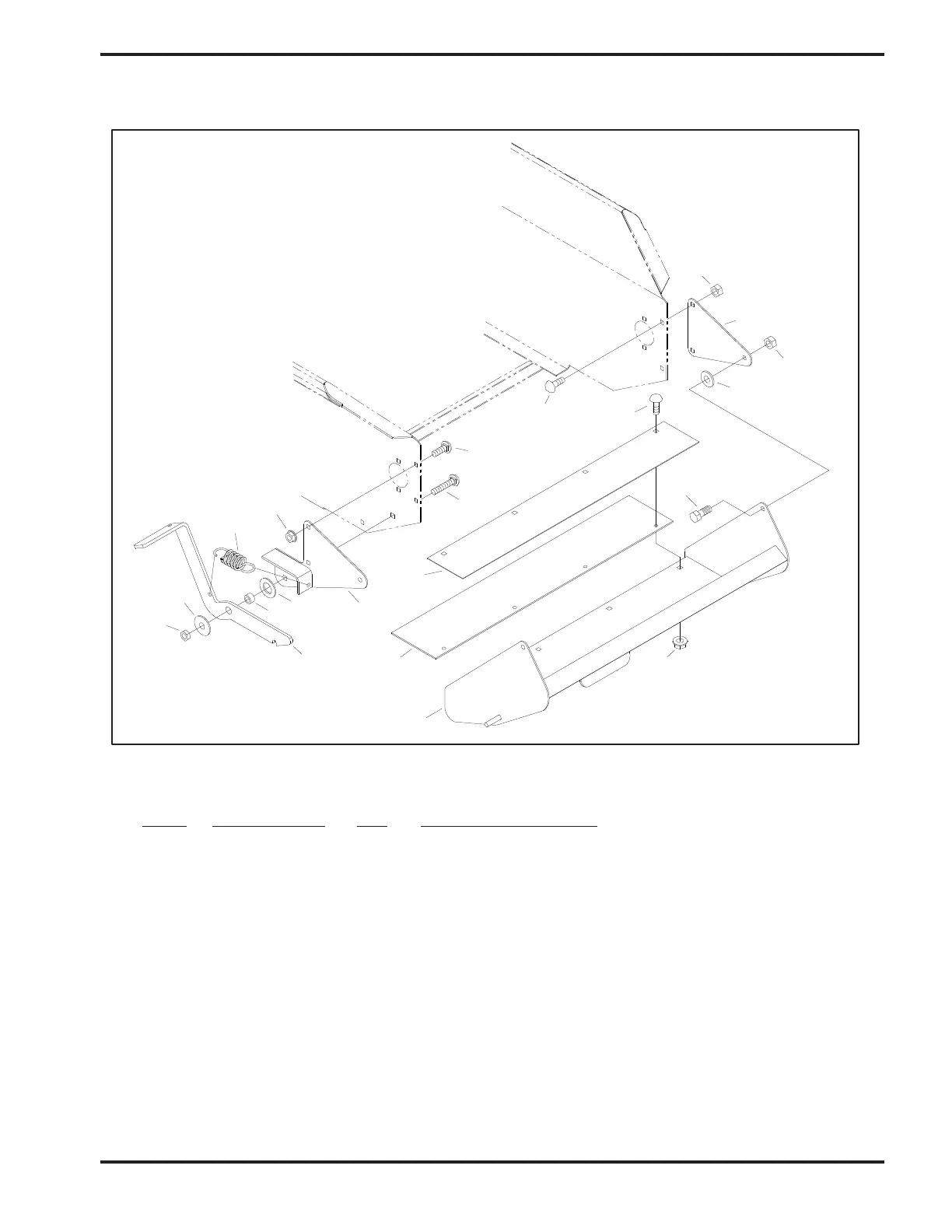

Figure A7 - Fines Pan Parts Detail
Fines Pan
