Operator's Manual: Millcreek 27+ & 37+ Spreaders
A-11
I-86227-A
Manual Endgate

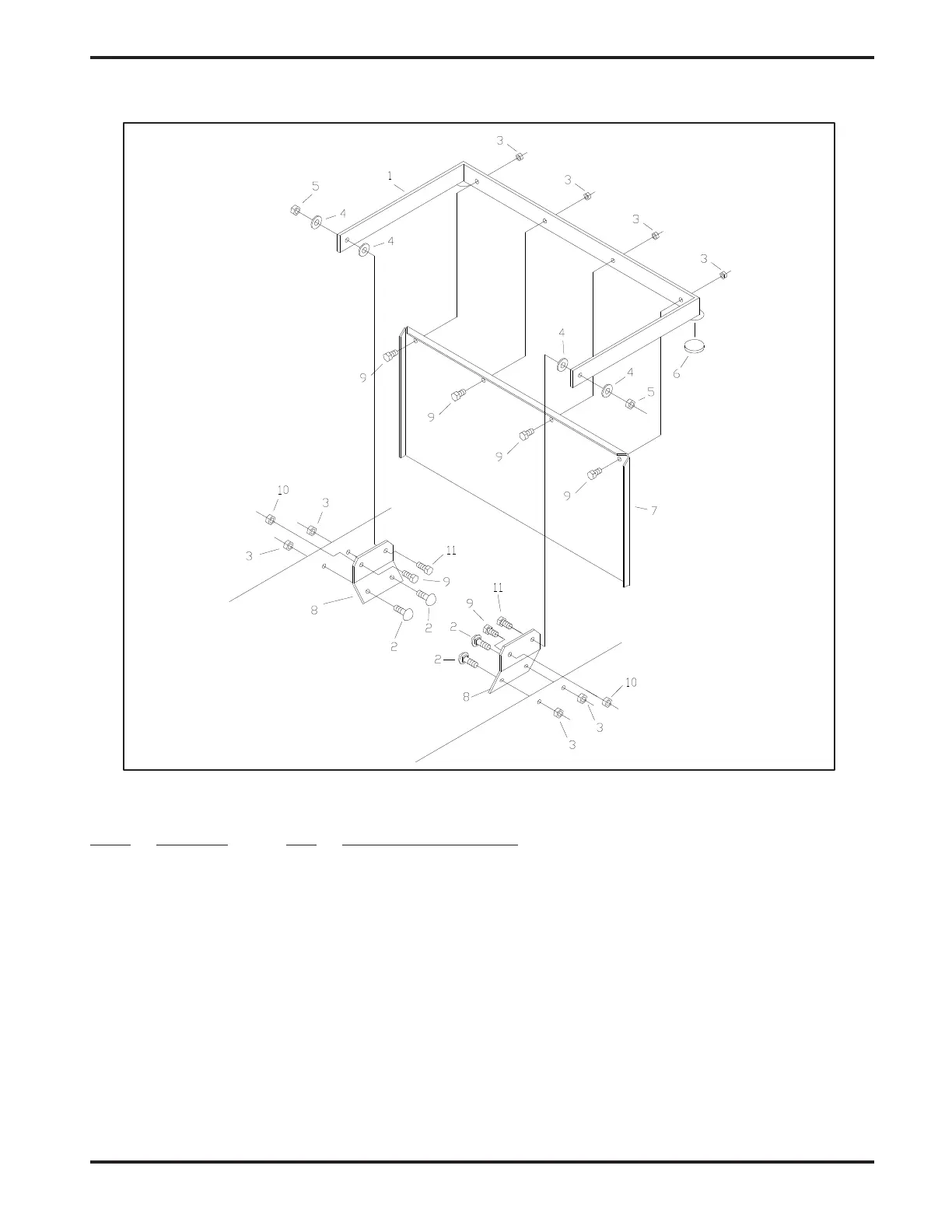

Figure A6 - Manual Endgate Parts Detail
*NOTE: The ENDGATE FRAME must be able to PIVOT for proper operation; DO NOT overtighten the Grade B lock
nut (item #5). Millcreek recommends that you just tighten the lock nut, then loosen 1/4 turn for proper movement.
**NOTE: When replacing the endgate stop pieces, use 2-3 drops of Locktite #480 (or equivalent adhesive).
Item# MC Part # Qty. Component Description
1 261670 1 Endgate Frame
2 34274 4 5/16 x 3/4 Carriage Bolt
3 34099 8 5/16 Flange Nut
4 34057 4 5/16 Washer
5* 34072 2 5/16 Grade B Lock Nut
6** 220192 2 Endgate Stop (rubber foot)
7 260966 1 Endgate
8 261361 2 Endgate Plate
9 34328 6 5/16 x 3/4 Flange Bolt
10 34223 2 5/16 Nylon Stop Nut
11 34336 2 5/16 x 1 Flange Bolt
