Millcreek 27+ - Dollywheel;Jack

Operator's Manual: Millcreek 27+ & 37+ Spreaders
A-10
I-86225
Dollywheel/Jack

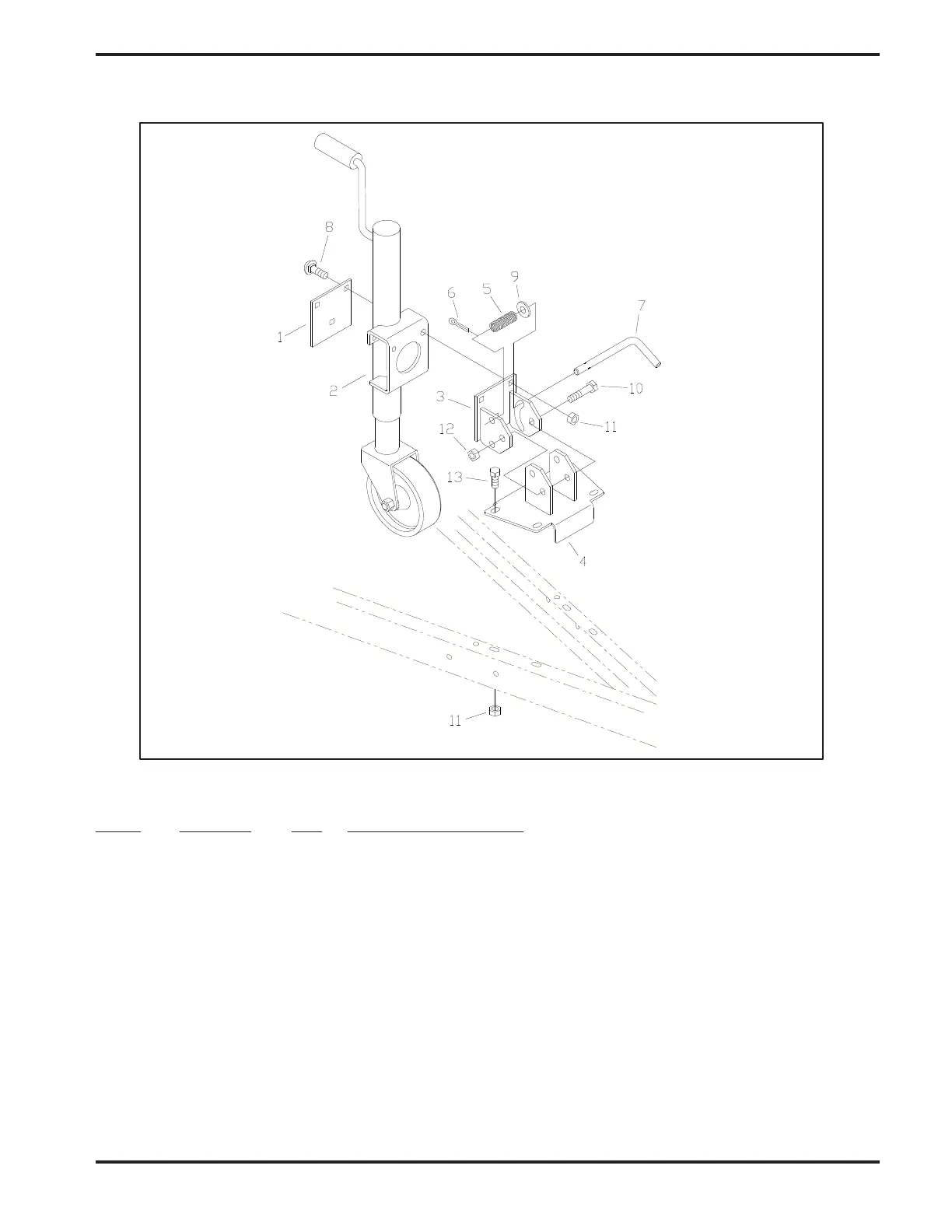

Figure A5 - Dollywheel/Jack Parts Detail
Item # MC Part # Qty. Component Description
1 261630 1 Jack Mount Plate
2 215347 1 Dolly Wheel Jack
3 261635 1 Jack Bracket
4 261636 1 Jack Pivot Bracket
5 220190 1 Spring
6 34209 1 Cotter Pin
7 261631 1 Latch Pin
8 34006 3 3/8 x 1 Carriage Bolt
9 34227 1 1/2 Washer
10 34269 1 1/2 x 4 Bolt
11 34009 7 3/8 Flange Nut
12** 34211 1 1/2 Nylon Lock Nut
13 34330 4 3/8 x 3/4 Flange Bolt
**NOTE: The JACK PIVOT BRACKET must be able to PIVOT for proper operation; DO NOT overtighten the
1/2 Nylon lock nut (item #12). Millcreek recommends that you just tighten the lock nut, then loosen 1/4 turn for
proper movement.
