1 Nine velocity-sensitive and freely programmable drum pads.
When playing a pad, the respective LED below the pad lights up.
2 LED indicators
Light up as soon as external triggers or foot switches are used, which are connected via the input sockets
[TRIG 3/4], [TRIG 1/2], [FS2] and [FS1] on the rear of the device.
3
Main switch. Turns the device on and o.
4 Volume control for headphone output
5 [CLICK]
Button to activate or deactivate the metronome
6 [REC]
Button for starting a recording in recording mode
7 [KIT]
Button to call up the drum kit menu
8 [SETUP]
Button to call up the setup menu
9 LCD display
10
/
Buttons for selecting parameters
11 [OK]
Button for conrming values and parameters in various menus
12 [SELECT]
Button for scrolling through options in various menus
13 Rotary control for quick selection of values and for scrolling through several options in various menus.
14 [–/+]
Buttons for quick selection of values and for scrolling through several options in various menus.
15 [INPUT]
Connection socket for the supplied 9V power adapter.
16 [TRIG 3/4]
Input socket for connecting an external trigger, designed as ¼" jack socket.
The two left [TRIGGER] LEDs on the front of the device light up as soon as a signal is received from the connected
external trigger.

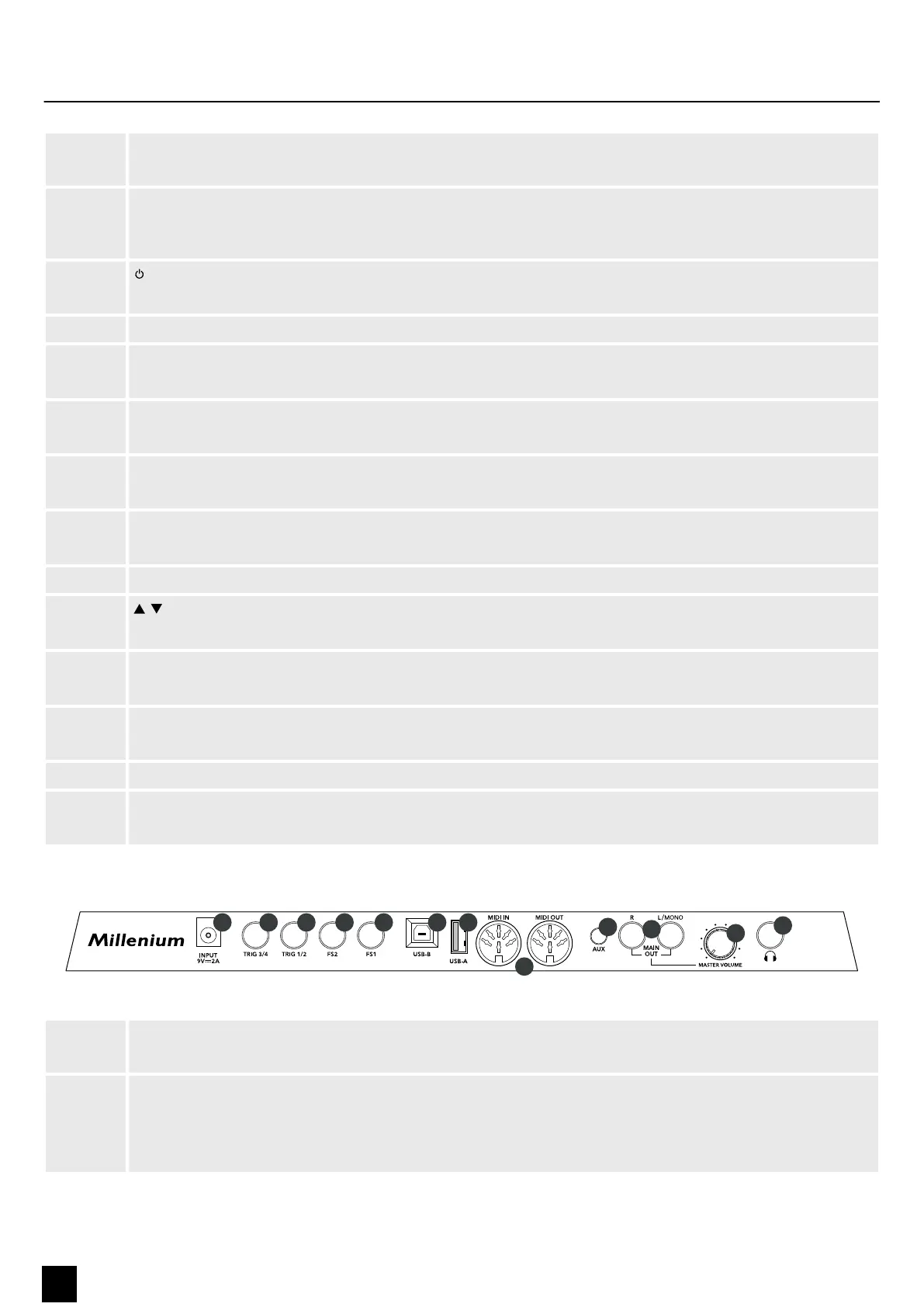

Rear panel
Connections and operating elements
10
NonaPad
Sampling Percussion Pad
