Millipore WP6111560 - Pump Repair and Parts; Replacement Part Kits Overview

PR036484w REV 07/20 6 of 7
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Repair
Two replacement part kits are available for the chemical duty vacuum/pressure pump.

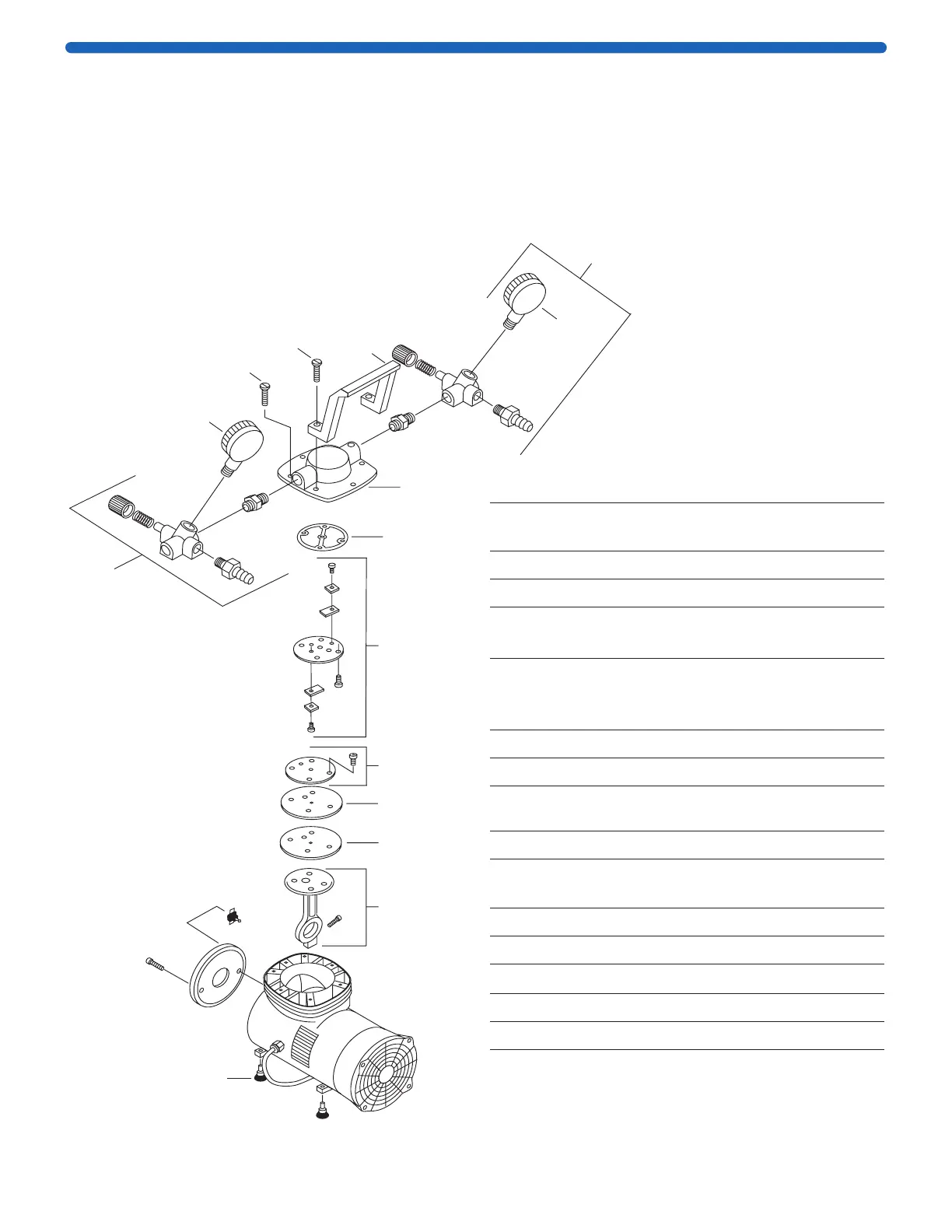

The accompanying drawing outlines the contents of each of the kits. We recommend trained service
technicians perform repairs. For further information and help ordering the correct kit, please contact
Technical Service.
Disconnect the pump from power before performing any maintenance.
Key Description
Maintenance
Kit
Rebuild
Kit
1
Connecting rod
assembly
— —
2
Diaphragm, Buna-N
1 —
3
Diaphragm liner, PTFE
1 —
4
Diaphragm hold-down
plate assembly
— 1
5
Valve plate assembly
(includes flapper
[leaf] valves)
— 1
6
O-ring gasket, head
1 —
7
Pump head
— 1
8
Vacuum regulator
assembly
— —
9
Vacuum gauge
— 1
10
Pressure regulator
assembly
— —
11 Pressure gauge — 1
12 Head screws 4 4
13 Handle screws 2 2
14 Handle — —
15 Rubber suction feet — —
