Milltronics MD-2000A User Manual

ITEM DESCRIPTION QTY.
1Enclosure 1
2 Enclosure Arresting Bracket 1
3 Encoder 1
4 Speed Sensor Card 1
5 Encoder Arresting Bracket 1
6 Bearing Assembly 1
7 Standoff 4
8 Cable Connector 1
9 Hex Bolt, 5/16 - 18 x 3/4 SS 2
10 Screw, 6 - 32 x 5/16 9
11 External Lockwasher #6 9

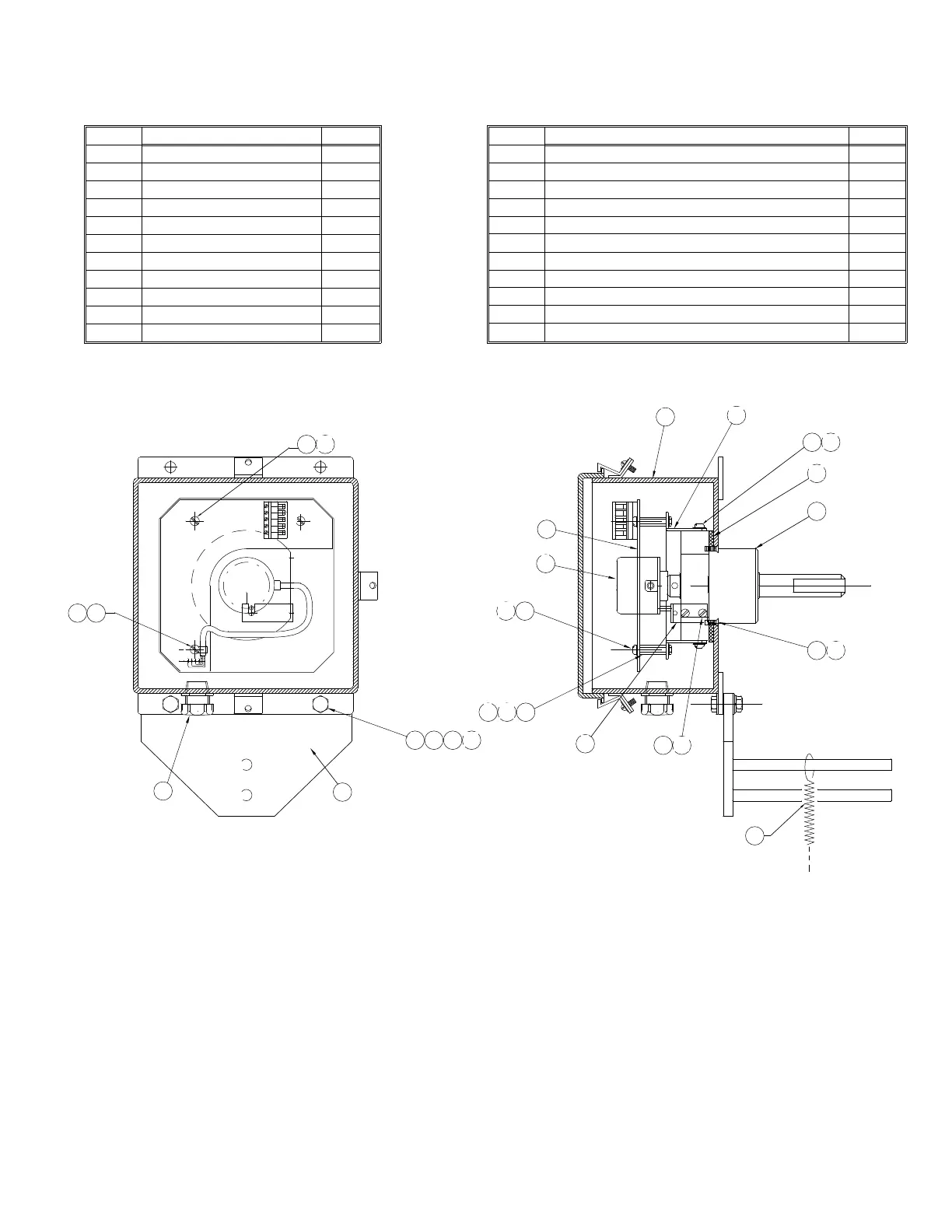

MD - 2000A SS PARTS IDENTIFICATION
COVER NOT SHOWN FOR CLARITY
9 19 20
8
3
2
15
5
10 11
16 17
6
12
10 11
22
21
4
18117
13
14
1110
1
P15 (RED)
CW (WHT)
CCW
(BLU)
GND (GRN)
COM
(BLK)
1
2
3
4
5
10 11
Bearing Assembly Replacement
- turn supply power from integrator off
- open cover
- disconnect wires to terminal block 1TB
- remove speed sensor from mounting
- remove speed sensor card screws #10 & #15 and card #4. Leave encoder cable connected to card.
- remove the four bearing assembly mounting screws #16 located externally around shaft
- pull out bearing assembly #6 c/w card, encoder and mounting brackets
- loosen hex screw in shaft and remove encoder arresting bracket fastening screws #10
- remove encoder #3 and c/w arresting bracket #5
- remove bracket fastening screws #10 and bracket #14 from bearing assembly
- bearing assembly is now free
ITEM DESCRIPTION QTY.
12 Gasket, Bearing Assembly 1
13 Spring Spnr. B-604 1
14 Bracket 1
15 Cable Clamp 1
16 SS Socket Screw 10 - 32 x 1/2 4
17 Lockwasher, Split #10, SS 4
18 Hex Nut, 6 - 32 4
19 Hex Nut, 5/16 - 18, SS 2
20 Split Lockwasher, 5/16, SS 2
21 Flat Washer, 5/16, SS 2
22 Round Screw, Slot, 6-32 1
PL-361 9
