Milltronics MD-2000A User Manual

ITEM DESCRIPTION QTY.
1Enclosure 1
2 Enclosure Arresting Bracket 1
3 Encoder 1
4 Speed Sensor Card 1
5 Encoder Arresting Bracket 1
6 Bearing Assembly 1
7 Standoff 3
8 Threaded Plug, 1/2 NPT 2
9 Hex Bolt, 5/16 - 18 x 1 1/4 2
10 Bind. Screw, 6 - 32 x 5/16 8
11 External Lockwasher #6 8
12 Gasket, Bearing Assembly 1
13 Gasket, Cover 1

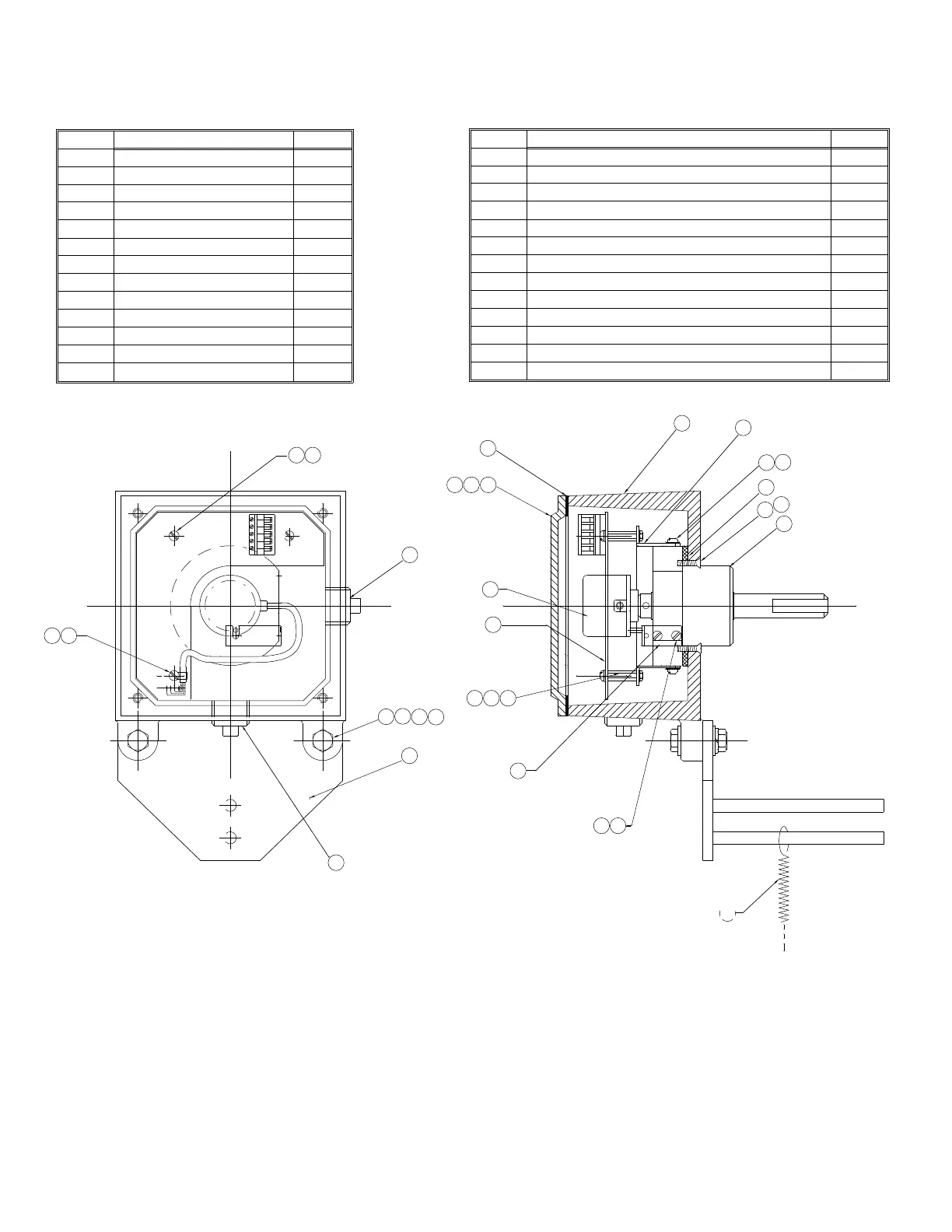

MD - 2000A PARTS IDENTIFICATION
P15 (RED)
CW (WHT)
CCW
(BLU)
GND (GRN)
COM
(BLK)
1
2
3
4
5
22
9
6
21
20
12
10
11
15
1
13
17 18 19
3
4
7
11
5
1011
8
2
23
24
25
8
1110
26
16
14
COVER NOT SHOWN FOR CLARITY
Bearing Assembly Replacement
- turn supply power from integrator off
- remove cover #18
- disconnect wires to terminal block 1TB
- remove speed sensor from mounting
- remove speed sensor card screws #10 & #26 and card #4. Leave encoder cable connected to card.
- remove the four bearing assembly mounting screws #20 located externally around shaft
- pull out bearing assembly #6 c/w card, encoder and mounting brackets
- loosen hex screw in shaft and remove encoder arresting bracket fastening screws #10
- remove encoder #3 and c/w arresting bracket #5
- remove bracket fastening screws #10 and bracket #15 from bearing assembly
- bearing assembly is now free
ITEM DESCRIPTION QTY.
14 Spring Spnr. B-604 1
15 Bracket 1
16 Cable Clamp 1
17 Round Head Screw 1/4 - 20 x 3/4 4
18 Enclosure Cover 1
19 Lockwasher, 1/4" 4
20 Flat Screw, Socket, 10 - 32 x 3/4 4
21 Lockwasher, Cntrsnk tooth #10 4
22 Hex Nut, 6 - 32 3
23 Hex Nut, 5/16 - 18 2
24 Split Lockwasher, 5/16 2
25 Flat Washer, 5/16 2
26 Round Screw, Slot, 6 - 32 x 3/8 2
PL-361 8
