Milltronics MD-2000A User Manual

A
A.254mm(.010")
arresting bracket (by Milltronics)
shorten if required, refer to cross
section ‘B-B’
64 mm
(2.5")
5/16-18 UNC
set screw, note 3
( by customer )
pulley
shaft
25 mm
(1")
DETAIL ’A’
see DETAIL ’A’
and note 3
16 mm (.630")
16.07 mm( .633" )
DIA.
angle iron
(by customer)
’B’
’B’
angle iron
127 mm
(5") approx.
secure with
hook or bolt
anti-rotation spring
CROSS SECTION ’B-B’
arresting bracket

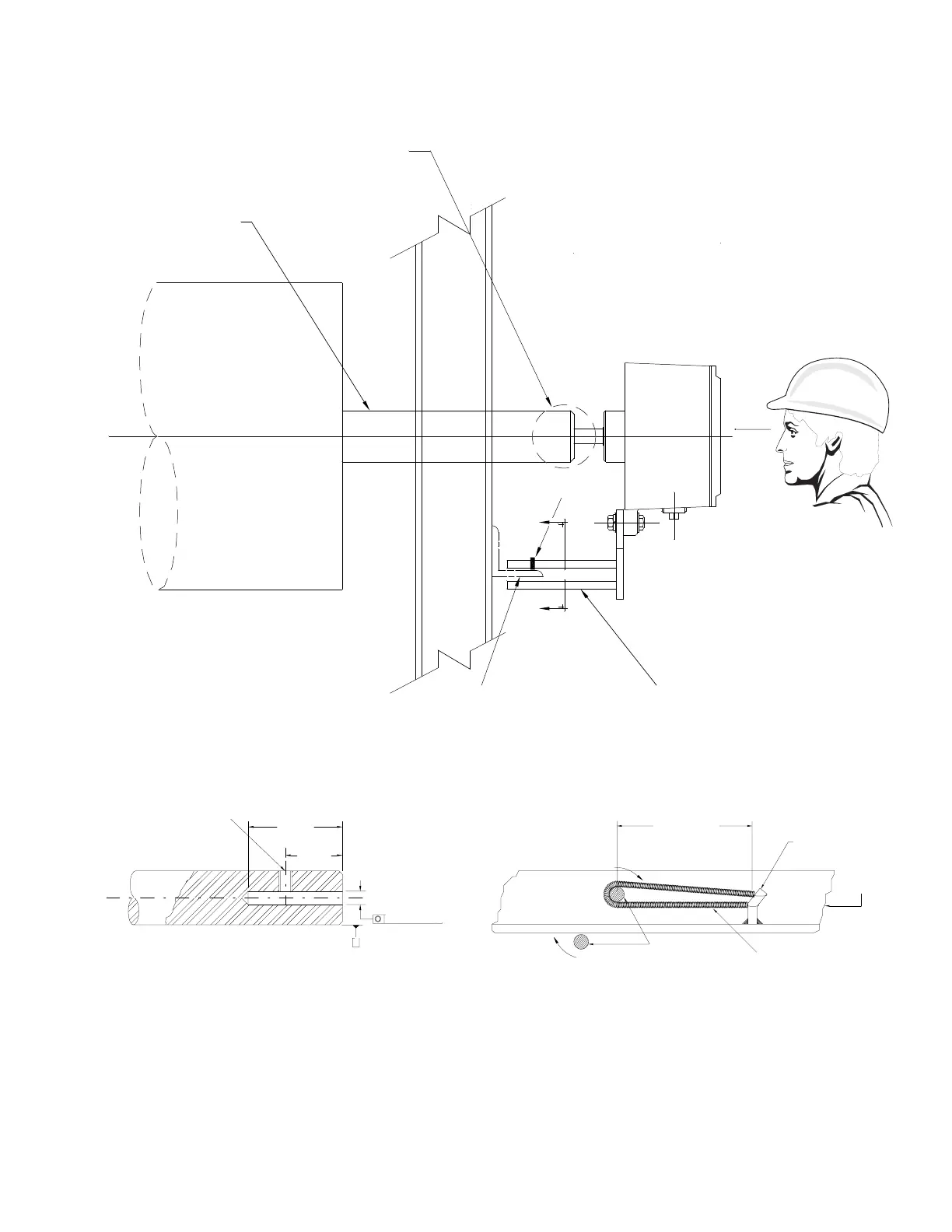

MD - 2000A SERIES PULLEY MOUNTING
MD-2000A
or
MD-2000A SS
spring
NOTE :
1. Machining on tail pulley shaft per Detail ’A’ (by customer) to accomodate Milltronics speed sensor .
2. Arresting bracket is an anti-rotation device only and must not secure or support the speed sensor. Bearing life would
be greatly reduced if speed sensor is not free to "float". Use anti-rotation spring to prevent mechanical oscillation of
speed sensor.
3. Grease mating surfaces to prevent seizing.
View for
direction
of rotation
PL-361 7
