POWER CONNECTIONS
AC Power
The equipment must be protected by a 15 A fuse or
circuit breaker in the building installation.
A circuit breaker or switch in the building installation, marked
as the disconnect switch, shall be in close proximity to the
equipment and within easy reach of the operator.
DC Power

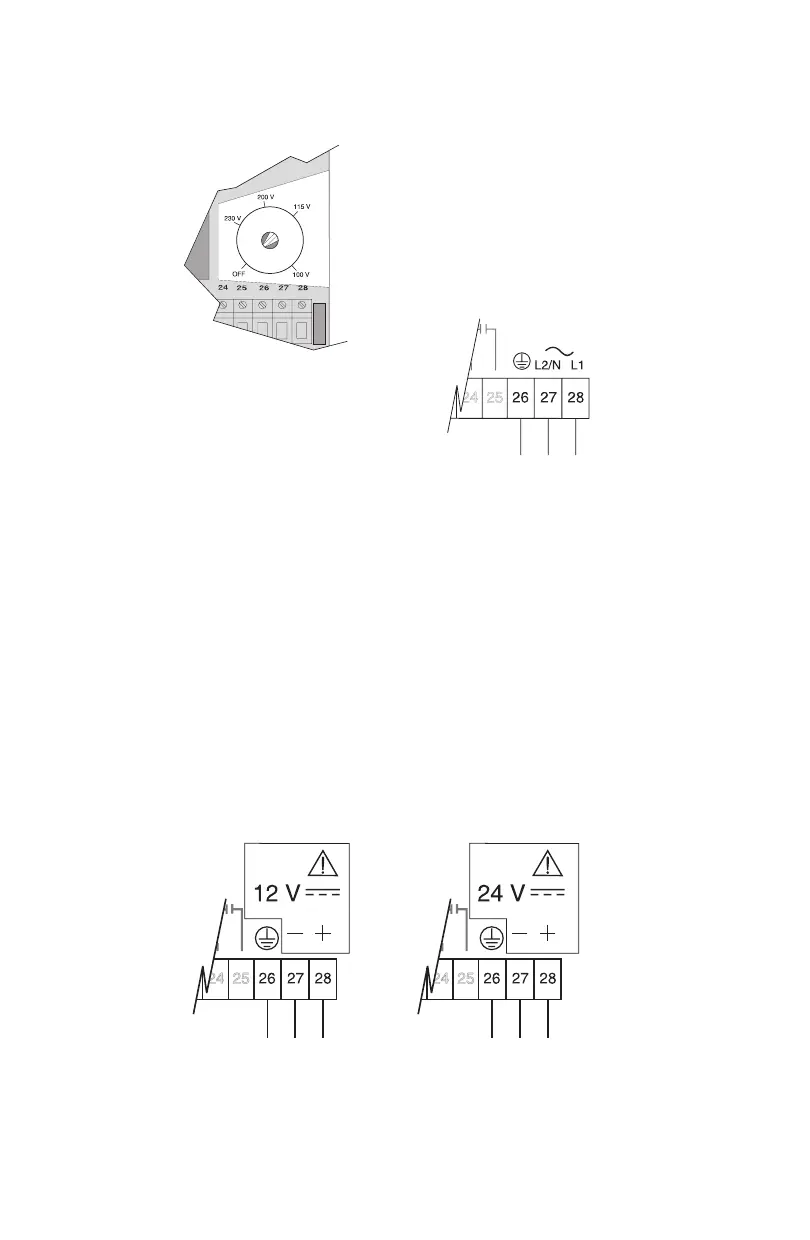

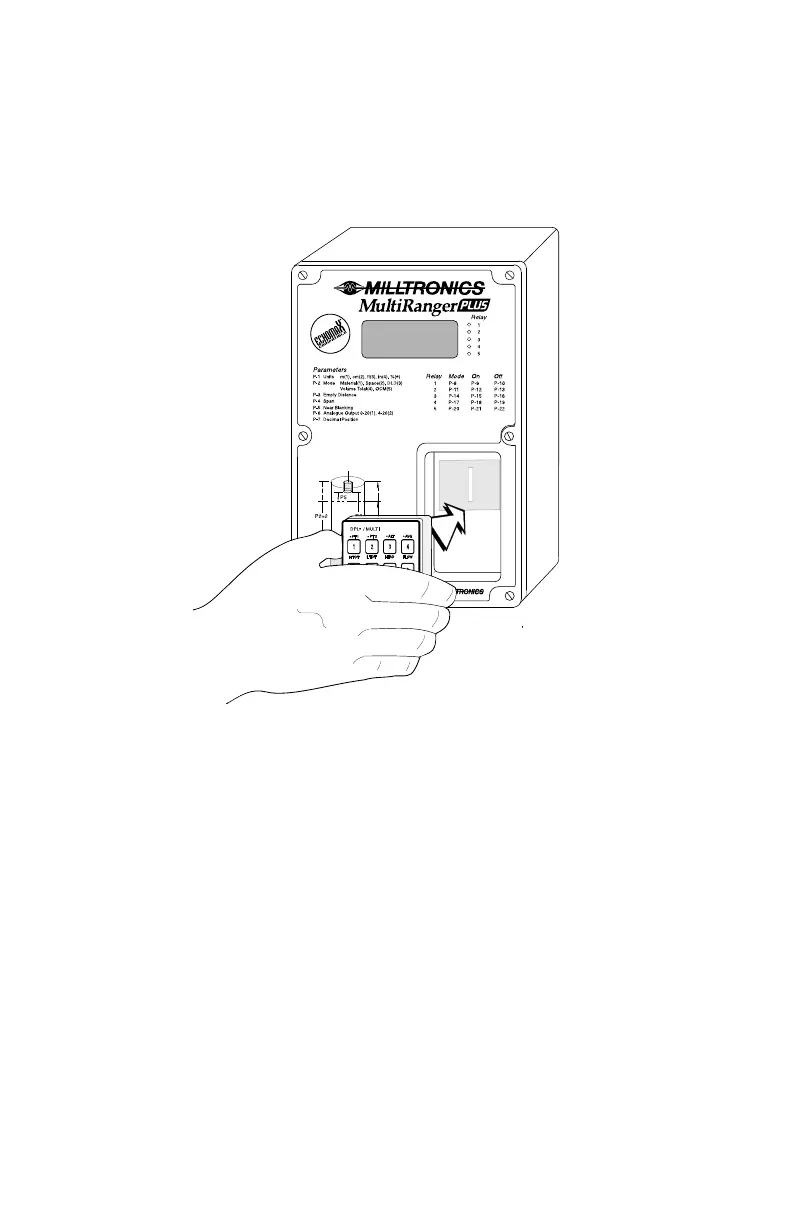

Ground MultiRanger Plus (ac Power) via terminal 26 to proper
earth / ground. Ground dc model as required.
100 / 115 / 200 / 230 V
50 / 60 Hz 15 VA
select voltage via switch
12 V dc Model
10 to 15 V dc
24 V dc Model
18 to 30 V dc
VOLTAGE
SELECT
Switch shown in the ‘OFF’ position.
Select appropriate voltage.
PL-513 18
