LEGEND

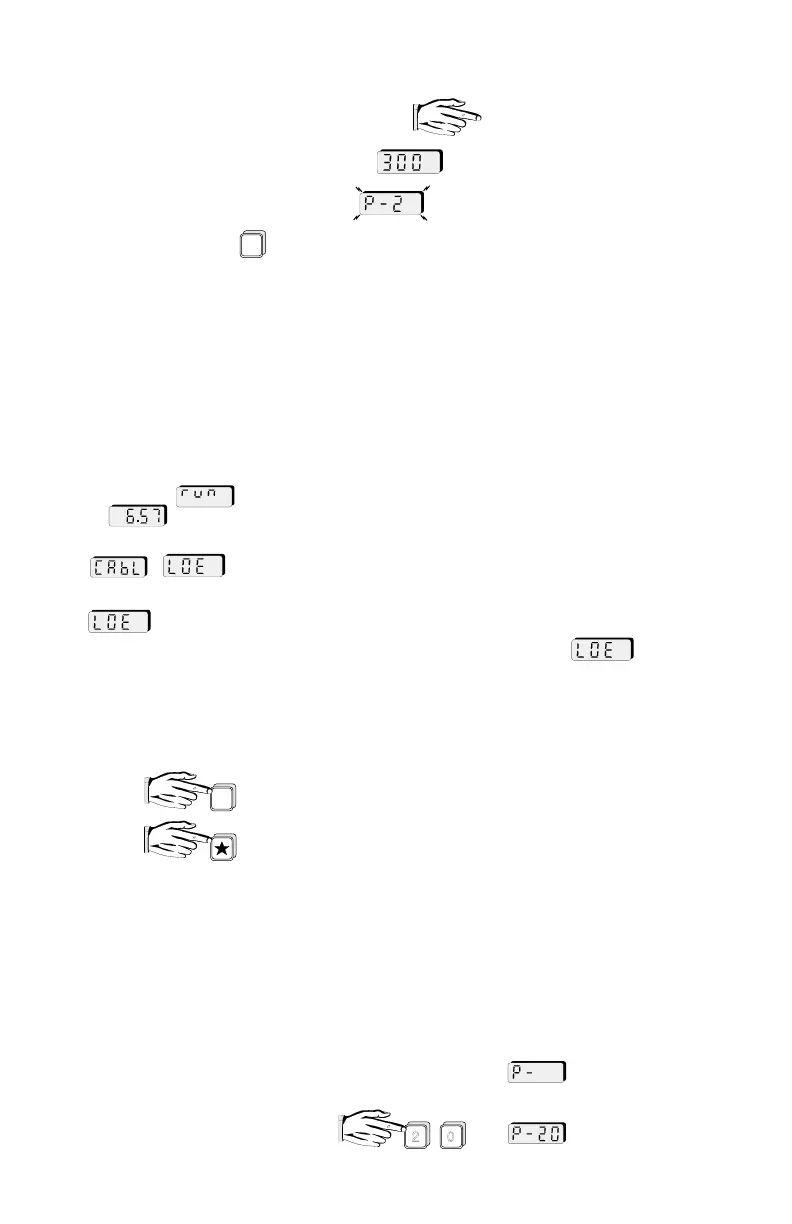

Press the associated key on programmer:
Display shown on MultiRanger Plus:
Display appears for a short time:
Programmer key:
PARAMETER ENTRY
Initial start up

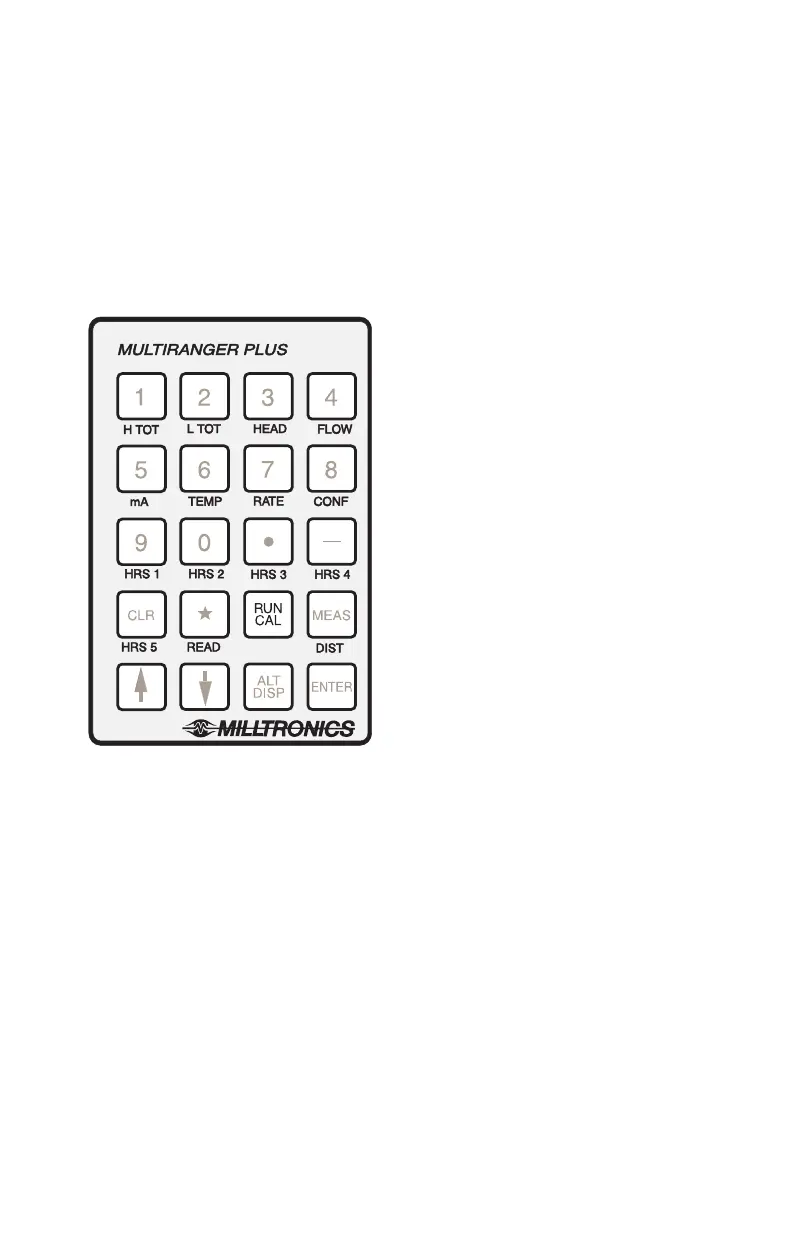

All entries are made via the programmer keypad. All programmers are
interchangeable, thus any programmer can be used in conjunction with any
MultiRanger Plus.
Apply power to the MultiRanger Plus and place the programmer in its front
cover recess. will be momentarily displayed and then a distance reading
e.g. will appear. This is a space or distance reading of up to
approximately 12 m.
If is alternately displayed, an open or short circuited transducer
connection is being indicated.
If is displayed rather than a continuous numeric reading the actual material
distance may be beyond 12 m. Proceed with the programming and if
persists, consult Troubleshooting guide.
To enter Program mode
The user may now program the MultiRanger Plus starting at parameter P-1.
To direct access a parameter:
The display should have a ‘ P- ’ and the number of the currently selected parameter.
Current parameter selection
Select desired parameter.
2 0
??
e.g. select
parameter P-20
ENTER
RUN
CAL
PL-443 4 – 4
To Next Page
