Pellerin Milnor Corporation 33
3.3.2 Lubricant Maintenance for Non-drive Components
BNWBUH01.C09 0000351842 A.6 B.15 A.14 10/19/21 1:55 PM Released

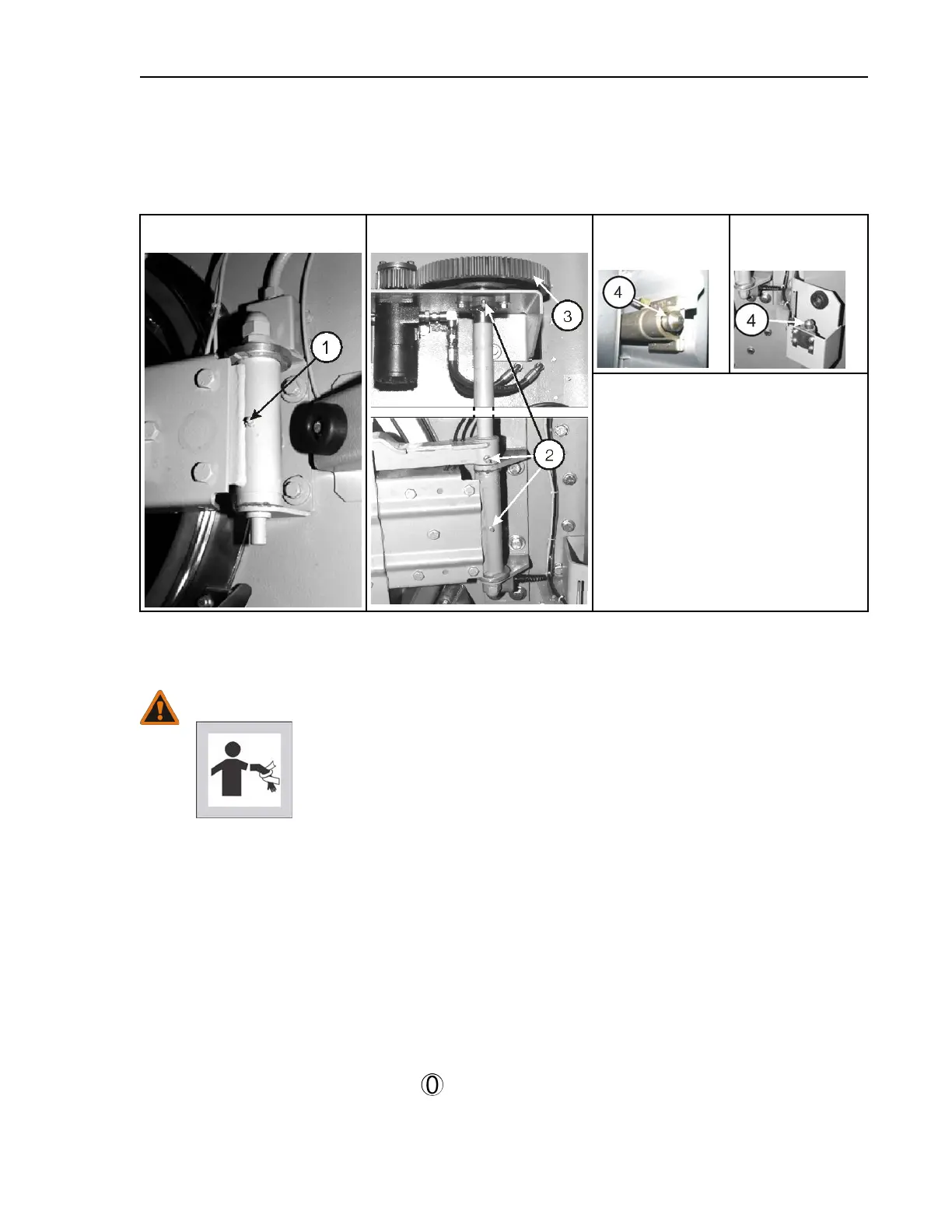

Figure 20. Grease ports for Door—Open Pocket Models. These are examples. Your machine can
look different.
Door Hinge—models with
manual door
Door Rod—models with hy-
draulic door
Door Latch
Plunger—most
models
Door Open
Plunger—some
models
Legend
1...Grease port, one instance. On some
machines, the door must be open
for access.
2...Grease ports, three instances
3...No lubrication necessary
4...Apply a thin film of grease to
plunger surface.
3.3.3 How to Do a Test of the Mechanical Brake
BNWBUH01.T01 0000336193 A.6 B.15 10/13/21 2:40 PM Released
WARNING: A moving cylinder and goods — can crush or sever body parts when a
person reaches in the door to load or unload.
� Do not let the machine operate with a defective mechanical brake.
The disk or band brake holds the cylinder while the operator puts goods in, or removes goods
from the machine. Although the mechanical brake does not usually stop the cylinder during oper-
ation (the second note below tells more), it can do so if an unusual condition occurs. Examples
are when electrical power is removed and when a stop switch is pushed. To make sure the ma-
chine operates safely, do this test at the intervals given in the maintenance schedule:
1. If the machine contains goods, remove them.
2. Start a wash formula. Move forward in the sequence to a drain (see the first note below). You
must do the test when the cylinder turns at drain speed. Wash speed is too slow. Extract speed
will cause deterioration of the brake components that is not necessary.
3. Look at the cylinder through the door glass or site glass.
4. Push the Emergency Stop switch (
). Confirm that the cylinder stops in the time appropriate
for the type of machine:
Routine Maintenance
