Fastener Torque Requirements
PELLERIN MILNOR CORPORATION
Apply threadlocking compound to the thread engagement areas of fasteners and mating threads
only.

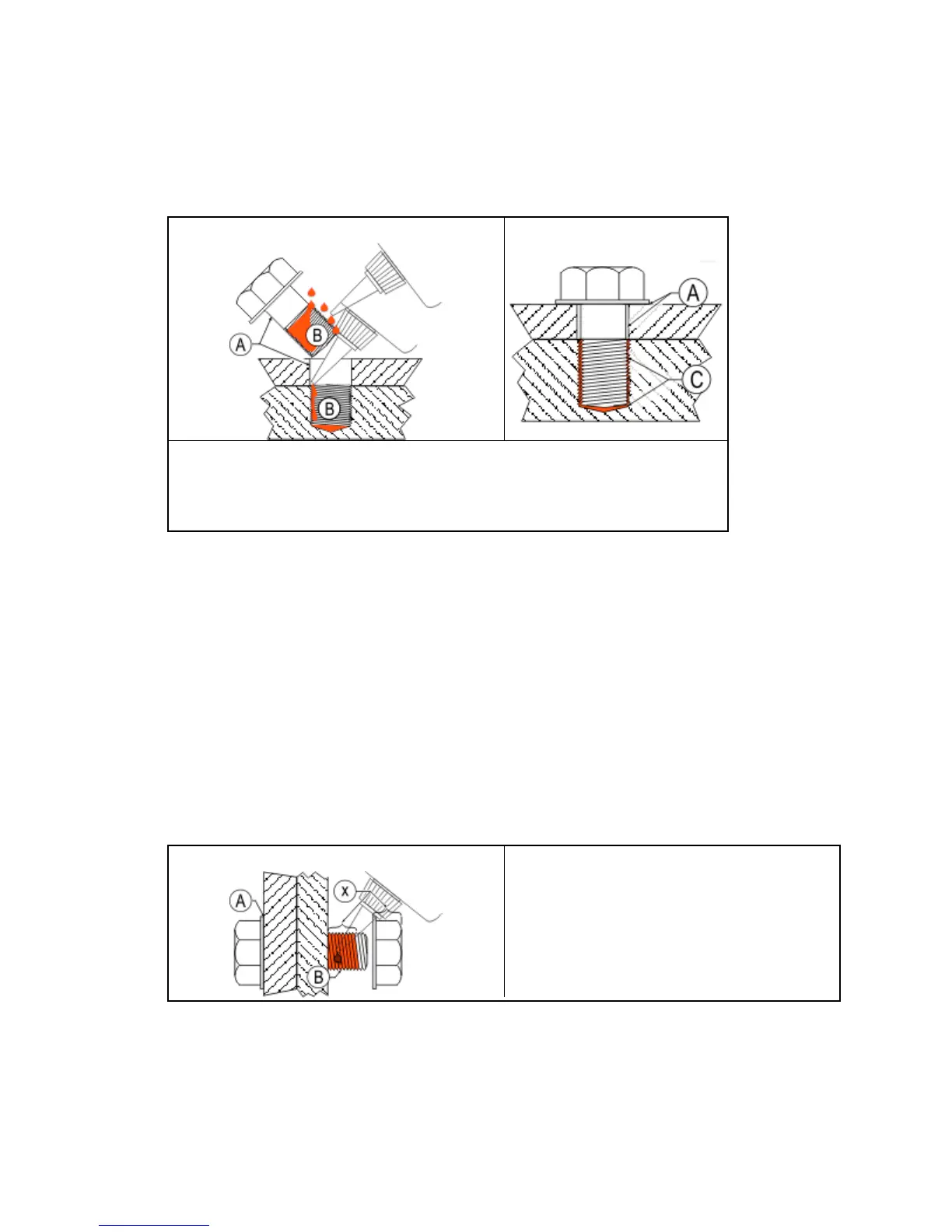

Figure 2: Blind Hole
Application Coverage
Legend
A. No threadlocking compound here
B. Apply here
C. Fill all gaps with threadlocking compound
.
3.1. Blind Holes
1. Apply several drops of threadlocking compound down the female threads to the bottom of the
hole.
2. Apply several drops of threadlocking compound to the bolt.
3. Tighten bolt to value shown in the appropriate table (Table 5 through Table 11).
3.2. Through Holes
1. Insert bolt through assembly.
2. Apply several drops of threadlocking compound to the bolt thread area that will engage the
nut.
3. Tighten bolt to value shown in the appropriate table (Table 5 through Table 11).
Figure 3: Through Hole
Application Legend
.
A. No threadlocking compound here
B. Cover this area
x. Nut depth
3.3. Disassembl
y
—For low-strength and medium-strength products, disassemble with hand tools.
For high-strength products, apply localized heat for five minutes. Disassemble with hand tools
while the parts are still hot.
