Milnor MCR12E5 - Page 54

R
Pellerin Milnor CorporationPellerin Milnor Corporation
P. O. Box 400, Kenner, LA 70063-0400
Litho in U.S.A.
BMP100028/2010316B
(Sheet 1 of 2)

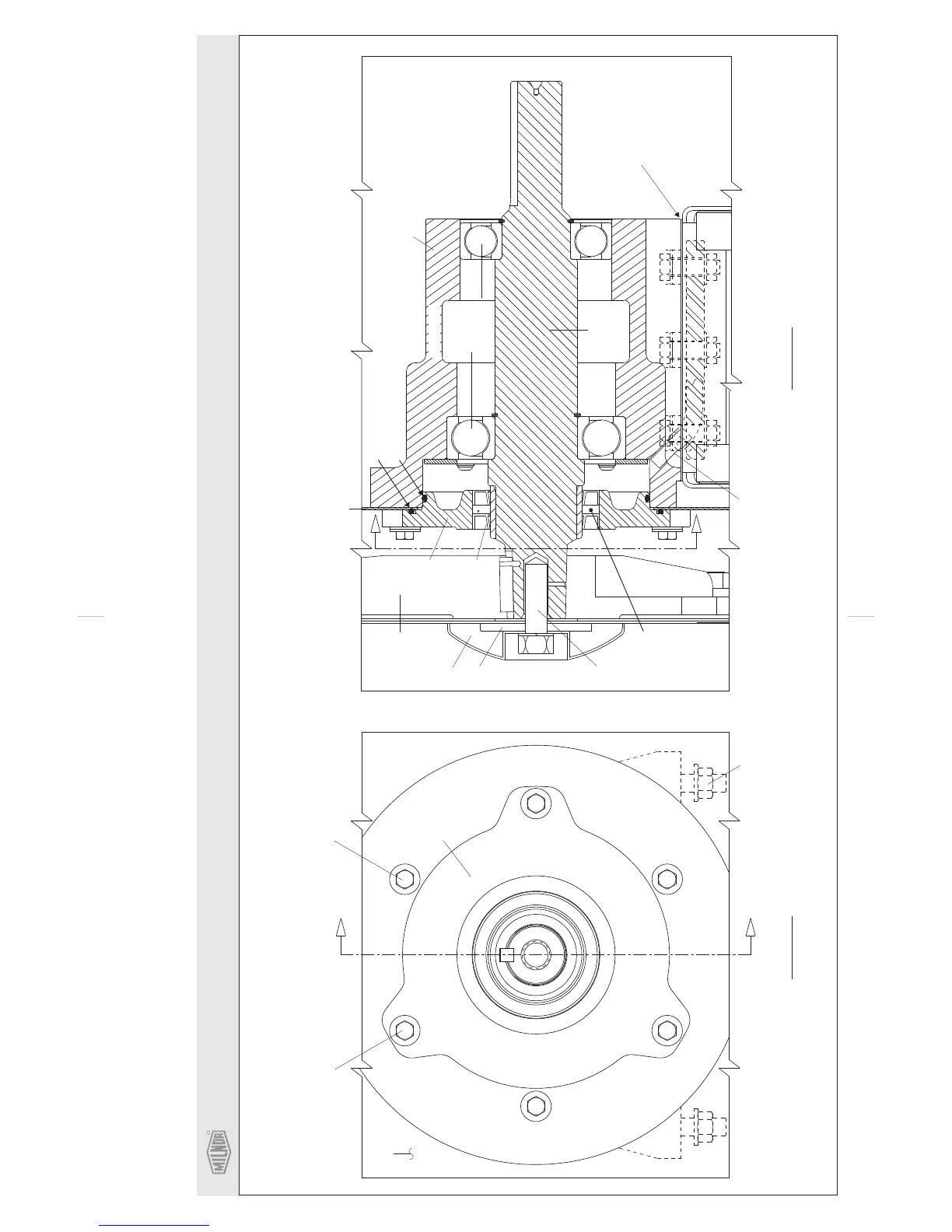

Bearing Assembly & Installation MWR18J6
SHELL BACK
VIEW B-B VIEW A-A
A
A
CYLINDER BACK PLATE
3
1
2
WATER
SEAL
HOLDER
B
SHELL BACK
SHAFT
SEALED
BALL
BEARINGS
B
LEAK OFF
Lubricate the O-rings with the approved grease before installation
4
BEARING
Fully fill the area between the seals with the approved grease
6
WATER SEAL HOLDER
5
7,8,98,9,10
11,12,13
14
15,16,17,18
19 20 21 22
23
