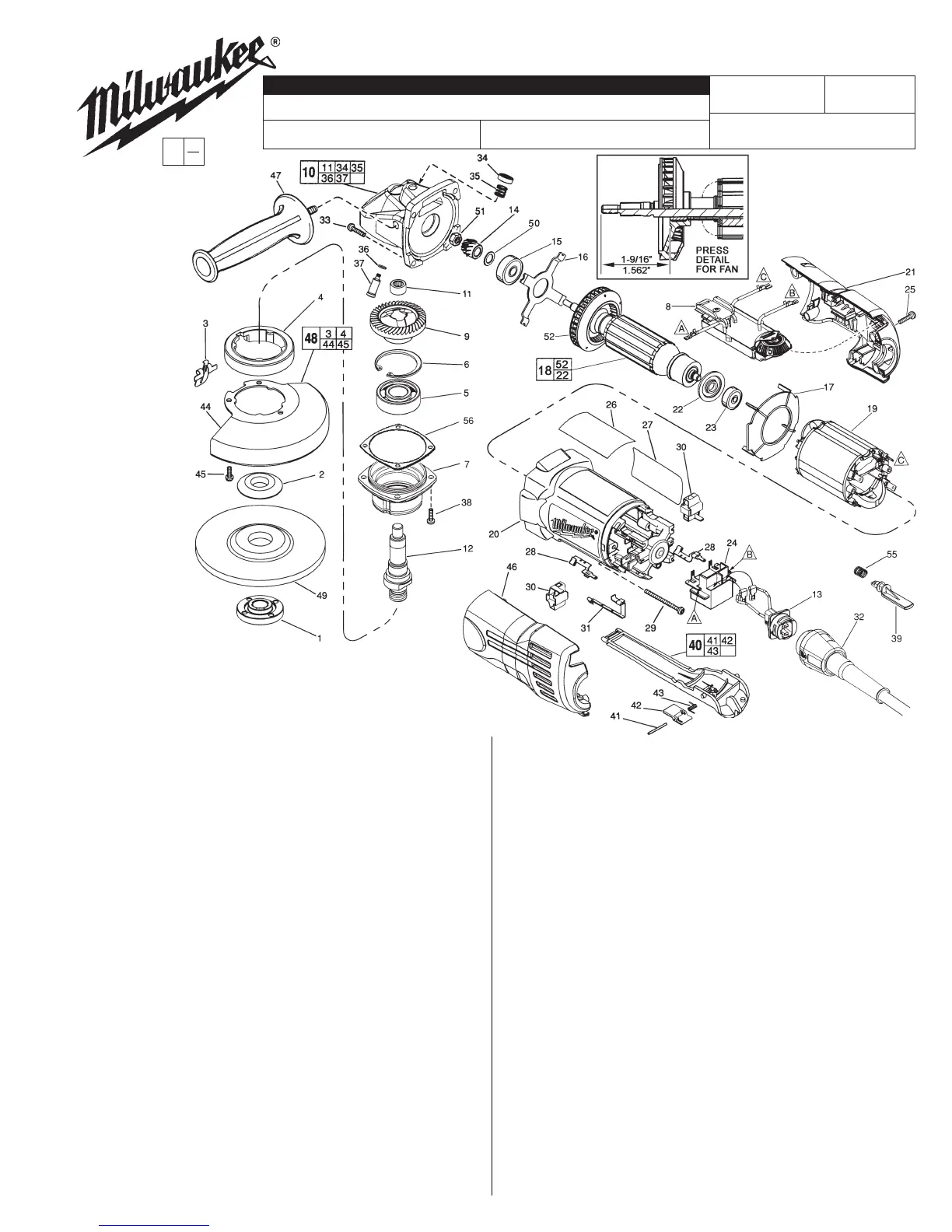

Milwaukee 6148 - Service Parts List; Component Parts Diagram; Parts Description

MILWAUKEE ELECTRIC TOOL CORPORATION
13135 W. Lisbon Road, Brookeld, WI 53005
Drwg. 4
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 49-05-0110 Flange Nut (1)
2 49-05-0125 Flange (1)
3 44-20-0325 Lock Lever (1)
4 45-36-1551 Spacer (1)
5 02-04-1745 Ball Bearing (1)
6 34-80-2960 Retaining Ring - Internal (1)
7 28-52-0222 Spindle Hub (1)
8 14-20-0910 Module Assembly (1)
9 32-05-1310 P.M. Gear (1)
10 28-14-0705 Gear Case Assembly (1)
11 02-50-2423 Needle Bearing (1)
12 38-50-5212 Spindle (1)
13 22-56-0890 Blade Housing Assembly (1)
14 32-60-1310 Pinion Gear (1)
15 02-04-0852 Ball Bearing (1)
16 44-66-5345 Bearing Retainer Plate (1)
17 42-14-0400 Baffle (1)
18 16-10-2007 Armature (1)
19 18-10-2005 Field (1)
20 31-50-1125 Motor Housing (1)
21 31-44-0660 Right Cover (1)
22 23-16-0101 Commutator Insulator (1)
23 02-04-2080 Ball Bearing (1)
24 23-66-2401 Switch (1)
25 06-82-7271 6-19 x 7/8" Pan Hd. Plastite T-15 (4)
26 12-20-6207 Service Nameplate Kit (1)
27 10-98-7091 Warning Label (1)
28 23-74-1206 Brush Terminal (2)
29 06-82-7421 6-19 x 3-1/4" Pan Hd. Slt. Plast. T-15 (2)
30 22-20-1010 Brush Holder Assy. (Incl. Carbon Brush) (2)
31 23-74-1201 Switch Terminal (1)
32 48-76-5010 Quik-Lok Cord Set (1)
33 06-82-7326 8-16 x 1" Pan Hd. Slt. Plast. T-20 (4)
34 31-12-0205 Cap (1)
35 40-50-8650 Compression Spring (1)
36 34-40-4300 O-Ring (1)
37 44-60-0845 Lock Pin (1)
38 06-82-5316 8-32 x 1/2" Pan Hd. Slt. Tapt. T-20 (4)
39 42-42-0030 Lock On Button (1)
40 31-92-0320 Paddle Assembly (1)
41 06-65-1915 Pin (1)
42 42-42-0390 Lock-Off Button (1)
43 40-50-8750 Torsion Spring (1)
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
44 28-41-1020 Hood (1)
45 06-82-7251 8-16 x 3/8" Pan Hd. Slt. Plast. T-20 (3)
46 31-44-0665 Left Cover (1)
47 49-15-0310 Side Handle (1)
48 49-12-0365 Guard Assembly (1)
49 --------------- 4-1/2" Disc - Select From Catalog (1)
50 45-14-0280 Pinion Shim (1)
51 06-55-3850 10-32 Hex Nut (1)
52 22-84-0960 Fan Assembly (1)
55 40-50-0921 Lock On Spring (1)
56 43-44-1080 Gasket (1)
49-96-7205 Spanner Wrench (1)
FIG. LUBRICATION:
9,14 Type "Y" Grease, No. 49-08-5270, Must Be Applied
To All Gear Teeth.
10 9-12 Grams Type "Y" Grease, No. 49-08-5270.
FIG. NOTES:
7 Position The Spindle Hub With The Side That Has The
Word "Back" Orientated Toward The Rear Of The Tool.
8 Connect Terminals Flagged "A" & "B" On Module Assembly
To The Corresponding Terminals Flagged On The Switch.
Connect The Terminal Flagged "C" On The Module To The
Terminal Flagged "C" On The Field.
11 Press .09" Below Casting Surface With Lettering Readable
After Assembly.
13 Blade Hsg. Leads Are Interchangeable On Switch
Connections.
39,55,46 Assemble Lock On Button And Spring Into The Left Cover.
51 Torque To 25-35 In./Lbs.
6154-20
54-38-3728
907D
4-1/2" DIAL SPEED SUPER MAG GRINDER
EXAMPLE:
Component Parts (Small #) Are
Included When Ordering The
Assembly (Large #).
REVISED BULLETIN
DATE
Nov. 2005
SERVICE PARTS LIST
BULLETIN NO.
WIRING INSTRUCTION
See Below
CATALOG NO.
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS
STARTING
SERIAL NUMBER
0
0
0







54-38-3727


