Milwaukee K900K - Page 2

2
PAGE
4939 5258 01

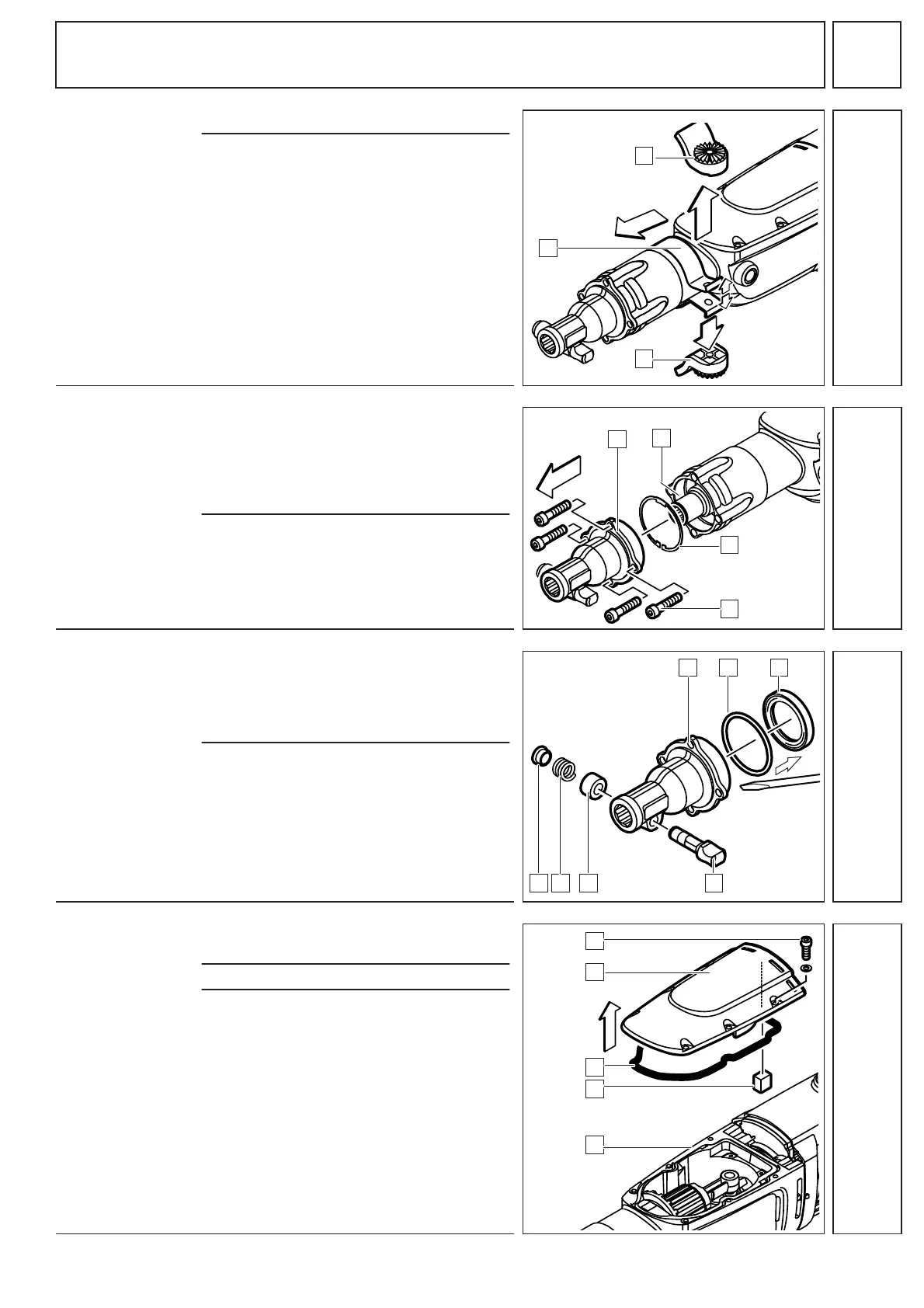

Removing the
spring ring
1
Remove both retainers (1).
2 Slightly spread the spring ring (2) and pull
it off the machine towards the front.
Removing the
tool acceptance
1
Remove the four screws (4) with an Allen
key and remove the tool acceptance (1).
☞
If necessary, tap the tool accept-
ance (1) with a plastic hammer for
support!
2
Remove the seal ring (3) with circlip pliers
from the gear box (2).
Disassembling
the tool
acceptance
1
Expel res. press off the latch bar (7)
and remove the following parts:
– latch (4)
– spring (5)
– sleeve (6).
2
Lever off the seal ring (3) and the
O-ring (2) from the tool acceptance (1)
with a screwdriver.
Disassembling
the gear cover
1
Remove six screws (1) with washers from
the gear cover (2).
2
Remove the felt (4) from the gear cover.
3
Remove the gasket (3) from the groove of
the gear cover (5).
1
1
2
3
4
3
2
1
4
1 2 3
4 5 6 7
5
3
4
1
2
5
6
