Mimosa Backhaul B24 - Page 35

Mimosa Backhaul and B24 Help Content

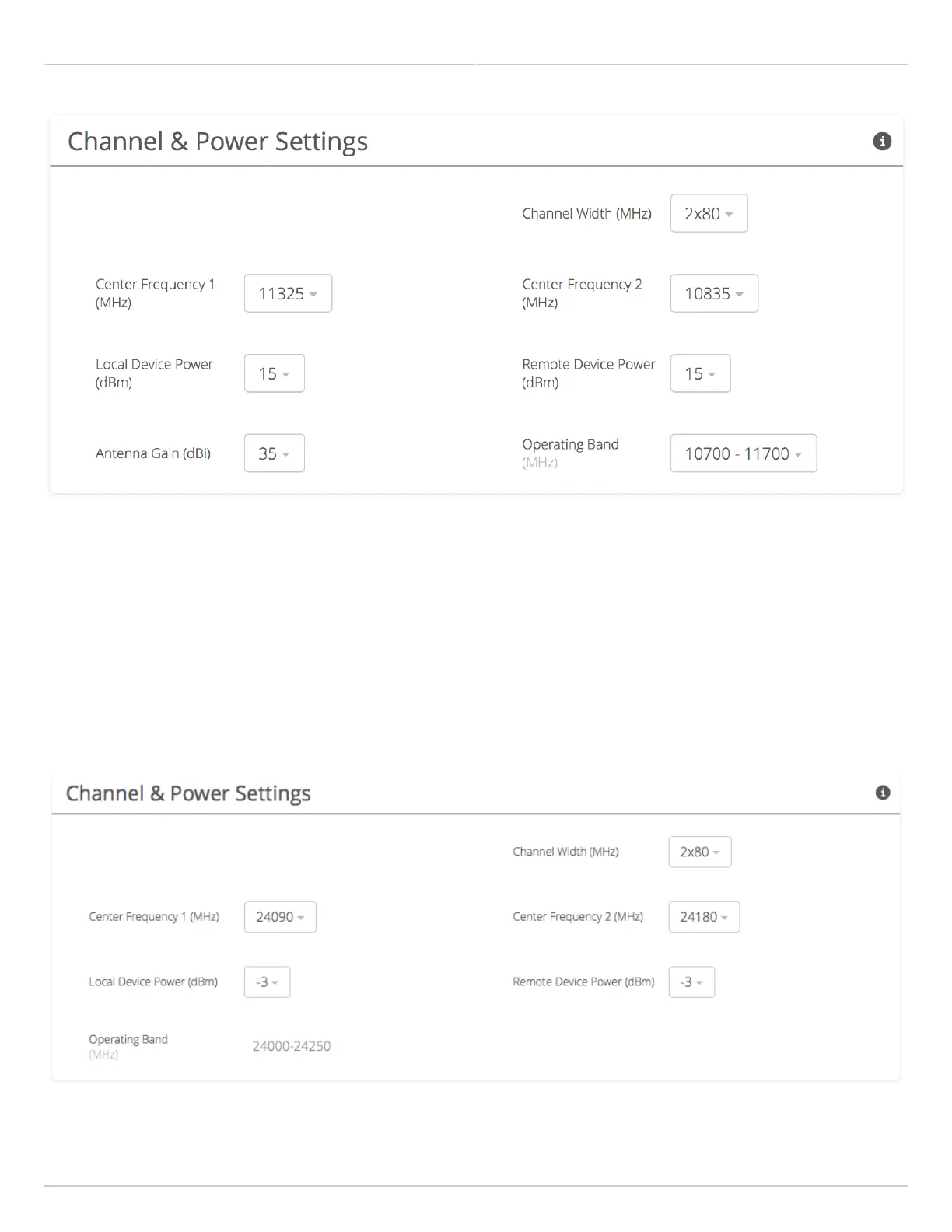

Mimosa Backhaul Channel & Power
Copyright © 2018 Mimosa Page Page 32
Note: Tx power selections may be limited based on your regulatory domain (refer to the Maximum Power chart for
more details).
B24
Channel Width (MHz) - In Manual Mode, choose the channel width (20, 40, or 80 MHz).
●
Center Frequency (1 & 2) - Select the center frequency of the channel used on the link. In all modes, the center
●
frequency represents the absolute center of the selected channel width without any offset, and the center can
be moved in 5 MHz increments.
Local and Remote Device Power - Set the desired transmit power levels on the AP.
●
Operating Band (MHz) - Select the frequency range in which the radio will operate: 24000-24250.
●
Note: Tx power selections may be limited based on your regulatory domain (refer to the Maximum Power chart for
more details).
