Mimosa Backhaul Mounting & Grounding
Copyright © 2018 Mimosa Page Page 1
Mounting and Grounding the B24
Only a shielded, outdoor rated CAT 6 FTP Ethernet cable shall be used with all Mimosa products. Mimosa
Only a shielded, outdoor rated CAT 6 FTP Ethernet cable shall be used with all Mimosa products. Mimosa
will not warrant any product which has been installed without the use of shielded CAT 6 Ethernet cable
will not warrant any product which has been installed without the use of shielded CAT 6 Ethernet cable
and/or proper earth grounding.
and/or proper earth grounding.
This process ensures that the radio is securely attached to a mast/pole up to 90 mm (3.5 inches) in
This process ensures that the radio is securely attached to a mast/pole up to 90 mm (3.5 inches) in
diameter, and grounded to protect against electrical discharge.
diameter, and grounded to protect against electrical discharge.
Follow these steps to mount and ground the B24 Radio.

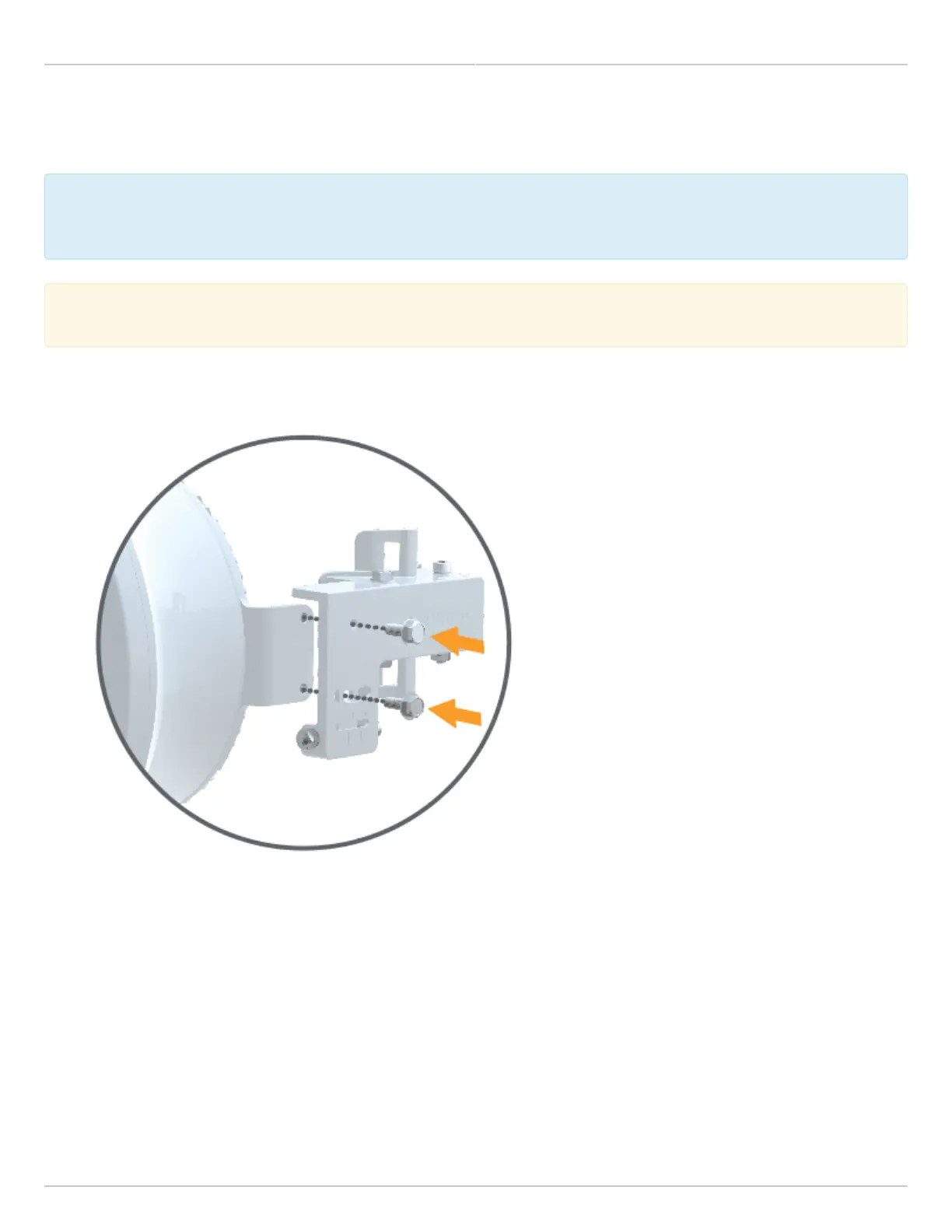

Attach the precision alignment mount to the bracket with the provided bolts.1.
Attach the mount to your desired pole using the provided pole clamps.2.
To Next Page
