Mimosa Backhaul Mounting & Grounding
Copyright © 2018 Mimosa Page Page 2

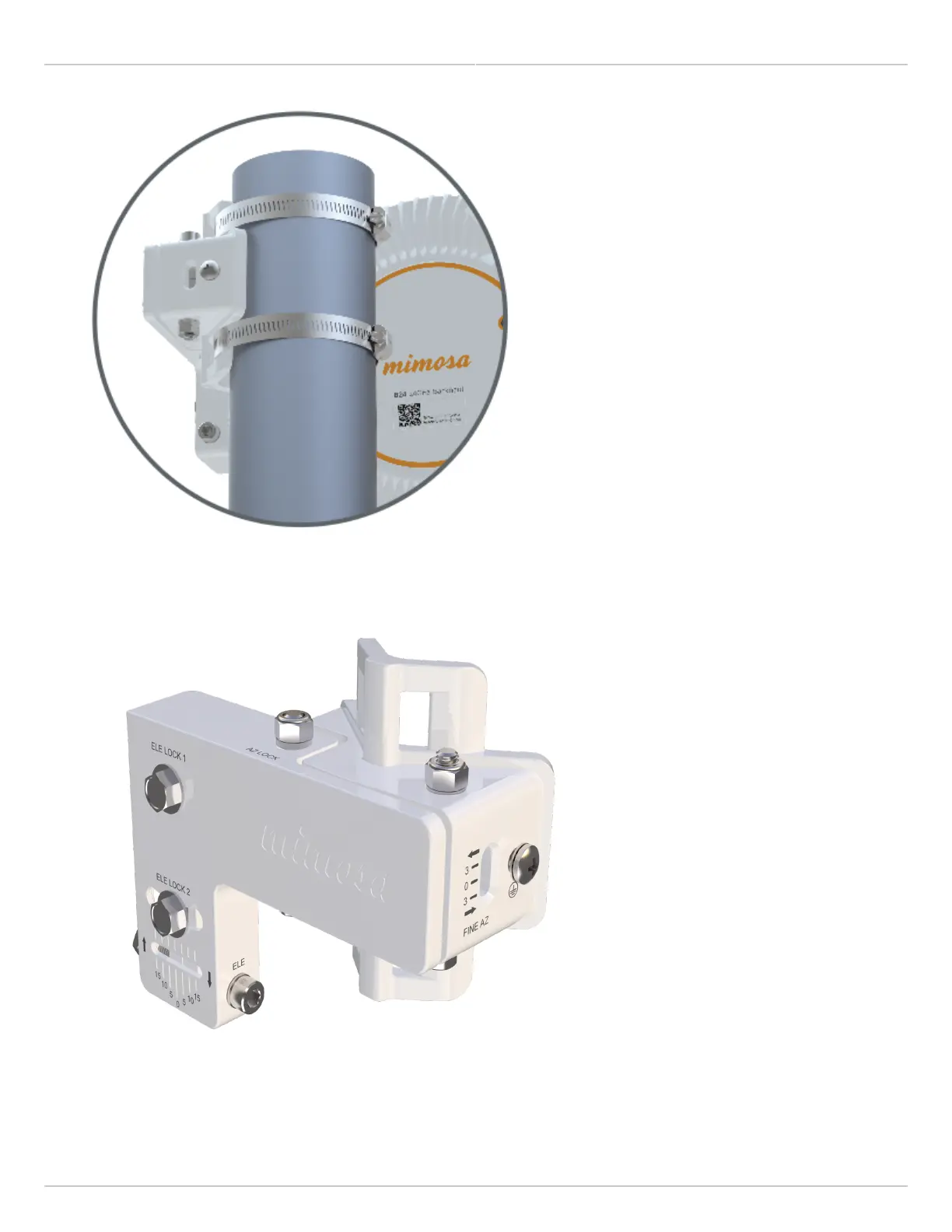

Aim the radio horizontally by sliding the the mount around pole until it is pointing in the desired direction. To3.
fine tune the radio, use the Elevation and Azimuth adjustment allen bolts, then check and tighten each of
Elevation and Azimuth locking bolts.
Attach a 6 mm
2
(10 AWG) ground wire with a maximum length of 1 m (3.3 feet) between the mounting bracket1.
of the B24 and a suitable grounding location on the tower or structure. The provided grounding screw is M5 x
6mm with 0.8 thread.
