Mimosa Backhaul Mounting & Grounding
Copyright © 2014 Mimosa Page 66

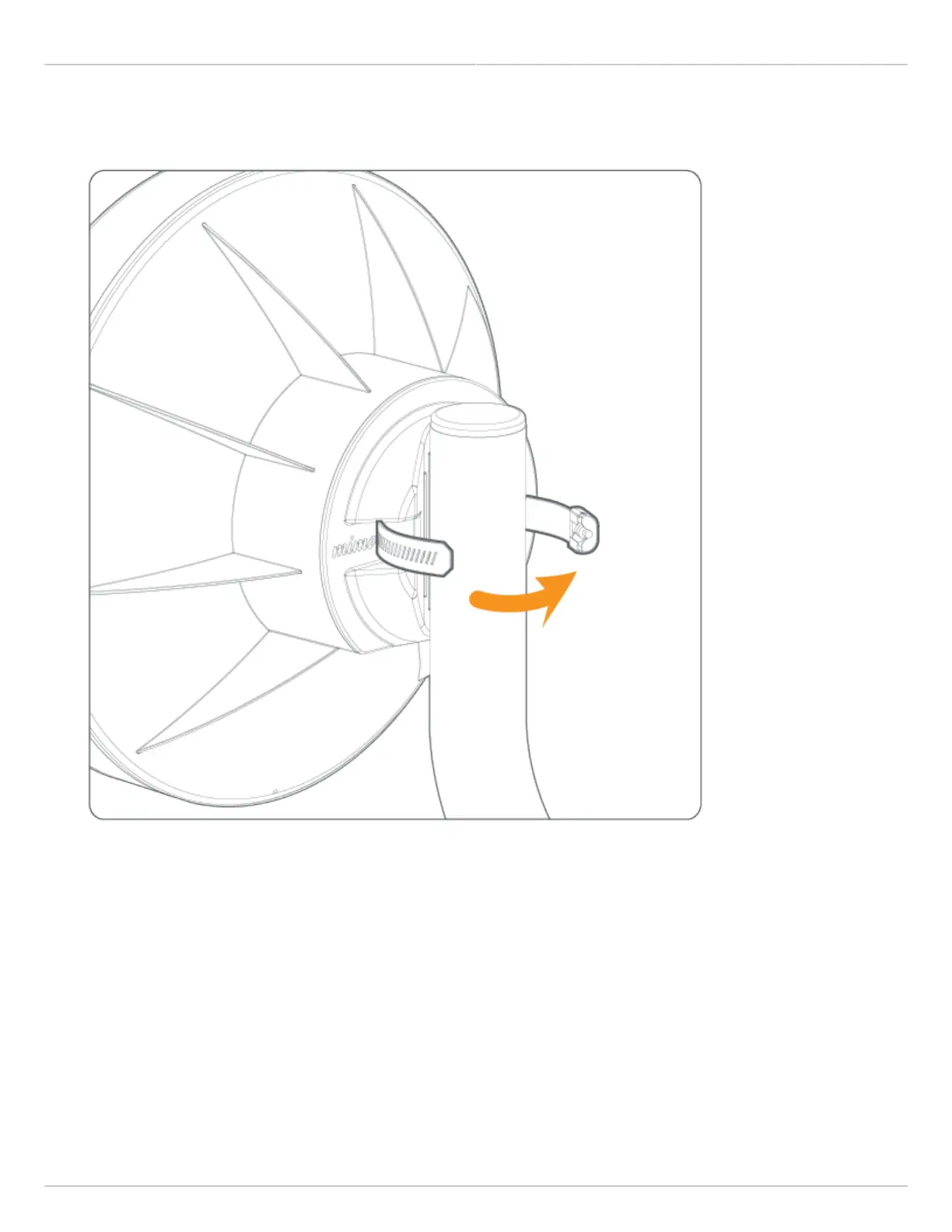

Mount the B5-Lite on the J-Mount using the pipe clamp.2.
Attach a 6 mm
2
(10 AWG) ground wire between the B5-Lite and a suitable grounding location. The provided3.
grounding screw is M5 x 6mm.
