Mindray Zeus8 User Manual

Part I Service Scenarios
Update 108
No. P/N Description Picture Remarks
Installation
Reference
8 115-068431-00 Probe extender
(Non pencial
port/FRU)
Optional for
the trolley
See Part II
General
Information:
5.3.3Extender.

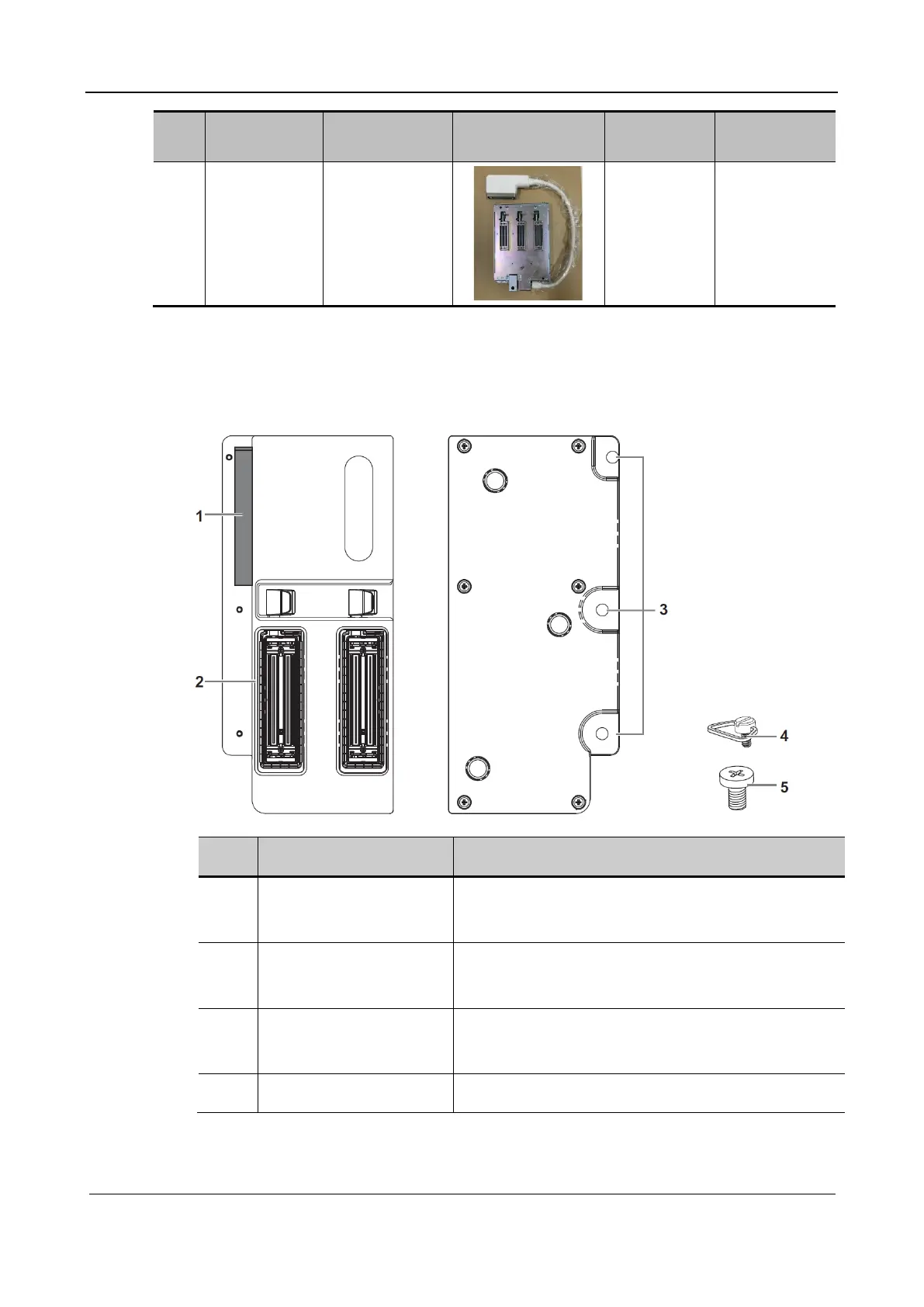

4.3.2 Upgrade Method
4.3.2.1 Upgrading the Dual Probe Extend Module
No. Name Description
1. Connector
Connects to the probe port of the main unit, and extends
the probe port to two.
2. Probe port
To extend ports for connecting probes, the middle one is a
docking port.
3. Fixing screw holes (×3)
To fix the module to the main unit using the supplied
screws.
4. Handle screws (×3) To fix the module to the main unit.
