Part II General Information
Product Principle 124
2.2.1.2 PHV Power Supply

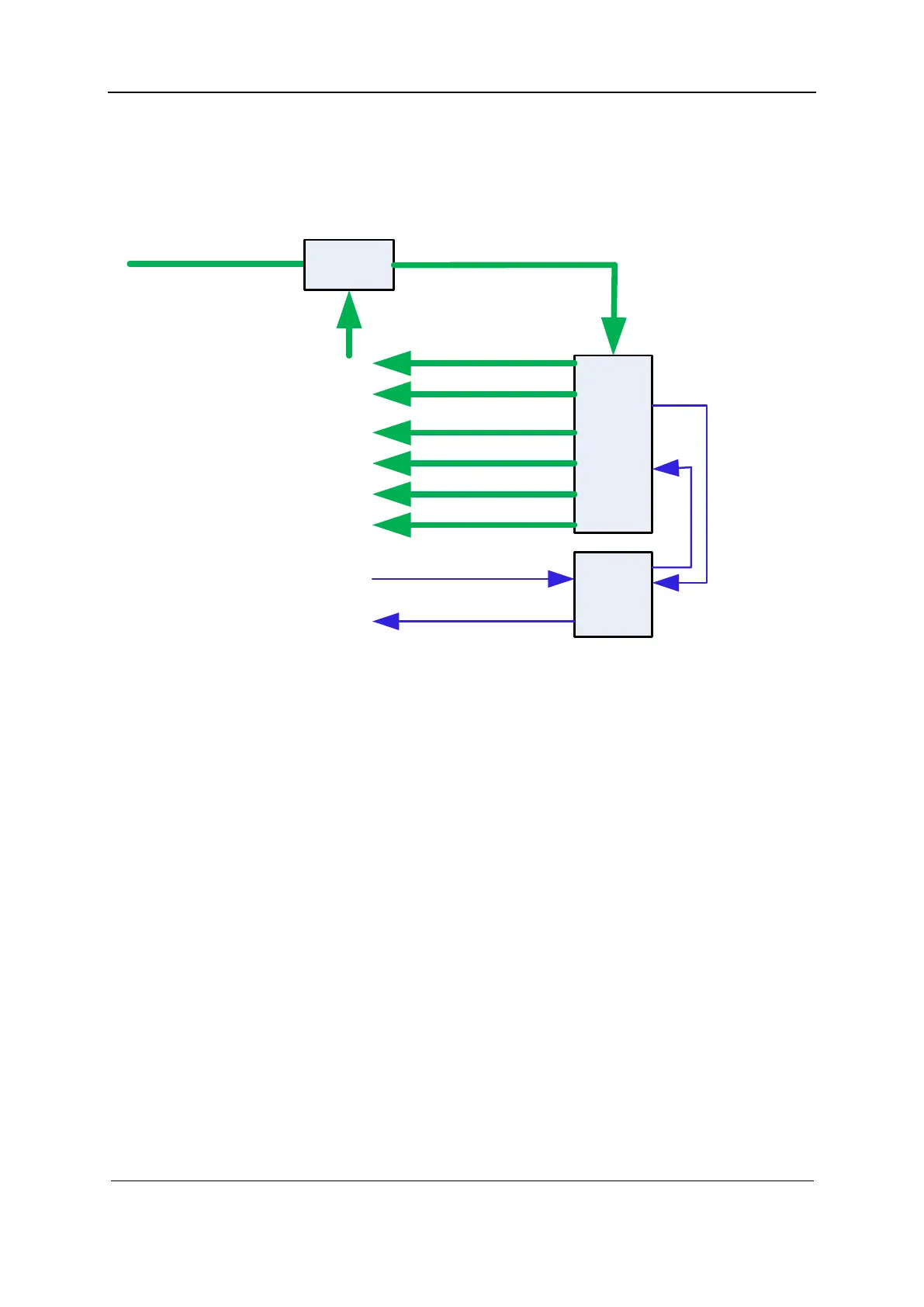

Figure 2-3 Block diagram of the PHV power supply
Fl yback
circuit
MCU
P12V
LC filter
12VIN
AP100V
AN100V
PHV1P
PHV1N
PHV2P
PHV2N
UART_TX
UART_RX
Overcurrent/
overvoltage
signal
DAC_SDI
Function description:
The PHV power supply provides power to the transmit circuit and has six output channels:
AP100V, AN100V, PHV1P, PHV1N, PHV2P, and PHV2N.
Power is output by the PHV and then supplied to the transmit circuit after filtering.
2.2.2 Backend
The backend consists of the PC module and related circuits on the main board.
