Mindray Zeus8 User Manual

Part II General Information
Structure and Assembly/Disassembly 203
5.3.7 Removing the Upper Cover of the Trolley Handle
1. Remove the upper cover of the control panel. For details, see 5.3.6.

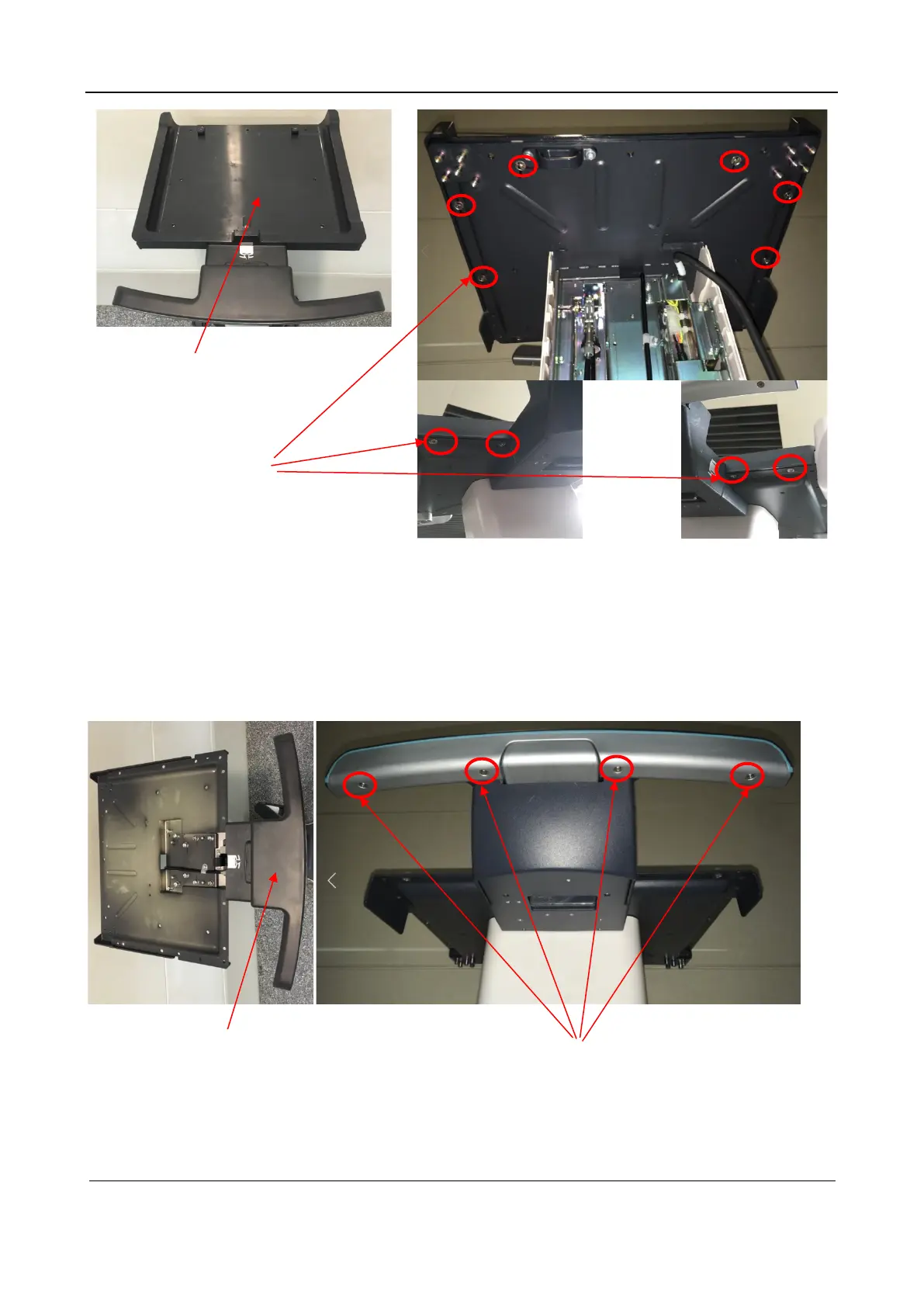

2. Use an M3 crosshead screwdriver to remove the four M3X5 flathead screws from the rear side of
the handle, as shown in the following figure. Note that here an M3 crosshead screwdriver must be
used here to avoid stripping the screws.
3. Take off the upper cover of the handle.
5.3.8 Control Panel
1. Remove the upper cover of the control panel and the upper cover of the handle. For details, see
sections 1.3.6 and 1.3.7.
Upper cover of
the control panel
M4X12 cross recessed
countersunk head
screw (10 pcs)
Upper cover of the trolley handle
M3X5 flathead screw (4 pcs)
