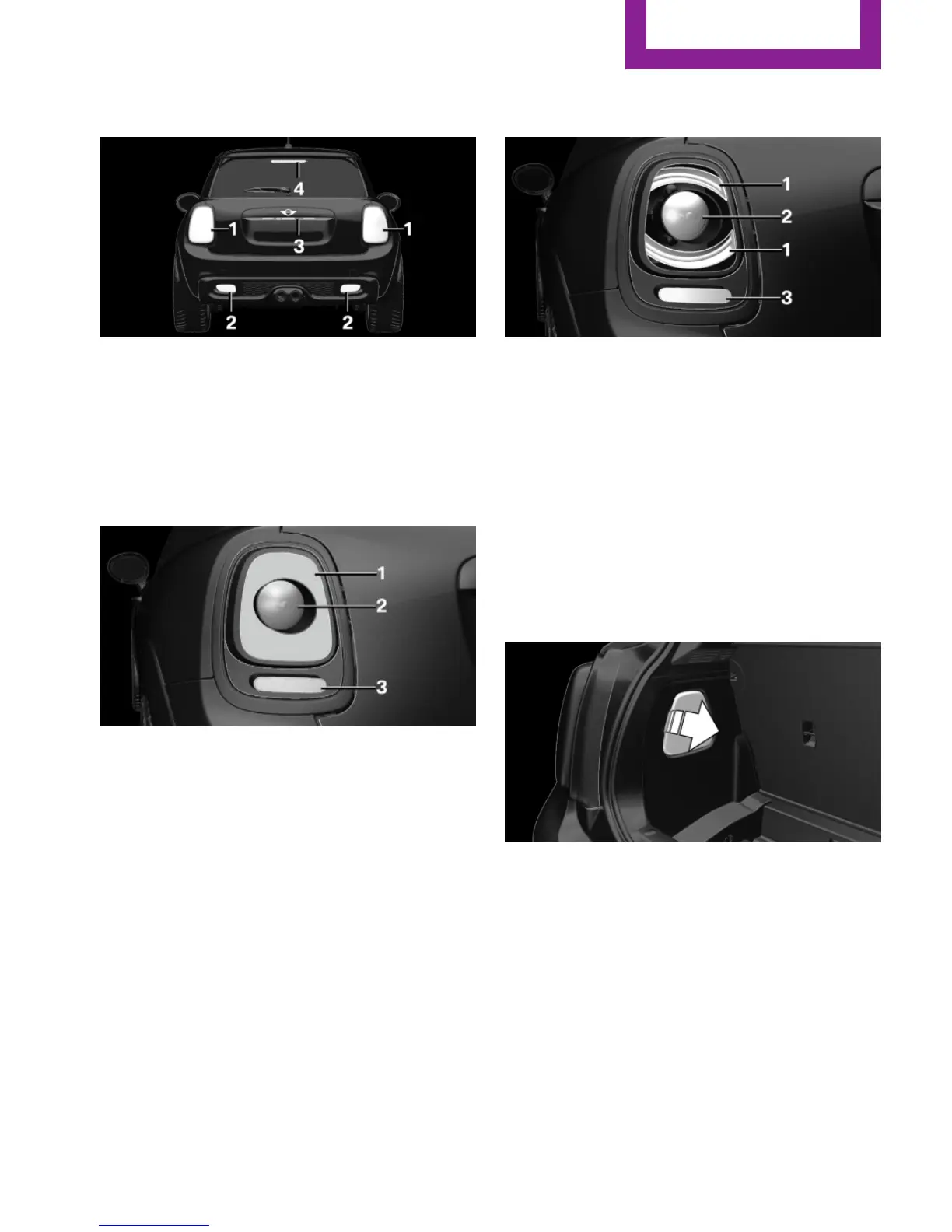

Vehicle with two rear fog lamps
1 Side tail lamps
2 Rear fog lamps
3 License plate lamp
4 High brake lights
Side tail lamps
1 Brake lights/tail lights
2 Turn signal
3 Reversing lights
Side LED tail lamps
1 Brake lights/tail lights
2 Turn signal
3 Reversing lights
Side tail lamps
Follow the general instructions on lamps and
bulbs, refer to page 189.
Bulbs: P21W
1.
Open the tailgate., refer to page 39
2. Remove left or right cover.
3. Through the opening, loosen the plug con‐
nector, arrow 2 on the bulb holder.
Seite 193
Replacing components
MOBILITY
193
Online Edition for Part no. 01 40 2 927 905 - II/14
