To prevent personal injury or damage to both
vehicles, adhere strictly to the following proce‐
dure.
DANGER
Contact with live components can lead to
an electric shock. There is risk of injuries or
danger to life. Do not touch any components
that are under voltage.◀
Preparation
1. Check whether the battery of the other ve‐
hicle has a voltage of 12 volts and approxi‐
mately the same capacitance in Ah. This in‐
formation can be found on the battery.
2. Switch off the engine of the assisting vehi‐
cle.
3. Switch off any electronic systems/power
consumers in both vehicles.
CAUTION
In the case of body contact between the
two vehicles, a short circuit can occur during
jump-starting. There is risk of property damage.
Make sure that no body contact occurs.◀
Connecting jumper cables
WARNING
If the jumper cables are connected in the
incorrect order, sparks formation can occur.
There is risk of injuries. Pay attention to the cor‐
rect order during connection.◀

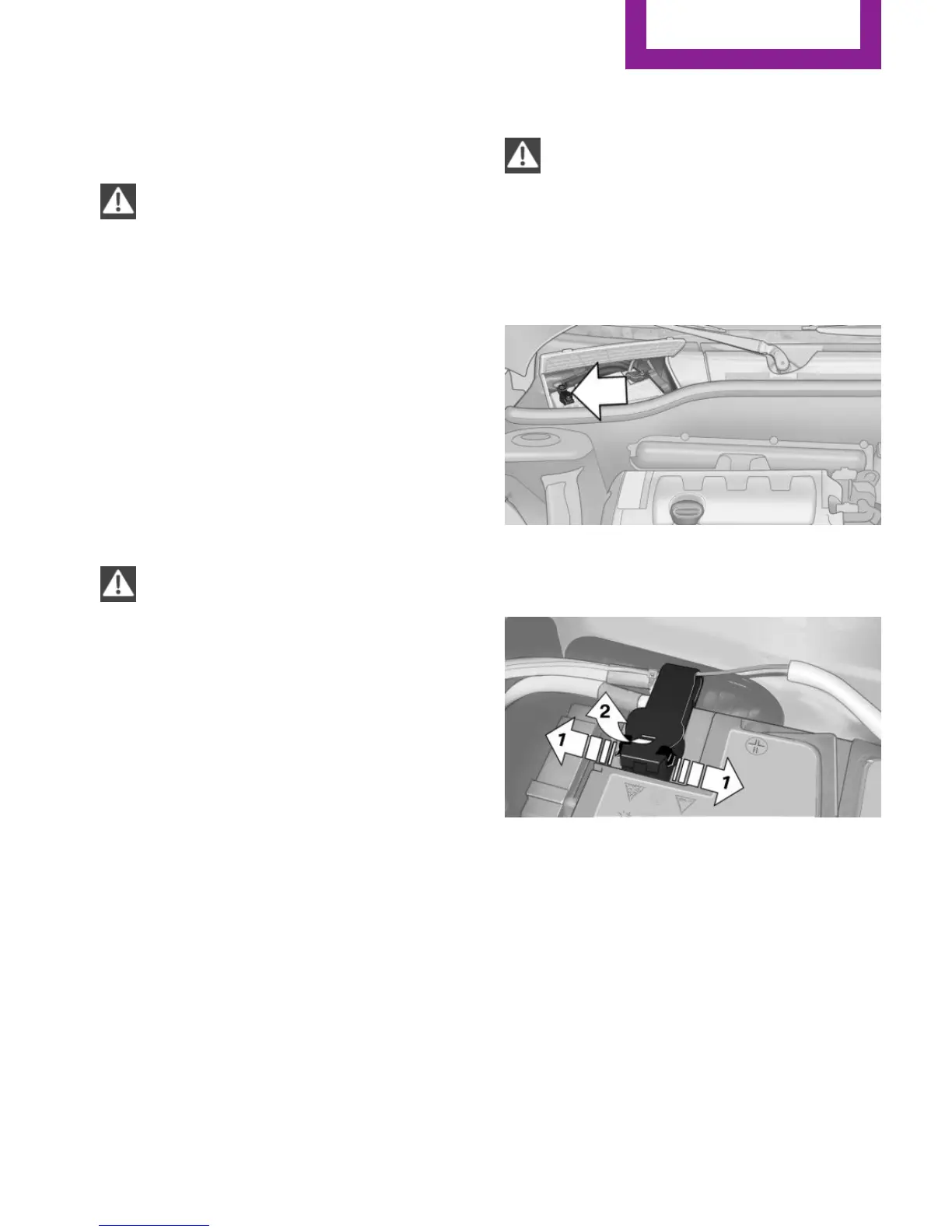

1. Open the battery cover in the engine com‐
partment to access the positive terminal.
2. Unlock the tabs of the positive terminal
cover on the left and right, arrows 1, and
raise the cover, arrow 2.
3. Attach one terminal clamp of the positive
jumper cable to the positive terminal of the
battery or to a starting aid terminal of the
vehicle providing assistance.
4. Attach the second clamp of the positive
jumper cable to the positive terminal of the
battery of the vehicle to be started.
5. Attach one terminal clamp of the negative
jumper cable to the negative terminal of
the battery, or to the corresponding engine
Seite 249
Breakdown assistance
MOBILITY
249
