CNC Mini-Mill User's Guide
The CNC Milling Machine

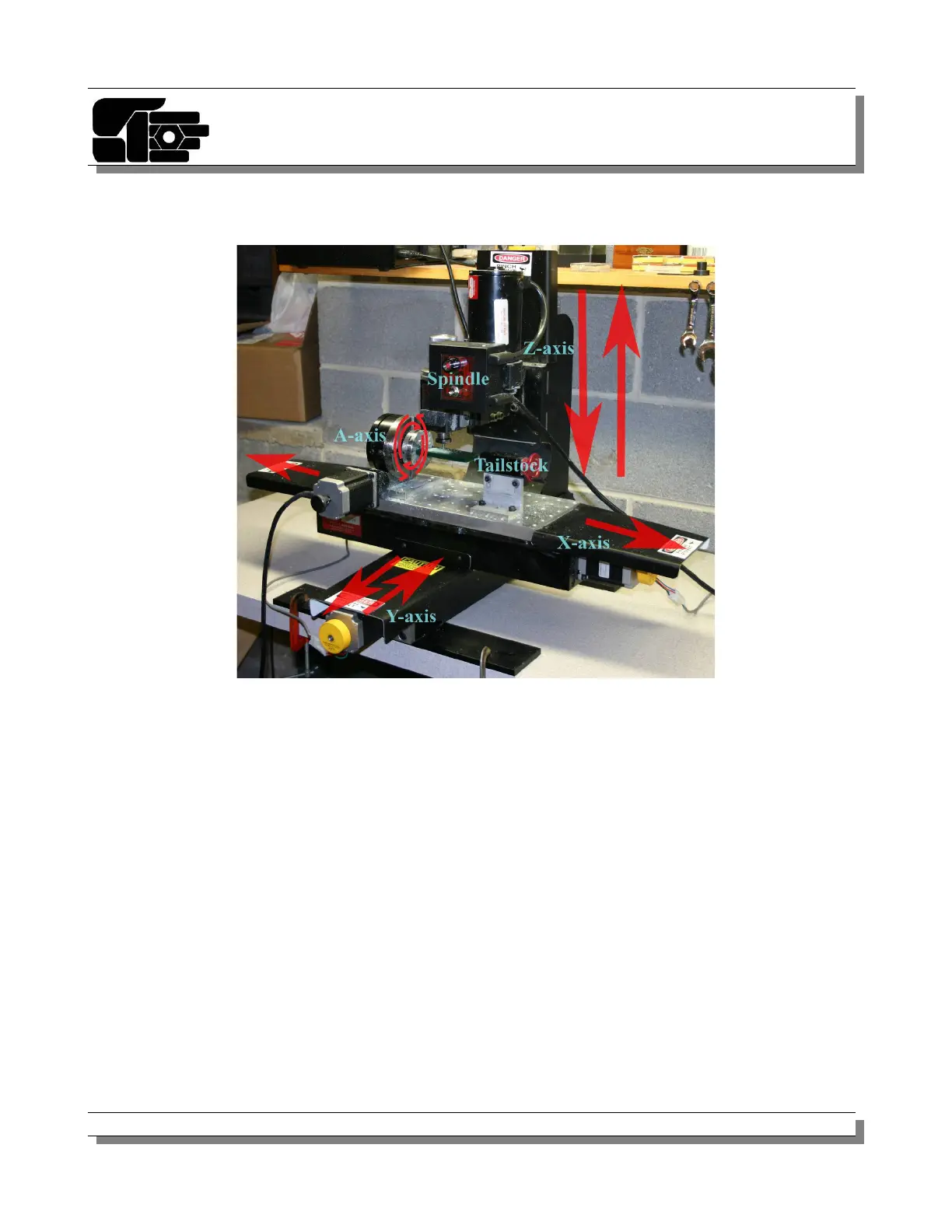

Figure 6: Mini-Mill 3
Parts of the Machine
Figure 6 is a photograph of the Minitech Mini-Mill 3. This particular model is a 4-axis vertical
CNC milling machine. There are three linear axis; X,Y, and Z; and one is rotational, A. The
figure illustrates the machine axis and their direction of movement.
