ITEM(S) NEEDED
#8 x 4
Face
Plate
Hook
Loop
Dust Cover
Face
Plate
t. With pilot holes drilled, push the wires, Face Plate
and Plug Receptacle back in place on the Mounting
Surface.
u. Double check the location of the Hook on the back
side of the Face Plate. The Loop in the cable of the
Dust Cover should be placed in the Hook of the Face
Plate. Once secure, push the Face Plate all the way
back against the mounting surface. Ensure the Plug
Receptacle is positioned as previously noted.
v. Realign the drilled pilot holes with the screw holes
on the Face Plate. Secure the Face Plate with four
#8-18 x 1-¼ Screws (Item #8) using a Phillips
Screw Driver.
7r

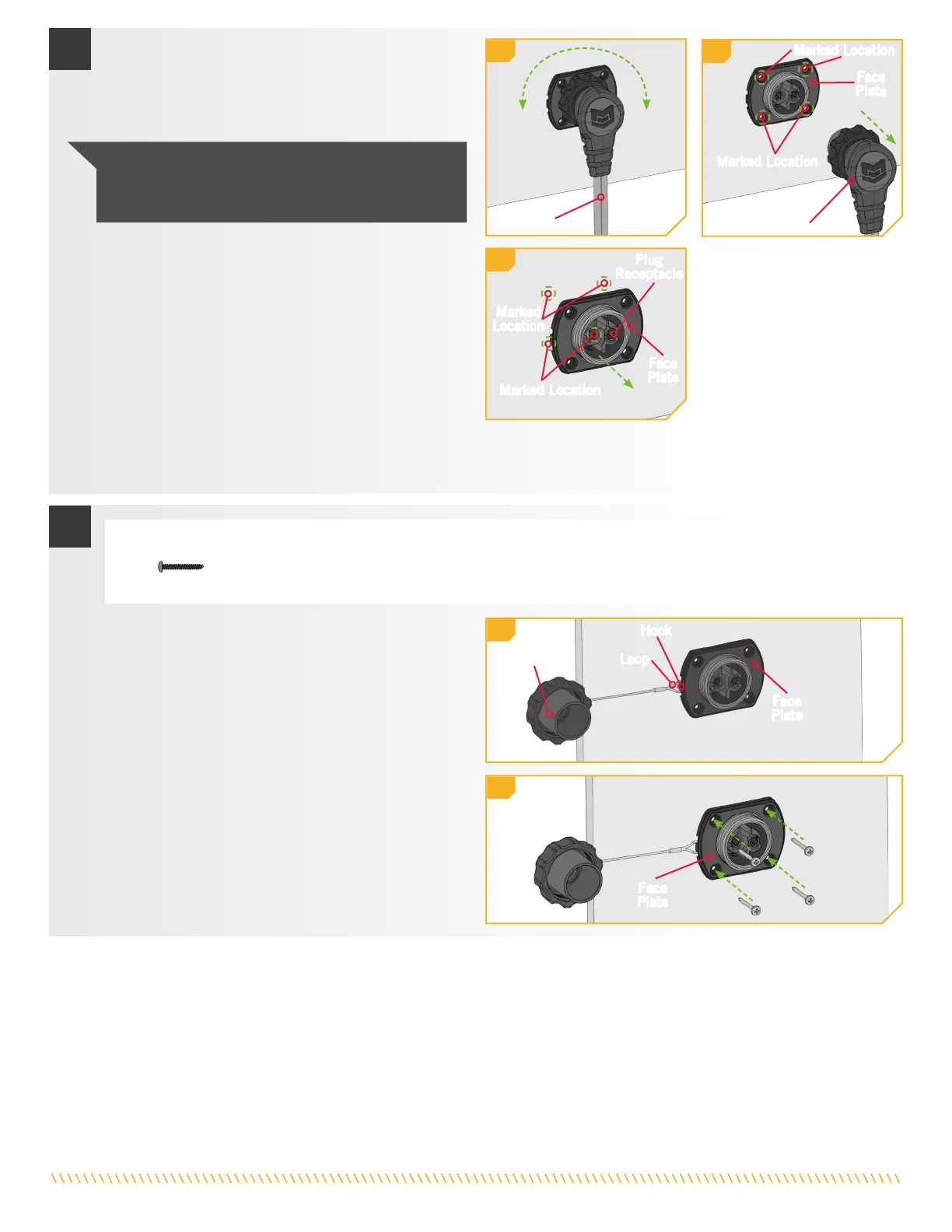

q. Turn the entire assembly to the right or left until the
Cord from the Plug Assembly is in an acceptable
location. Check for clearance of other items on the
mounting surface and if the cord will interfere with
the operation of anything in the area.
r. Once in an acceptable location, take a pen or
marking tool and mark the mounting surface in each
of the screw holes on the Face Plate. Make note of
the orientation of the Plug for correct placement
in the next steps of installation. With the locations
marked, remove the Plug Assembly from the Plug
Receptacle and set it aside.
s. Lift the Plug Receptacle, Face Plate and wires
forward out of the drilled hole and leave it hang out
of the way. Take a Drill with an 1/8" Drill Bit and drill
pilot holes into the Mounting Surface on the Marked
Locations.
7
7q
7s
Plug Assembly
Cord
Marked Location
Marked Location
Face
Plate
Plug
Receptacle
Face
Plate
Marked Location
Marked
Location
NOTICE: Make sure the location also allows for the
Plug to be connected and disconnected. Then the
Locking Collar can be secured once the Plug is in use.
