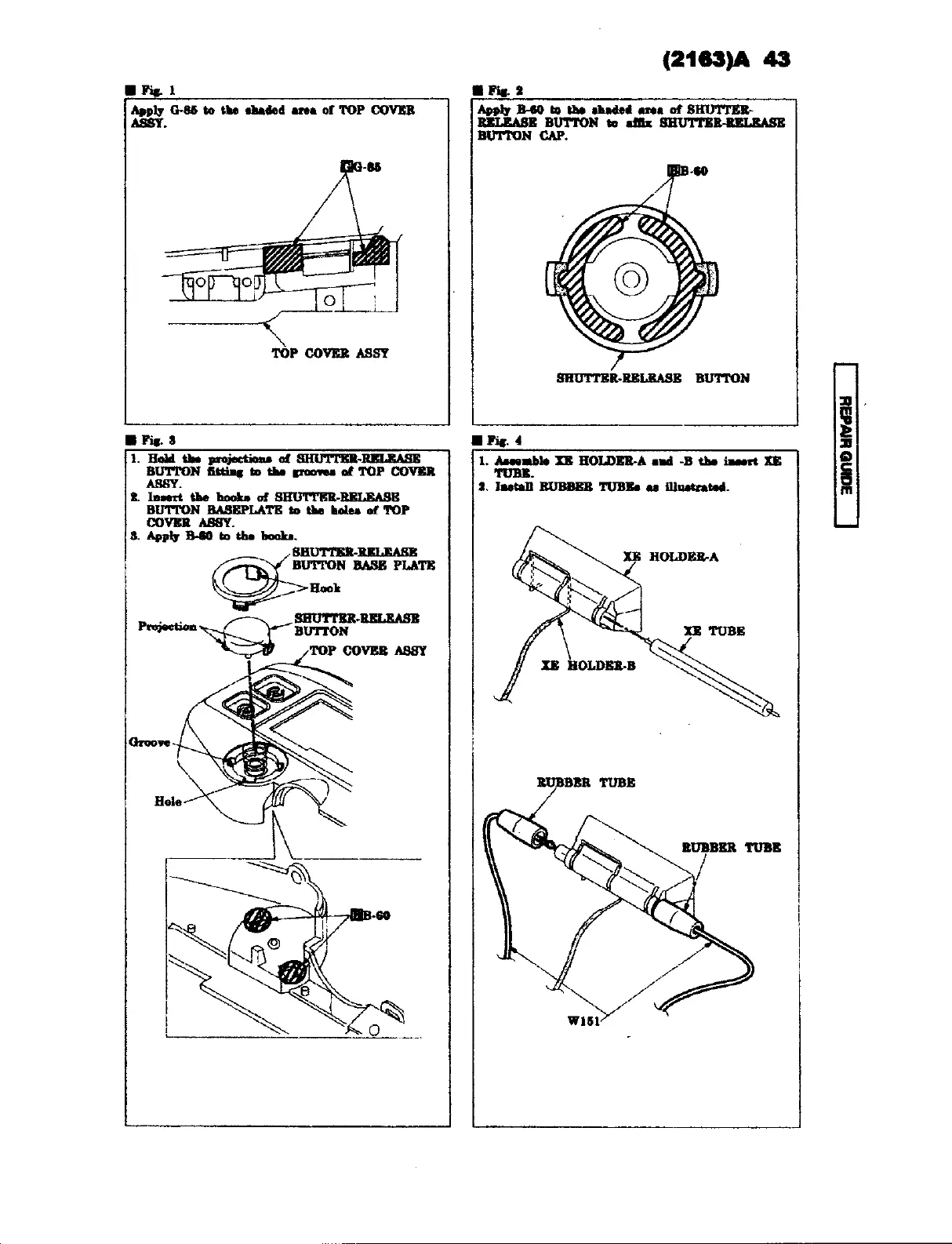

Fig
1
(2163)A
43
Apply
G-85
to
the
shaded
area
of
TOP
COVER
ASSY.
‘“
TOP
COVER
ASSY
SHUTTER-RELEASE
BUTTON
Mi
Fig.
3
@
Fig.
4
1.
Hold
the
projections
of
SHUTTER-RELEASE
BUTTON
fitting
to
the
grooves
of
TOP
COVER
ASSY.
2.
Insert
the
hooks
of
SHUTTER-RELEASE
BUTTON
BASEPLATE
to
the
holes
of
TOP
COVER
ASSY.
3.
Apply
8-80
to
the
books.
1.
Aseomble
XE
HOLDER-A
and
-B
the
ineert
XE
2.
Install
RUBBER
TUBEs
as
illustrated.
3Gin®
aida
