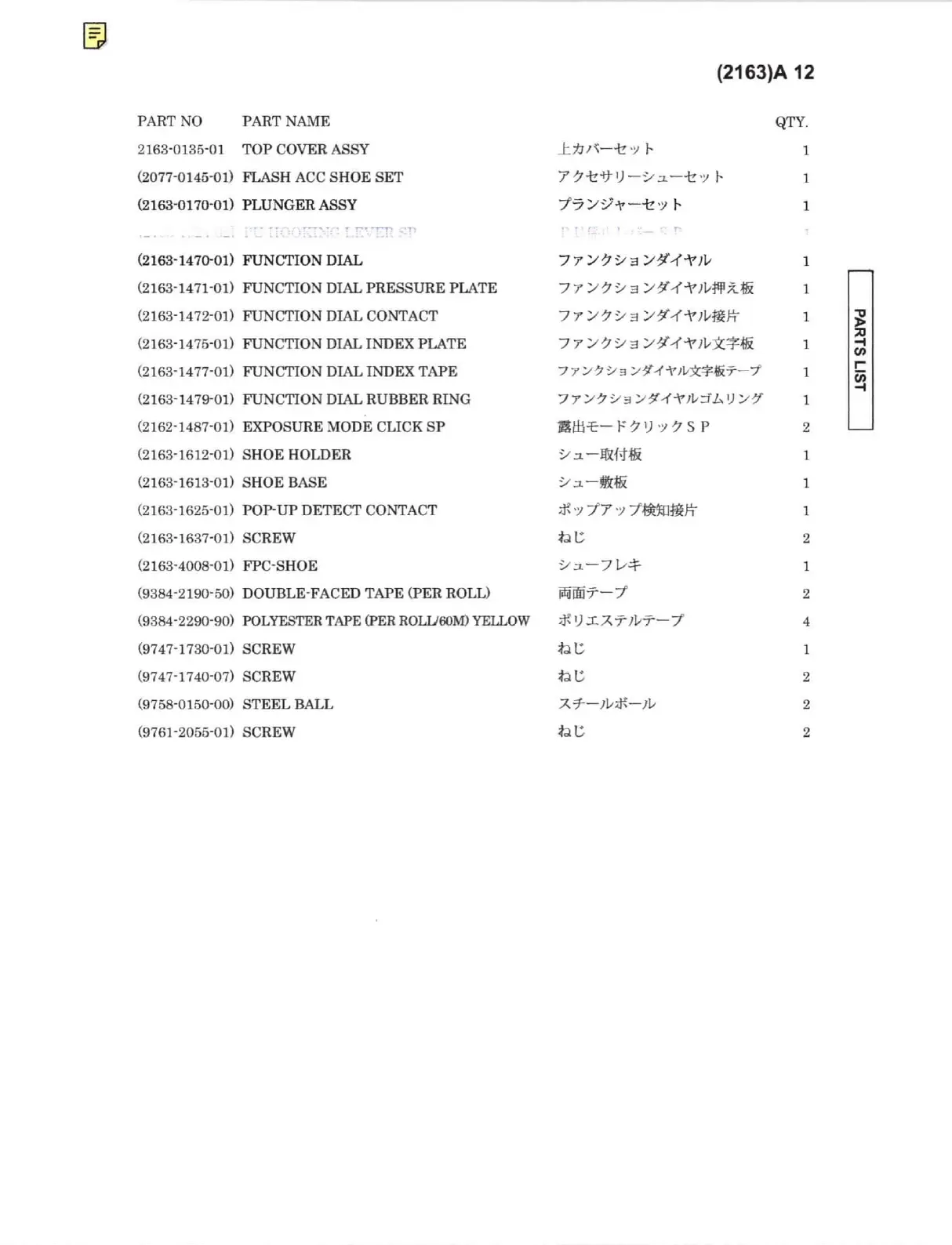

Minolta alpha5 - Page 31

PART NO
2163-0135-01
PART NAME
TOP COVER ASSY
(2077-0145-01) FLASH ACC SHOE SET
(2163-0170-01) PLUNGER ASSY
(2163-1470-01) FUNCTION DIAL
(2163-1471-01) FUNCTION DIAL PRESSURE PLATE
(2163-1472-01) FUNCTION DIAL CONTACT
(2163-1475-01) FUNCTION DIAL INDEX PLATE
(2163-1477-01) FUNCTION DIAL INDEX TAPE
(2163-1479-01) FUNCTION DIAL RUBBER RING
(2162-1487-01) EXPOSURE MODE CLICK SP
(2163-1612-01) SHOE HOLDER
(2163-1613-01) SHOE BASE
(2163-1625-01) POP-UP DETECT CONTACT
(2163-1637-01) SCREW
(2163-4008-01) FPC-SHOE
(9384-2190-50) DOUBLE-FACED TAPE (PER ROLL)
(9384-2290-90) POLYESTER TAPE (PER ROLL/60M) YELLOW
(9747-1730-01) SCREW
(9747-1740-07) SCREW
(9758-0150-00) STEEL BALL
(9761-2055-01) SCREW
(2163)A 12
EAR Yb
Fae —Ya-ty hk
FAIYVY4—teyh
FPYIVAaVve{vy
DPYIVAaVAAV VAR
DPVvavavaravivgy
DPYIVAYAAVNVMTIR
DPYIY ALAA NERF —T
Irvavavaetvnahyysys
mInE—-F7UY7SP
Ya — Ati
Y¥a—hik
hy TF vy TRA IT
wav
Ya-TIL+
a — 7
RYVLAFVI—-TF
au
wav
AF—WR—IV
wav
QTY.
41S!I7
SLYVvd
