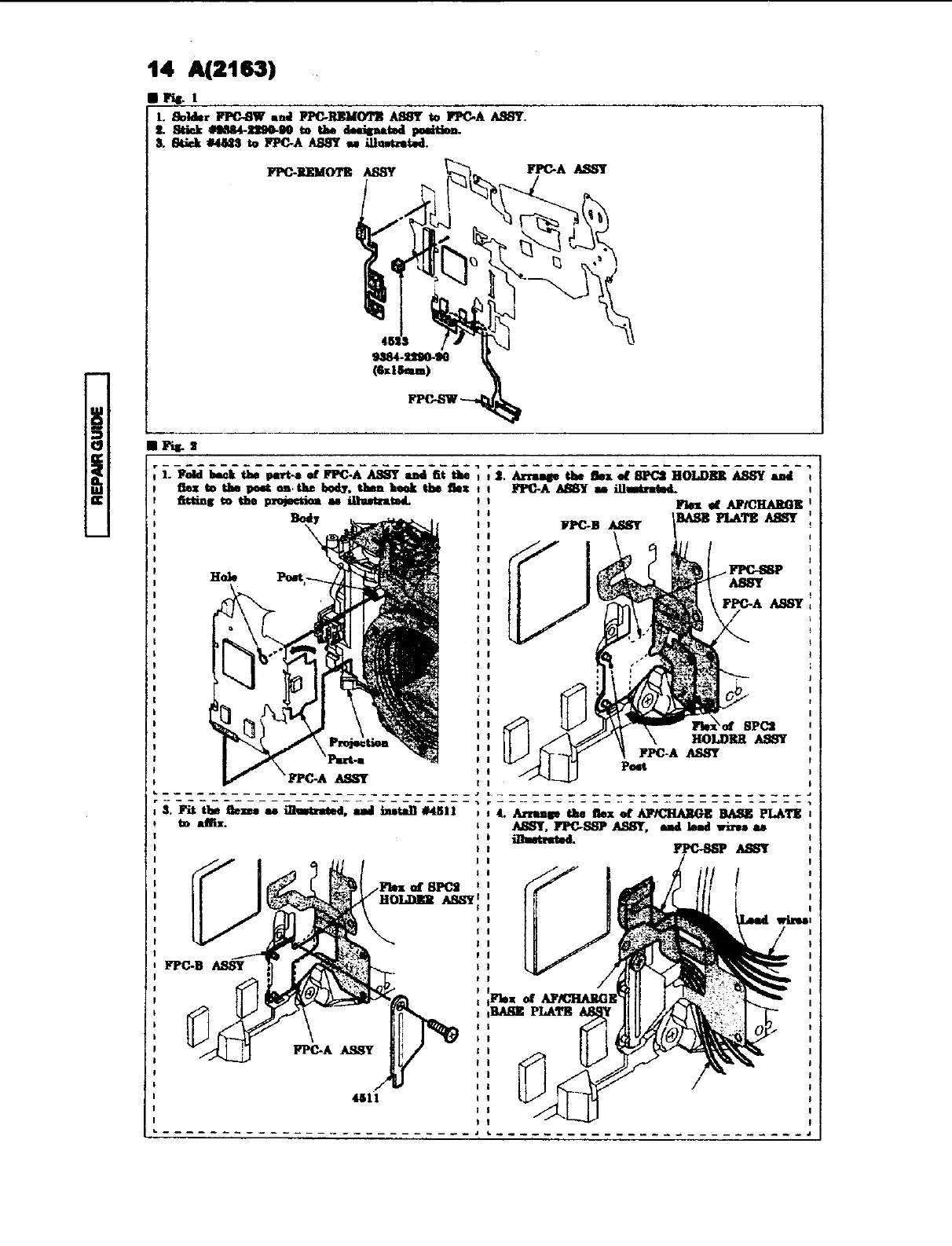

REPAIR
GUIDE
a
:
1.
Solder
FPC-SW
and
FPC-REMOTE
ASSY
to
FPC-A
ASST.
2.
Stick
#9964-2200-90
to
the
designated
position.
3.
Stick
#4523
to
FPC-A
ASSY
as
illustreted.
14
A(2163)
@
Fig
1
