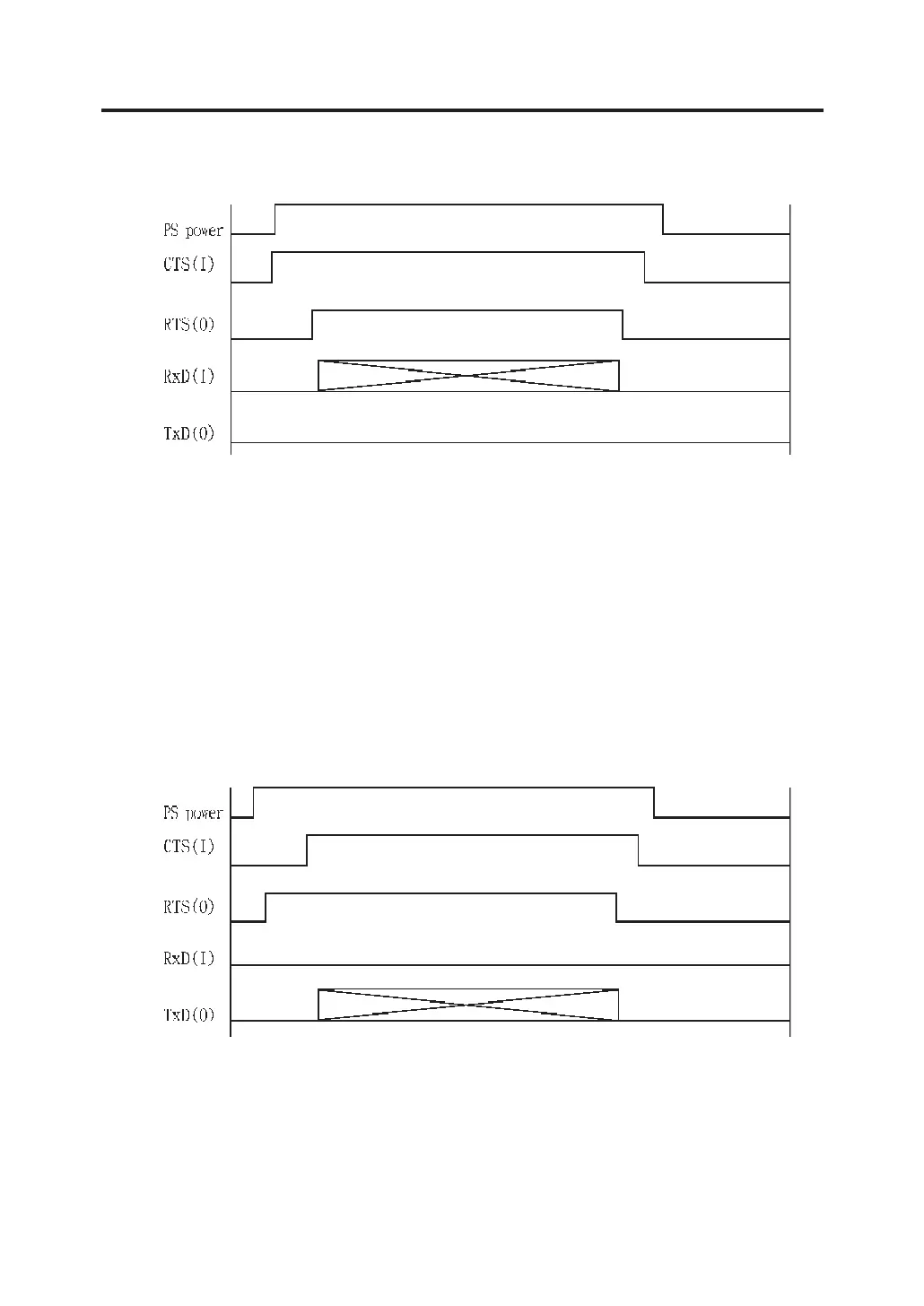

Minolta CS-100A - Communication Signal Timing Diagrams; PC to CS-100 A Signal Timing; CS-100 A to PC Signal Timing

17
PC ¨ CS-100A
Being viewed from the CS-100A side, in case that the CTS becomes H, Set RTS
to H if receiving is possible, and receives the data. In case that 1 packet
is received, set RTS to L.
In case that the edge of CTS enters during the command treatment, on the CS-
100A side, the receiving treatment starts when interrupt is still in during
execution or after completing treatment.
CS-100A ¨ PC
Being viewed from the CS-100A side, when desired to send, set RTS to H and
when CTS becomes H data is sent. In case that 1 packet is sent, set RTS to L.
