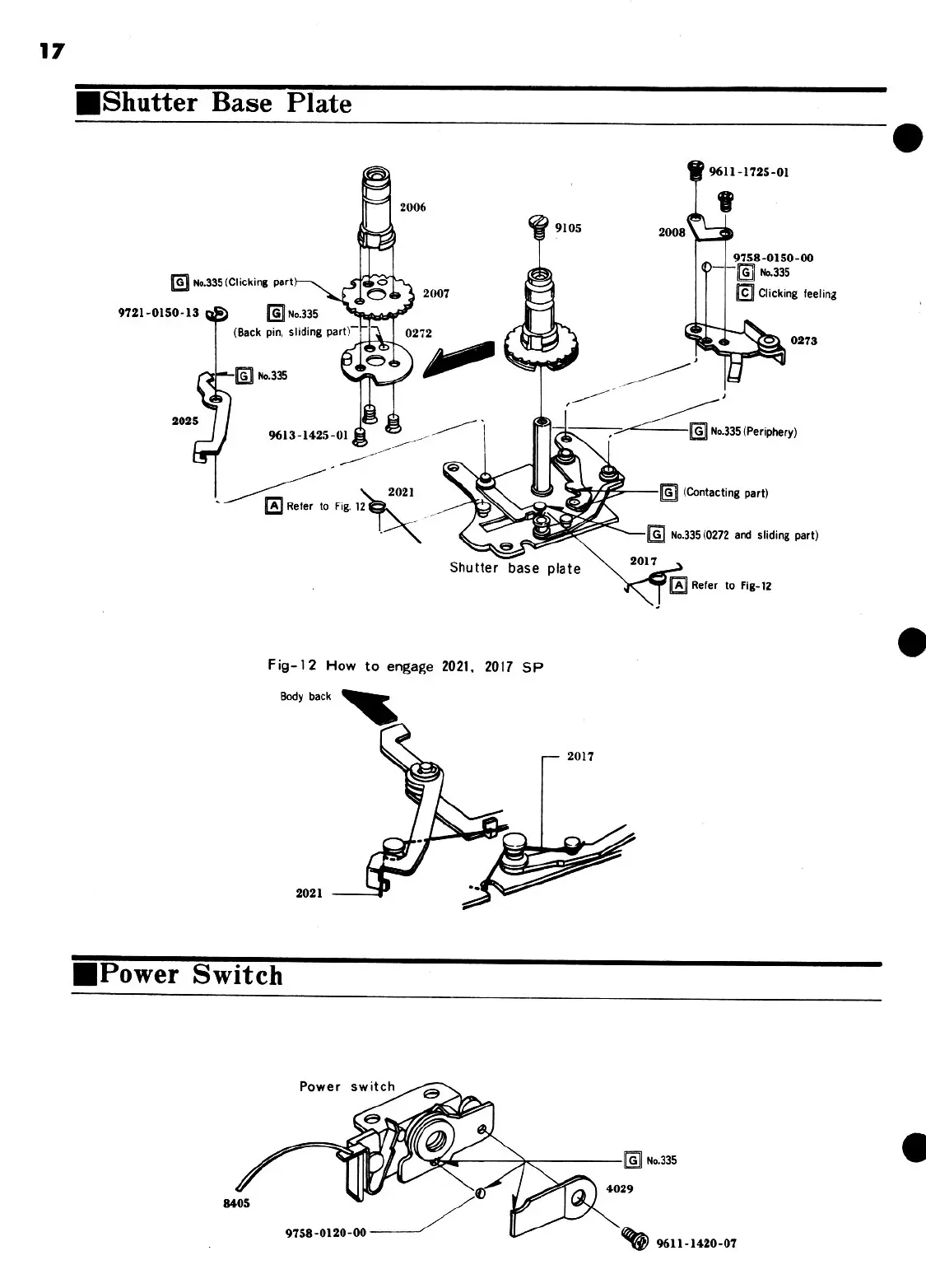

Minolta XE - Shutter Base Plate; Power Switch

17
WiShutter Base Plate
g 9611-1725 -01
9758-0150-00
[G] N0.335
al Clicking feeling
[6] 0.335 (Clicking part
9721 -0150-13 [6] no.335
(Back pin, sliding part)~
(6) no.335
0273
2025
_
9613-1425-01 & a [G] No.335 (Periphery)
—
J ae 2021
(Gj (Contacting part)
Refer to Fig. 12
[GG] 0.335 (0272 and sliding part)
2017
Refer to Fig-12
Fig-12 How to engage 2021, 2017 SP
Body back <
A :
2021
Power switch
4
Sr, No.335
( A 4029
9758 -0120-00 ———
9611-1420-07
