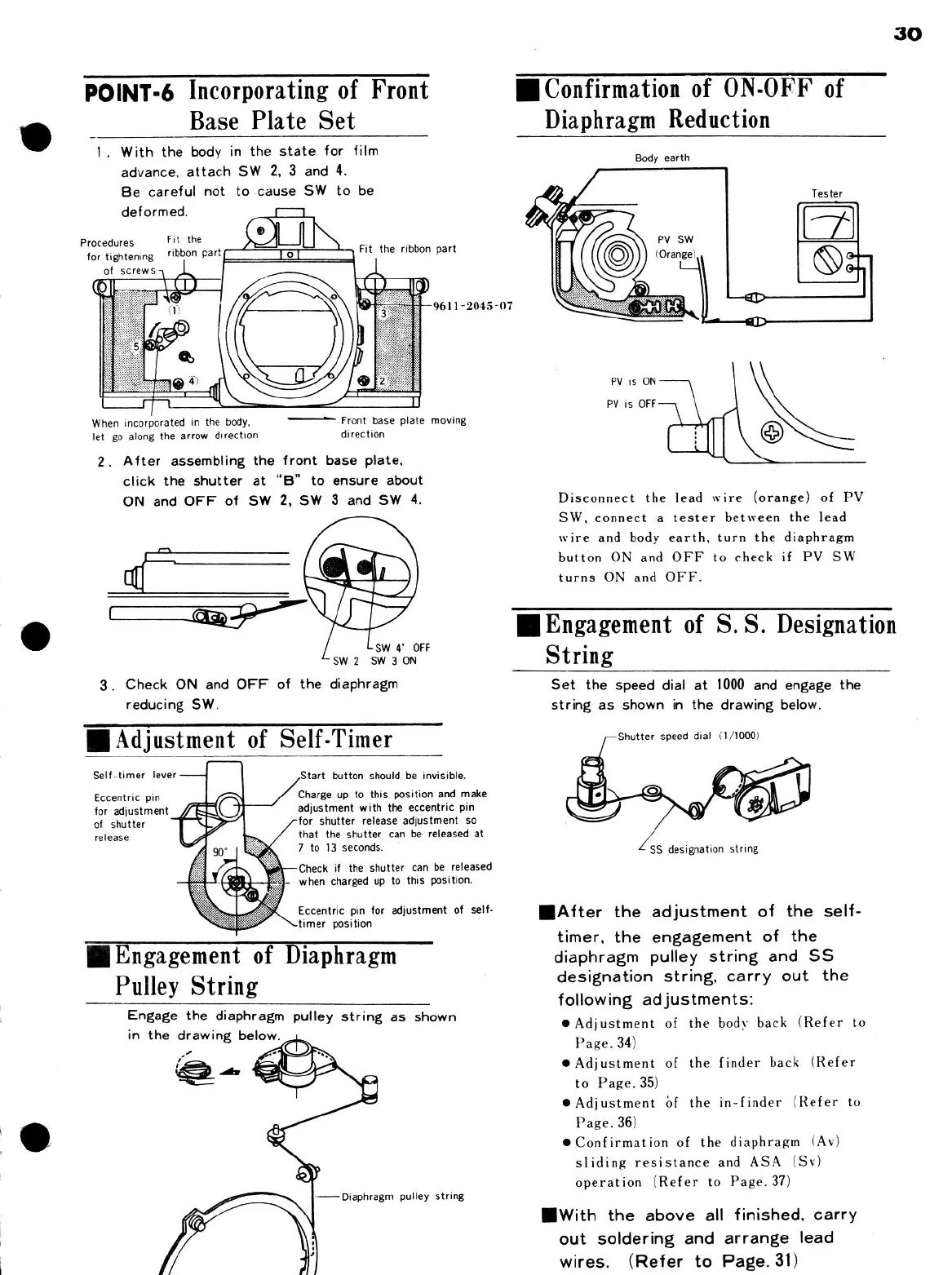

POINT-6
Incorporating
of
Front
Base
Plate
Set
1.
With
the
body
in
the
state
for
film
advance,
attach
SW
2,
3
and
4.
Be
careful
not
to
cause
SW
to
be
deformed.
Procedures
Fit
the
for
tightening
‘ibbon
part
of
screws
4
When
incorporated
in
the
body,
let
go
along
the
arrow
direction
———
Front
base
plate
moving
direction
2.
After
assembling
the
front
base
plate,
click
the
shutter
at
“B”
to
ensure
about
ON
and
OFF
of
SW
2,
SW
3
and
SW
4.
SW
4°
OFF
SW
2
SW
3
ON
3.
Check
ON
and
OFF
of
the
diaphragm
reducing
SW.
BB
Adjustment
of
Self-Timer
Self-timer
lever
Start
button should
be
invisible.
Charge
up
to
this
position
and
make
adjustment
with
the
eccentric
pin
for
shutter
release
adjustment
so
that
the
shutter
can
be
released
at
7
to 13
seconds.
Eccentric
pin
for
adjustment
of
shutter
release
Check
if
the
shutter
can
be
released
when
charged
up
to
this
position.
Eccentric
pin
for
adjustment
of
self-
timer
position
WiEngagement
of
Diaphragm
Pulley
String
Engage
the
diaphragm
pulley
string
as
shown
in
the
drawing
below.
|
——
Diaphragm
pulley
string
Wi
Confirmation
of
ON-OFF
of
Diaphragm
Reduction
Body
earth
PV
is
ON
PV
is
OFF
cD)
Disconnect
the
lead
wire
(orange)
of
PV
SW,
connect
a
tester
between
the
lead
wire
and
body
earth,
turn
the
diaphragm
button
ON
and
OFF
to
check
if
PV
SW
turns
ON
and
OFF.
Mi
Engagement
of
S.S.
Designation
String
Set
the
speed
dial
at
1000
and
engage
the
string
as
shown
in
the
drawing
below.
Shutter
speed
dial
(1/1000)
SS
designation
string
WAfter
the
adjustment
of
the
self-
timer,
the
engagement
of
the
diaphragm
pulley
string
and
SS
designation
string,
carry
out
the
following
adjustments:
@
Adjustment
of
the
body
back
(Refer
to
Page.
34)
@
Adjustment
of
the
finder
back
(Refer
to
Page.
35)
@
Adjustment
of
the
in-finder
(Refer
to
Page.
36)
®
Confirmation
of
the
diaphragm
(Av)
sliding
resistance
and
ASA
(Sv)
operation
(Refer
to
Page.
37)
WWith
the
above
all
finished,
carry
out
soldering
and
arrange
lead
wires.
(Refer
to
Page.
31)
