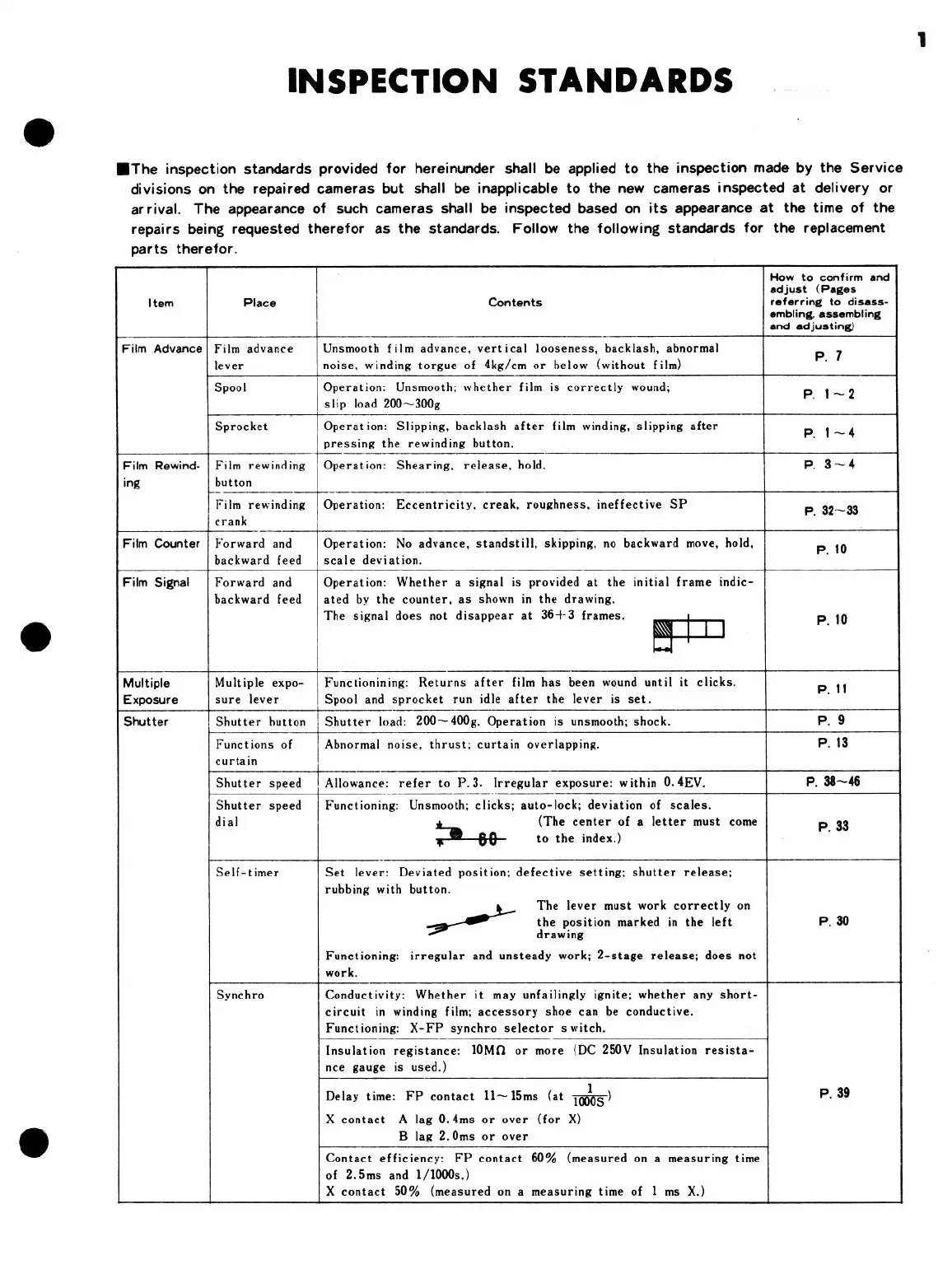

INSPECTION STANDARDS
MiThe inspection standards provided for hereinunder shall be applied to the inspection made by the Service
divisions on the repaired cameras but shall be inapplicable to the new cameras inspected at delivery or
arrival. The appearance of such cameras shall be inspected based on its appearance at the time of the
repairs being requested therefor as the standards. Follow the following standards for the replacement
parts therefor.
How to confirm and
adjust (Pages
Item Place Contents referring to disass-
embling, assembling
and adjusting)
Film Advance | Film advance Unsmooth film advance, vertical looseness, backlash, abnormal Pp 7
lever noise, winding torgue of 4kg/cm or below (without film) :
Spool Operation: Unsmooth, whether film is correctly wound; P1~2
slip load 200~300g :
Sprocket Operation: Slipping, backlash after film winding, slipping after p1~4
pressing the rewinding button. ,
Film Rewind- | Film rewinding | Operation: Shearing, release, hold. P.3~4
ing button
Film rewinding | Operation: Eccentricity, creak, roughness, ineffective SP P. 32~33
crank :
Film Counter | Forward and Operation: No advance, standstill, skipping, no backward move, hold, P. 10
backward feed | scale deviation.
Film Signal Forward and Operation: Whether a signal is provided at the initial frame indic-
backward feed | ated by the counter, as shown in the drawing.
The signal does not disappear at 36+-3 frames. \aae P. 10
Multiple Multiple expo- | Functionining: Returns after film has been wound until it clicks. Pt
Exposure sure lever Spool and sprocket run idle after the lever is set. ‘
Shutter Shutter button | Shutter load: 200~400g. Operation is unsmooth; shock. P.9
Functions of Abnormal noise, thrust; curtain overlapping. P. 13
curtain
Shutter speed | Allowance: refer to P.3. Irregular exposure: within 0. 4EV. P, 38~46
Shutter speed Functioning: Unsmooth; clicks; auto-lock; deviation of scales.
dial (The center of a letter must come P. 33
*@ 69 to the index.)
Self-timer Set lever: Deviated position; defective setting; shutter release;
rubbing with button.
The lever must work correctly on
oer ue position marked in the left P, 30
rawing
Functioning: irregular and unsteady work; 2-stage release; does not
work.
Synchro Conductivity: Whether it may unfailingly ignite; whether any short-
circuit in winding film; accessory shoe can be conductive.
Functioning: X-FP synchro selector switch.
Insulation registance: 10MQ or more (DC 250V Insulation resista-
nce gauge is used.)
Delay time: FP contact 11~15ms (at 1805" P. 39
X contact A lag 0.4ms or over (for X)
B lag 2.0ms or over
Contact efficiency: FP contact 60% (measured on a measuring time
of 2.5ms and 1/1000s.)
X contact 50% (measured on a measuring time of 1 ms X.)
