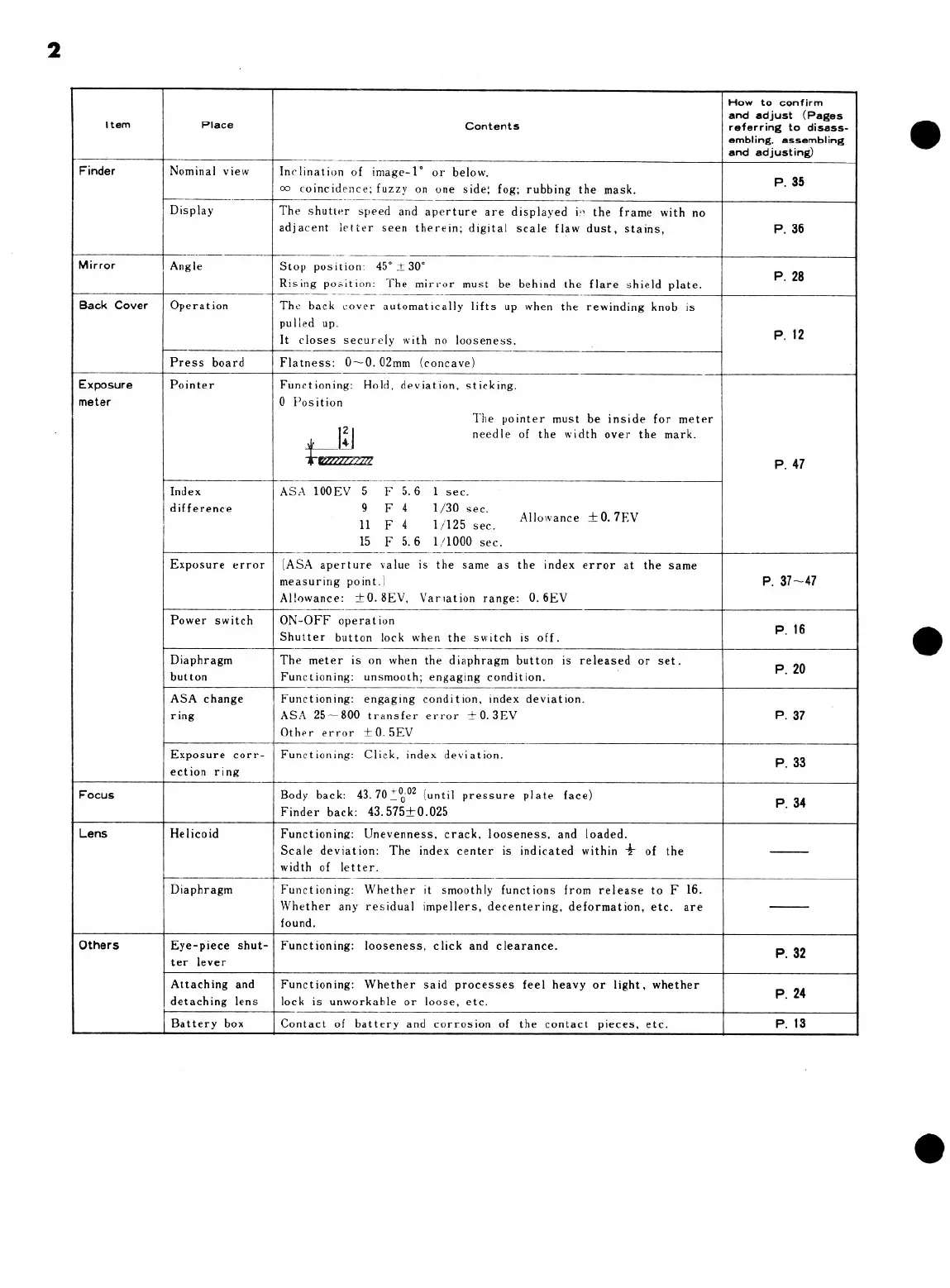

Minolta XE - Finder; Nominal view; Display; Mirror

How to confirm
and adjust (Pages
Item Place Contents referring to disass-
embling, assembling
and adjusting)
1
Finder Nominal view laclination of image-1" or below. P35
ca coincidence; fuzzy on one side; fog; rubbing t the mask, .
Display The shutter speed and aperture are displayed i» the frame with no
adjacent letter seen therein; digital scale flaw dust, stains, P, 36
Mirror Angle Stop position: 45° + 30° P 2B
Rising Position: The mirror must be behind the flare shield plate. ;
Back Cover | Operation The back cover automatically lifts up when the rewinding knob is
pulled up. |
It closes securely with no looseness. ; P. 12
Press board Flatness: 0~0.02mm (concave)
Exposure Pointer Functioning: Hold, deviation, sticking.
meter 0 Position
The pointer must be inside for meter
needle of the width over the mark
Index ASA 100EV 5 ? 5.6 1 sec,
| difference 9 F 4 1/30 sec.
ll F 4 1/125 sec,
15 F 5.6 1/1000 sec.
Allowance +0. 7EV
Exposure error | (ASA aperture value is the same as the index error at the same
measuring point.) P. 37~47
Allowance: +0.8EV, Variation range: 0.6EV
Power switch ON-OFF operation
6
Shutter button lock when the switch is off. Pt
Diaphragm The meter is on when the diaphragm button is released or set. P20
button Functioning: unsmooth; engaging condition. :
ASA change Functioning: engaging “‘candit wih, ines deviation.
ring ASA 25~800 transfer error +0.3EV P. 37
Other error £0. SEV
| Exposure corr- Funct soning: Elick. index deviation. P 33
ection ring ,
Focus | Body back: 43. 70 79,0 (until pressure plate face) P 34
Finder back: 43.575+0.025 :
Lens Helicoid Functioning: Unevenness, crack, looseness, and loaded.
Seale deviation: The index center is indicated within + of the —-
width of letter.
| Diaphragm | Functioning: Whether it smoothly functions from release to F 16.
Whether any residual impellers, decentering, deformation, etc. are _—_
found.
Others Eye-piece shut-| Functioning: looseness, click and clearance. P. 32
ter lever :
Attaching and Functioning: Whether said processes feel heavy or light, whether Pp 24
detaching lens lock is unworkable or loose, ete.
Battery box Contact of battery and corrosion of the contact pieces, etc. P. 13
