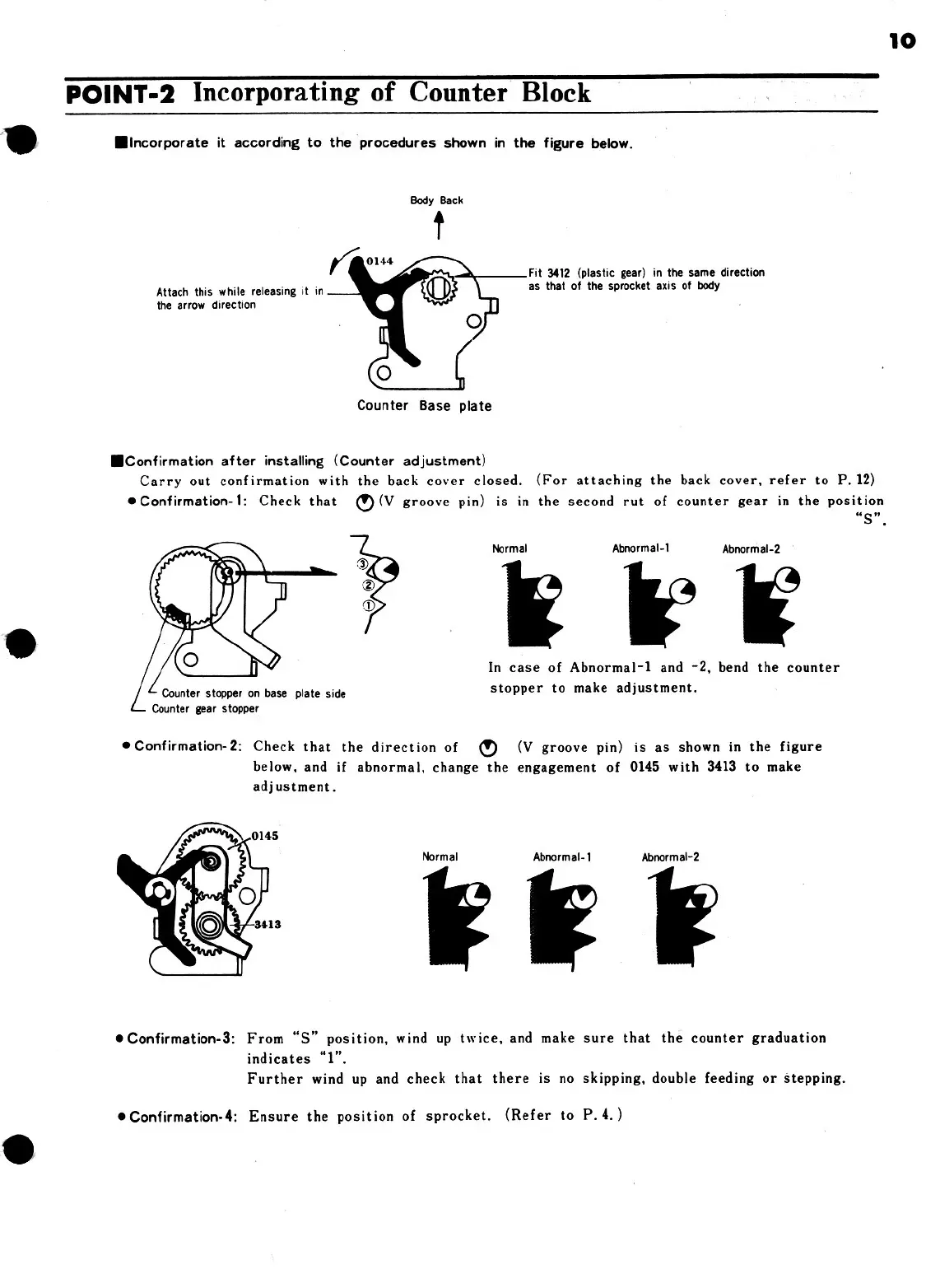

POINT-2
Incorporating
of
Counter
Block
Mlincorporate
it
according
to
the
procedures
shown
in
the
figure
below.
Fit
3412
(plastic
gear)
in
the
same
direction
Attach
this
while
releasing
it
in
as
that
of
the
sprocket
axis
of
body
the
arrow
direction
Counter
Base
plate
MConfirmation
after
installing
(Counter
adjustment)
Carry
out
confirmation
with
the
back
cover
closed.
(For
attaching
the
back
cover,
refer
to
P.
12)
®Confirmation-1:
Check
that
(¥)(V
groove
pin)
is
in
the
second
rut
of
counter
gear
in
the
position
AG"..
Normal
Abnormal-1
Abnormal-2
In
case
of
Abnormal-1
and
-2,
bend
the
counter
Counter
stopper
on
base
plate
side
stopper
to
make
adjustment.
Counter
gear
stopper
®
Confirmation-2:
Check
that
the
direction
of
(¥)
(V
groove
pin)
is
as
shown
in
the
figure
below,
and
if
abnormal,
change
the
engagement
of
0145
with
3413
to
make
adjustment.
Normal
Abnarmal-
1
Abnormal-2
®@
Confirmation-3:
From
“S”
position,
wind
up
twice,
and
make
sure
that
the
counter
graduation
indicates
“1”,
Further
wind
up
and
check
that
there
is
no
skipping,
double
feeding
or
stepping.
®Confirmation-4:
Ensure
the
position
of
sprocket.
(Refer
to
P.
4.)
10
