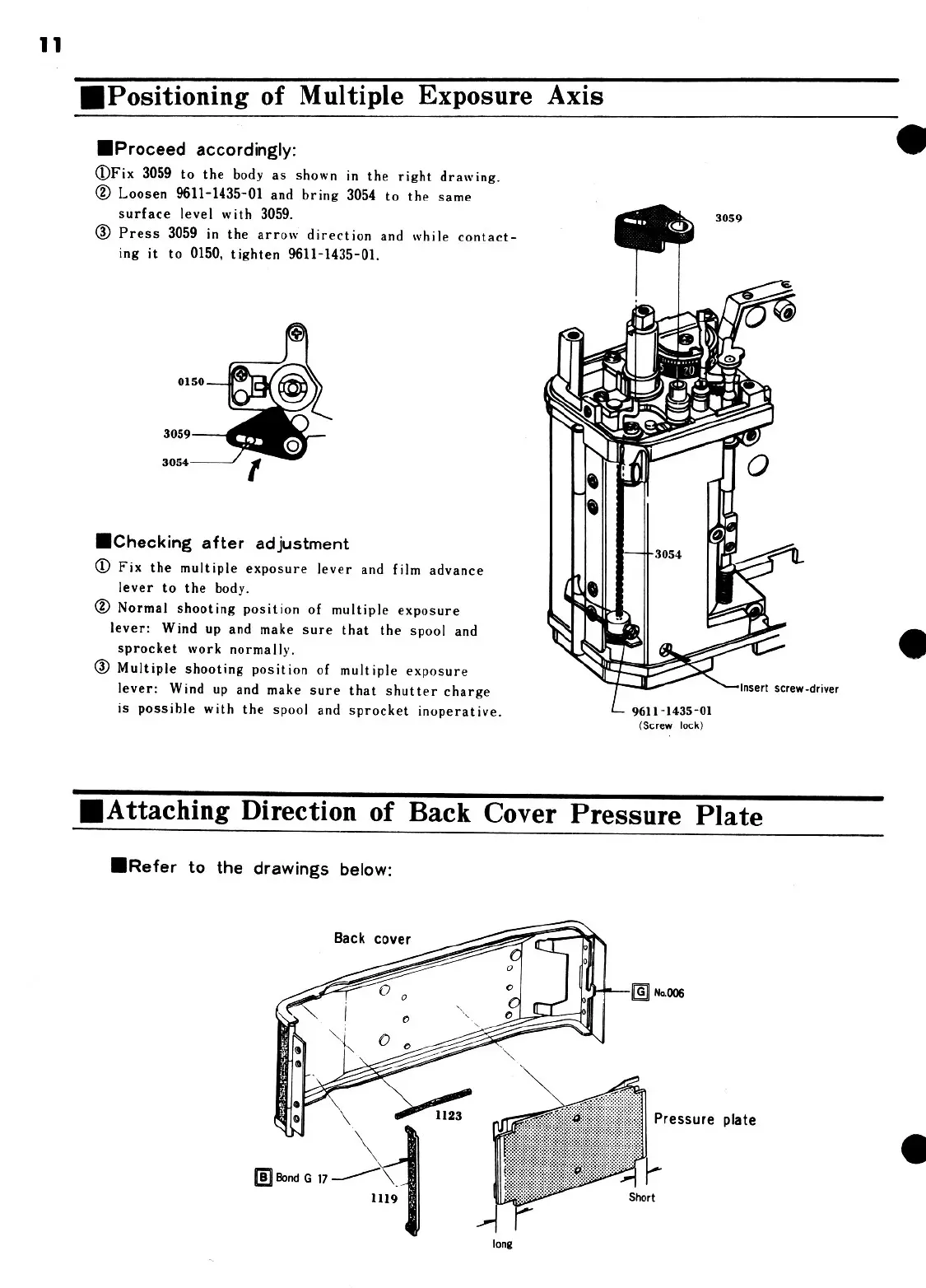

Minolta XE - Positioning of Multiple Exposure Axis; Checking after adjustment; Attaching Direction of Back Cover Pressure Plate

Wi Positioning of Multiple Exposure Axis
MProceed accordingly:
@Fix
3059
to
the
body
as
shown
in
the
right
drawing.
@ Loosen 9611-1435-01 and bring 3054 to the same
surface level with 3059.
@®
Press
3059
in
the
arrow
direction
and
while
contact-
ing it to 0150, tighten 9611-1435-01,
MiChecking after adjustment
@
Fix
the
multiple
exposure
Jever
and
film
advance
lever to the body.
@ Normal shooting position of multiple exposure
lever: Wind up and make sure that the spool and
sprocket work normally.
©)
Multiple
shooting
position
of
multiple
exposure
lever:
Wind
up
and
make
sure
that
shutter
charge
is
possible
with
the
spool
and
sprocket
inoperative.
3059
—+- 3054 tS
Insert screw-driver
9611-1435-01
(Screw lock}
Mi
Attaching
Direction
of
Back
Cover
Pressure
Plate
Refer to the drawings below:
Back cover
[Lee
Pressure plate
-
Short
