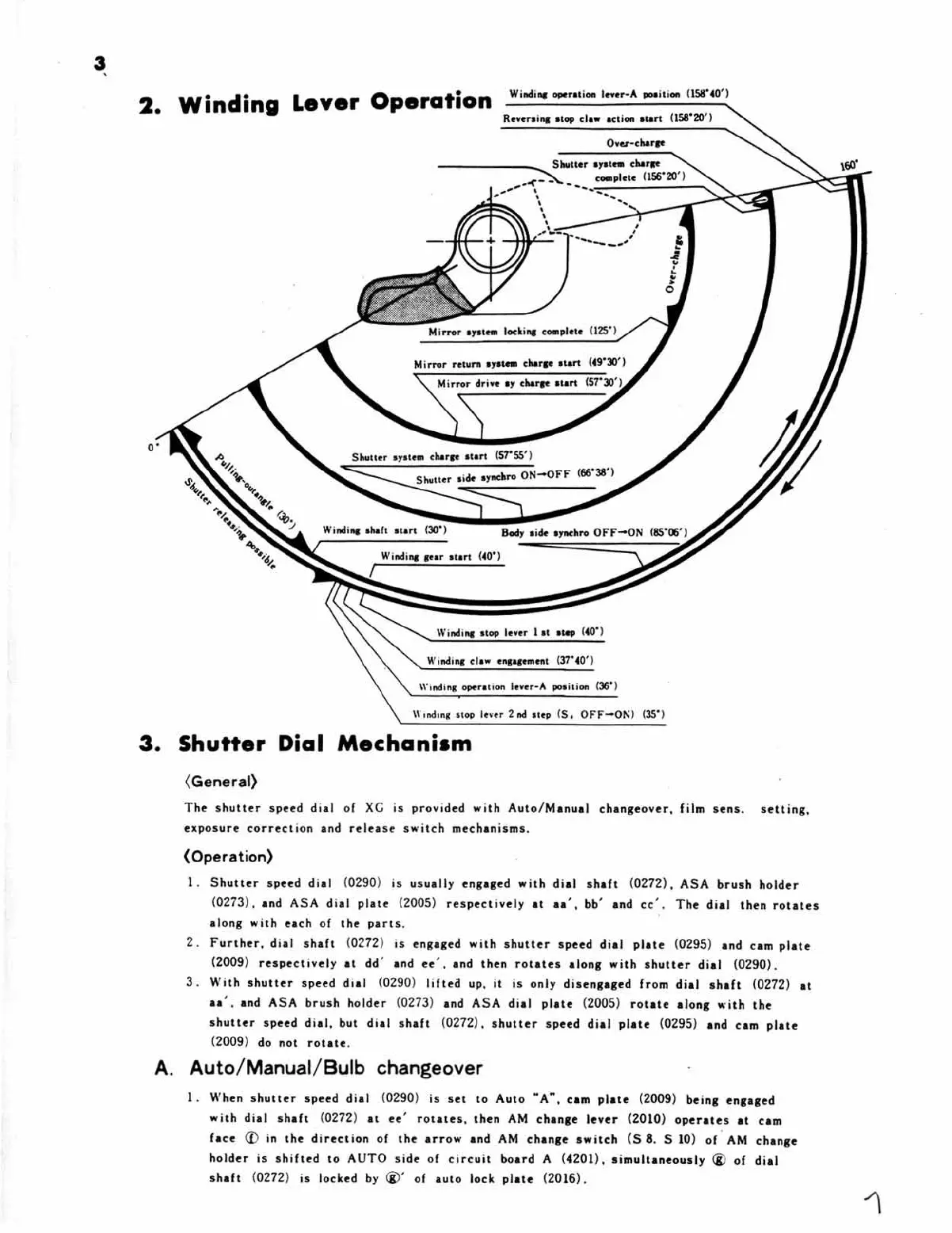

2. Winding Lever Operation Winding operation lever-A position (158°40°)
Reversing stop claw action start (158°20’)
Over-charge
Shutter system charge 10"
«4-8 complete (156°20")
- ‘ -
- ay
-
’
Mirror aystem locking complete (125°)
Mirror return system charge start (49°30°)
Mirror drive sy charge start (57°30°)
Shutter system charge start (57°55")
Shutter
side
synchro
ON-OFF
(66°38")
Winding shaft start (30°) Body side synchro OF F--ON (85°06)
Winding gear start (40°)
/
Winding stop lever 1 at step (40°)
Winding claw engagement (37°40')
Winding operation lever-A position (36°)
Winding stop lever 2nd step (S, OF F-ON) (35°)
3. Shutter Dial Mechanism
(General)
The shutter speed dial of XG is provided with Auto/Manual changeover, film sens. setting,
exposure correction and release switch mechanisms.
(Operation)
1. Shutter speed dial (0290) is usually engaged with dial shaft (0272), ASA brush holder
(0273),
and
ASA
dial
plate
(2005)
respectively
at
aa’,
bb’
and
cc’.
The
dial
then
rotates
along with each of the parts.
2.
Further,
dial
shaft
(0272)
is
engaged
with
shutter
speed
dial
plate
(0295)
and
cam
plate
(2009) respectively at dd’ and ee’, and then rotates along with shutter dial (0290),
3. With shutter speed dial (0290) lifted up, it is only disengaged from dial shaft (0272) at
aa’, and ASA brush holder (0273) and ASA dial plate (2005) rotate along with the
shutter speed dial, but dial shaft (0272), shutter speed dial plate (0295) and cam plate
(2009) do not rotate.
A. Auto/Manual/Bulb changeover
1. When shutter speed dial (0290) is set to Auto “A”, cam plate (2009) being engaged
with
dial
shaft
(0272)
at
ee’
rotates,
then
AM
change
lever
(2010)
operates
at
cam
face
@
in
the
direction
of
the
arrow
and
AM
change
switch
(S
8.
S
10)
of
AM
change
holder is shifted to AUTO side of circuit board A (4201), simultaneously @ of dial
shaft (0272) is locked by @’ of auto lock plate (2016).
