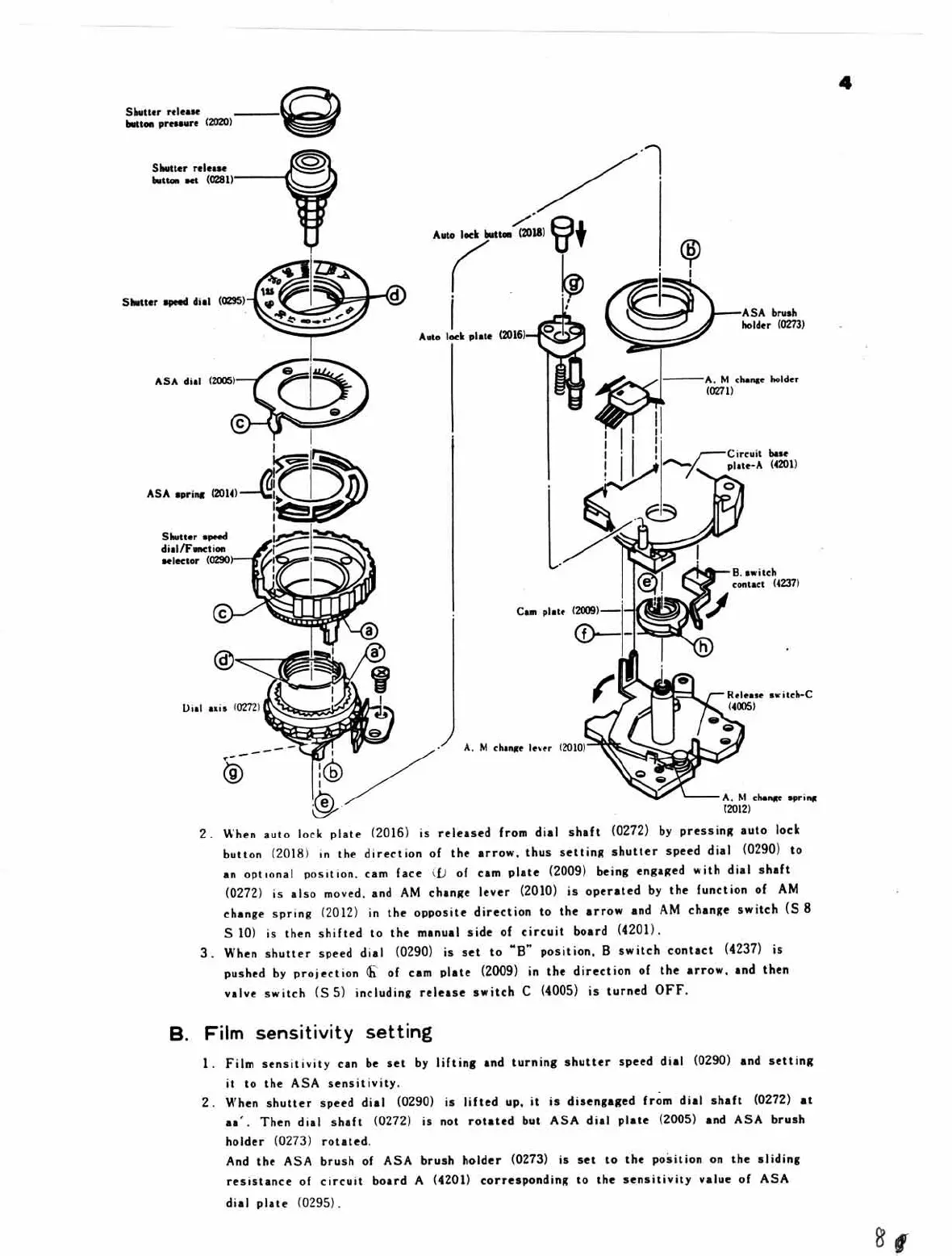

Shutter
release
button
pressure
(2020)
Shutter
release
button
set
(0281)
Shutter
speed
dial
(0295)
ASA
dial
(2005)
dial/Function
selector
(0290)
Shutter
speed
=|
'
e
9
ASA
brush
holder
(0273
Aute
lock
plate
(2016)
Ider
)
A.
M
change
holder
(0271)
Circuit
base
plate-A
(4201)
B.
awiteh
contact
(4237)
Release
switch-C
(4005)
A,
M
change
spring
(2012)
.
When
auto
lock
plate
(2016)
is
released
from
dial
shaft
(0272)
by
pressing
auto
lock
button
(2018)
in
the
direction
of
the
arrow,
thus
setting
shutter
speed
dia)
(0290)
to
an
optional
position,
cam
face
(f)
of
cam
plate
(2009)
being
engaged
with
dial
shaft
(0272)
is
also
moved,
and
AM
change
lever
(2010)
is
operated
by
the
function
of
AM
change
spring
(2012)
in
the
opposite
direction
to
the
arrow
and
AM
change
switch
(S
8
S10)
is
then
shifted
to
the
manual
side
of
circuit
board
(4201).
.
When
shutter
speed
dial
(0290)
is
set
to
“B”
position,
B
switch
contact
(4237)
is
pushed
by
projection
h
of
cam
plate
(2009)
in
the
direction
of
the
arrow,
and
then
valve
switch
(S5)
including
release
switch
C
(4005)
is
turned
OFF.
B.
Film
sensitivity
setting
1.
Film
sensitivity
can
be
set
by
lifting
and
turning
shutter
speed
dial
(0290)
and
setting
it
to
the
ASA
sensitivity.
.
When
shutter
speed
dial
(0290)
is
lifted
up,
it
is
disengaged
from
dial
shaft
(0272)
at
aa’.
Then
dial
shaft
(0272)
is
not
rotated
but
ASA
dial
plate
(2005)
and
ASA
brush
holder
(0273)
rotated.
And
the
ASA
brush
of
ASA
brush
holder
(0273)
is
set
to
the
position
on
the
sliding
resistance
of
circuit
board
A
(4201)
corresponding
to
the
sensitivity
value
of
ASA
dial
plate
(0295).
