Mipro MA-707 - MA-707 Back Panel Components and Controls

Back

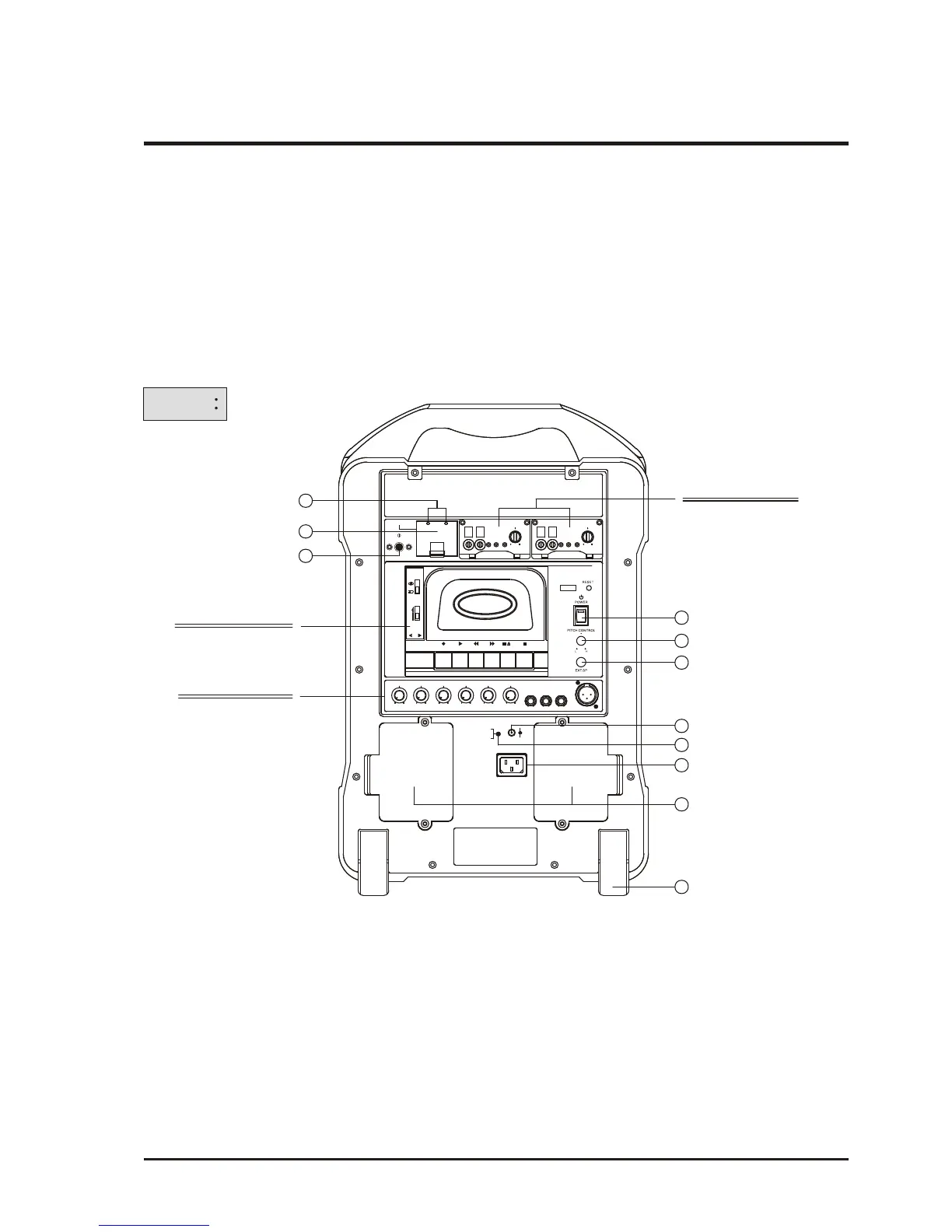

(Fig.2)
(3) Microphone Storage Compartment : A handy storage compartment for your hand
held microphone transmitters.
(4) Speaker : A powerful, 64 watt, 8-inch full-range speaker.
(5) Speaker Grille : To protect the speaker cone from damage.
(6) Heat Sink : Designed specially for the built-in amplifier, please keep it adequately
ventilated.
(7) Tripod (Optional) : There is a tripod mating socket mounted in the base of the MA-
707 to accommodate a 35mm tripod stand.
(8) Charging Status Indicator (for 7.2V rechargeable transmitter batteries) : Indicates
if a 7.2V rechargeable battery is charging (RED light), or is fully charged
(GREEN light).
(9) Battery Charger : It can hold and charge up to two 7.2V rechargeable transmitter
batteries. It has been designed to prevent incorrect insertion.
(10) AC Power Switch: Insert one end of the plug into socket (16). Insert the other end
into the AC wall socket. Finally, turn on the AC Power switch to activate charging
power.
Wireless Amplifier
Operating Manual
- 2 -
