Mipro MA-808 - MA-808 Battery Replacement; Battery Replacement Procedure

Operating Manual
WIRELESS AMPLIFIER

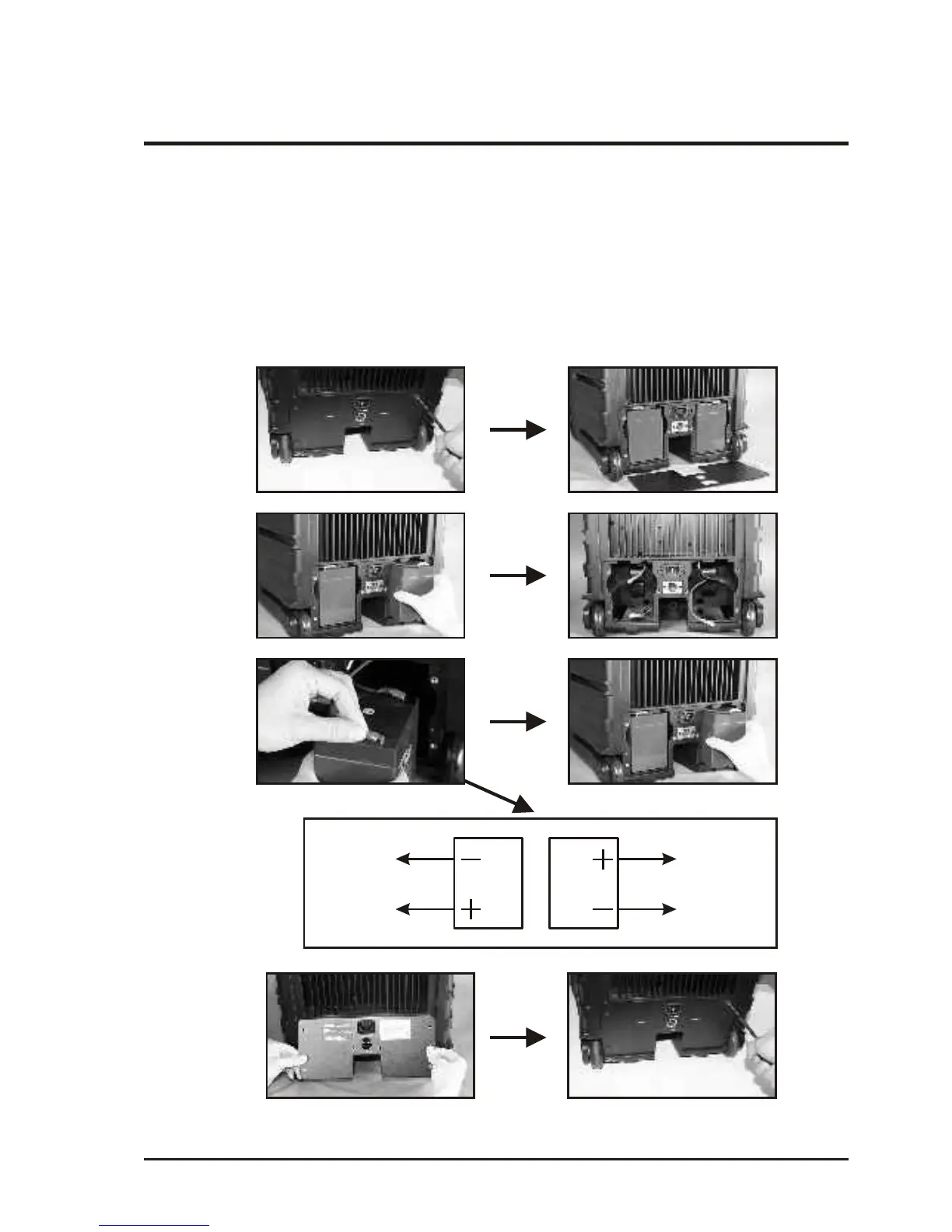

A. Dismount the screws to remove battery holder. (see fig. 2-1)
B. To remove batteries, batteries have to maintain parallel level. (see fig. 2-2)
C. Re-connect the wires to new batteries according to wiring diagram below. (see fig.
2-3)
D. After putting battery holder in place, tighten up the screws. (see fig. 2-4)
(Battery wiring
diagram)
(fig. 2-4)
(fig. 2-3)
(fig. 2-2)
(fig. 2-1)
red wire
red wire
black wire
black wire
4. Replacing Batteries
- 7 -
