Operating Manual
10.Belt clip: allow user to hold transmitter on the belt. Allow various angel adjustment
for the comfort of operation. When not in use, use a Philip (-) screw drive to
uninstall.
1. To adjust volume (6), GT/MT Switch (7), simply push down both snap locks on the
sides of battery cover and flip it backwards to expose the adjustment panel.
2. The LED indicator flashes briefly when power on indicating normal battery status. If
no flash occurs it has either no battery, the battery is drained or installed incorrectly.
Change accordingly.
3. Adjust Gain Control to desired volume. (Gain Control is irrelevant when switch to GT
position).
4. Insert capsule module following direction of connector and rotate clockwise until
capsule unit is securely tightened.
2. Operating Instructions
BODYPACK TRANSMITTER
- 22 -

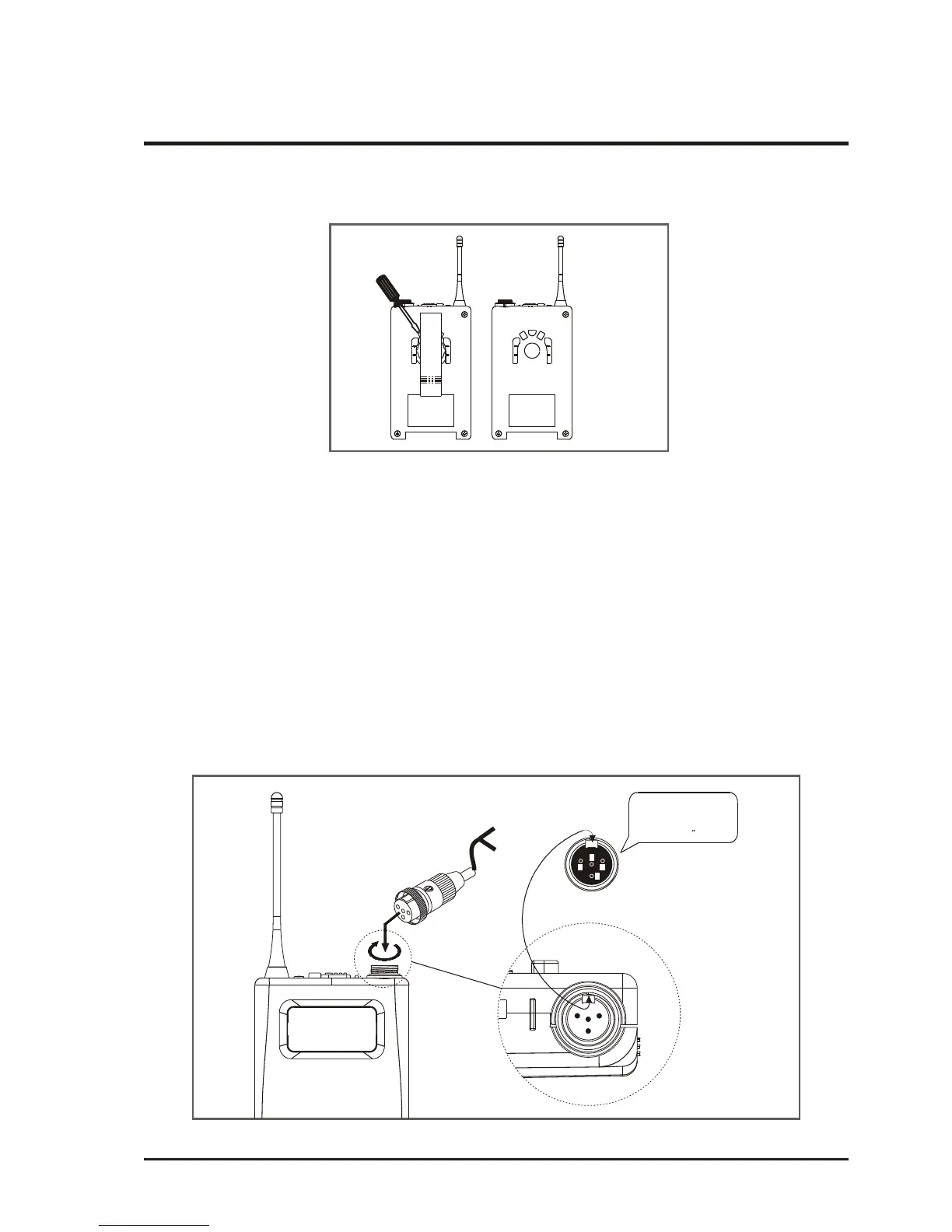

()Fig. 2
()Fig. 3
Lavalier
Headset
Capsule Connector
The ridge on the
connector must match the
indentation on the socket
when inserting.
1
2
4
3
2
3
4
1
