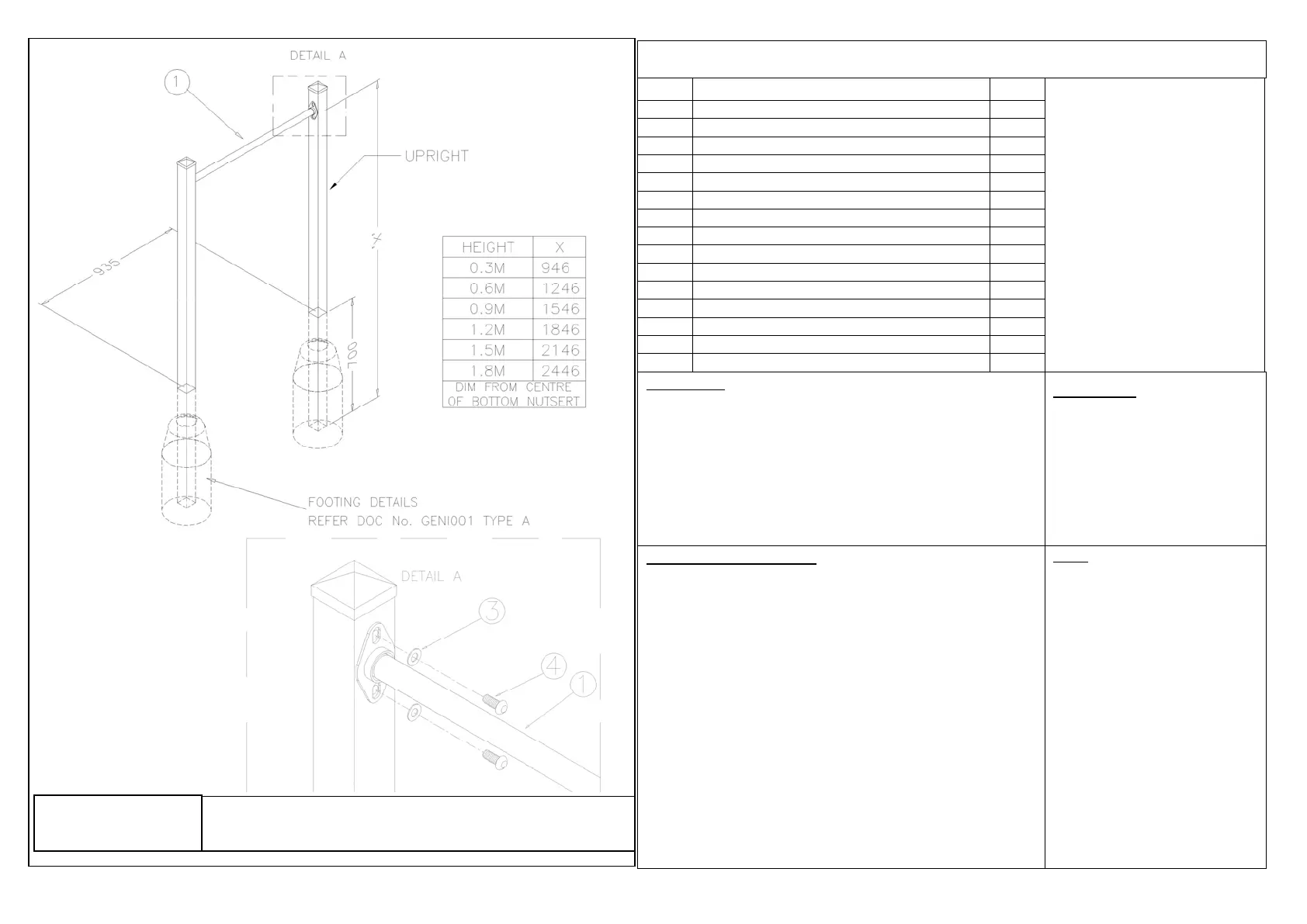

Miracle LIB-053 - Page 3

End Rung / Pipe Twirl
Item Description Qty
Specifications
1
End Rung / Twirl Bar
1
2
M10x25mm Torx Bolt
4
Materials:
3
M10 Flat Washer
4
25nb Galvanized steel
Colour: Optional
Finish: Powdercoat
Faste
ners:
Stainless Steel
Application:
Maintenance
All fasteners should be regularly
checked and retightened, if necessary,
1 week after installation.
Ongoing maintenance intervals will vary
according to the amount of use the
equipment receives.
Recommend inspection intervals every 3
months.
Installation Instructions:
1. Refer to plan view for position of End Rung / Twirl Bar.
2
. Lift the bar into position and secure to the uprights as shown
in detail ‘A’ using the hardware provided.
3. Ensure all Bolts are fully tightened.
Note:
In-ground Upright depth may vary
depending on Softfall
- Sand/Mulch/Grass–700mm (Pictured)
- Rubber – 500mm
+ 300mm Added to Upright depth if
component is Freestanding
+ Use ID tag as reference.
STRUCTURE: ___
______________
DATE: ___________
MIRACLE: ___________________ DATE: ___________
