Miracle LIB-053 - Page 4

0.9m
TWIRL BAR
Item Description Qty
Specifications
1
Twirl Bar
1
2
M10x25mm Torx Bolt
2
Materials:
3
M10 Flat Washer
2
25nb Galvanized steel
Colour
: Optional
Finish: Powdercoat
Fasten
ers:
Stainless Steel
Application:
Maintenance
All fasteners should be regularly
checked and retightened, if necessary,
1 week after installation.
Ongoing maintenance intervals will vary
according to the amount of use the
equipment receives.
Recommend inspection intervals every 3
months.
Installation Instructions:

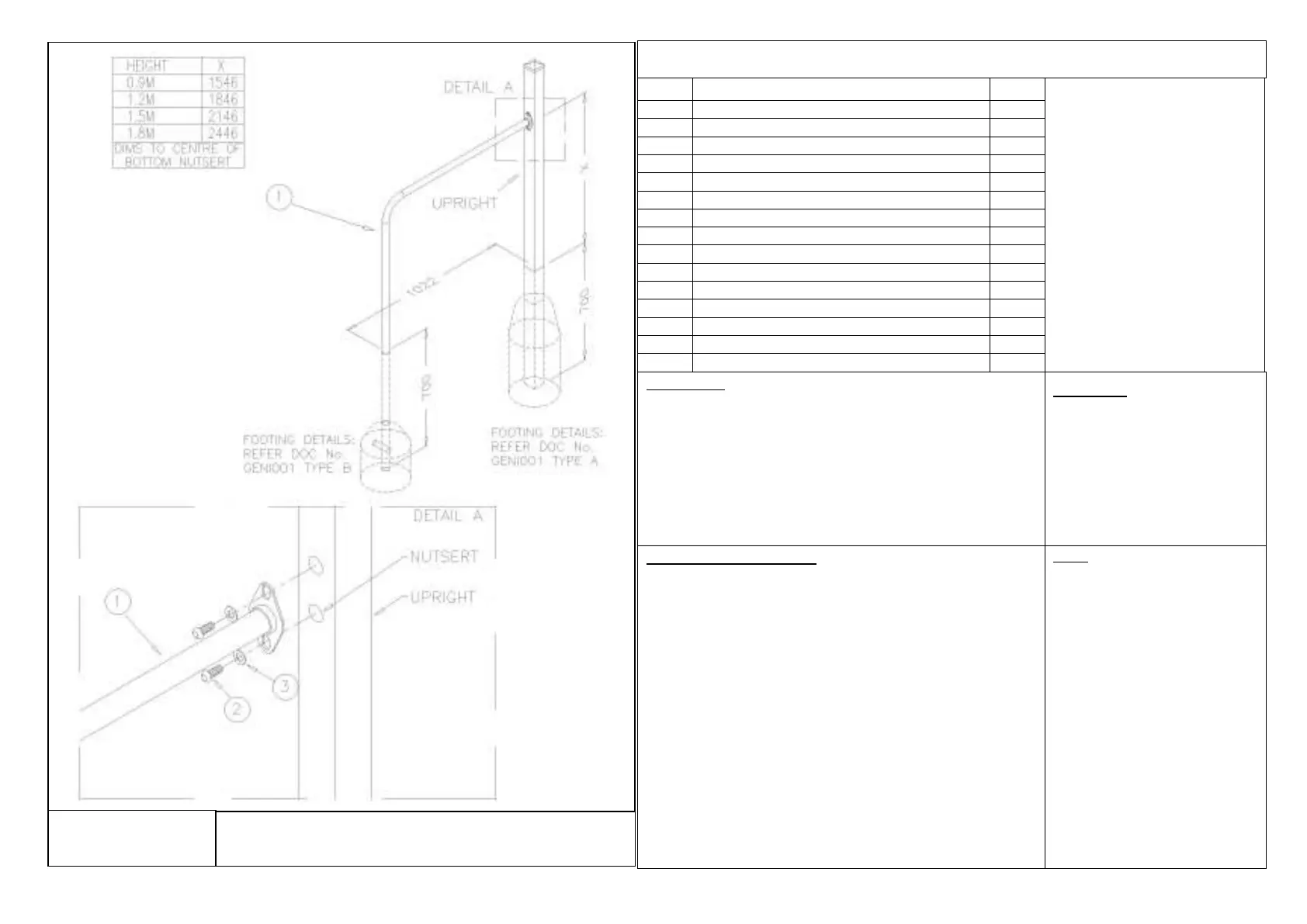

1. Refer to plan view for position of Twirl Bar.
2. Excavate footing as per Drawing.
3. Lift the bar into position and secure to the uprights as shown
in detail ‘A’ using the Torx Bolts.
4. Ensure all Bolts are fully tightened when concrete has fully
cured.
Note:
In-ground Upright depth may vary
depending on Softfall
- Sand/Mulch/Grass–700mm (Pictured)
- Rubber – 500mm
+ 300mm Added to Upright depth if
component is Freestanding
+ Use ID tag as reference.
STRUCTURE: _________________
DATE: ___________
MIRACLE: ___________________ DATE: ___________
Doc No. BA-02
