Miracle LIB-053 - Page 6

1.8
m
HEX
STEP CLIMBER
Item Description Qty
Specifications
1
Step Climber Frame
1
2
‘D’ Handrail
2
Materials:
3
Vertical Climber Overhead Mount
1
4
M10x16mm Grub Screw
1
5
M10x25mm Torx Bolt
8
Colour: Optional
6
M10 Flat Wa
sher
8
Finish: Powdercoat
Fasteners:
Stainless Steel
Application:
For use as an exit or entry point to decks.
Designed for Hand – Eye Coordination
Available in 900mm, 1200mm, 1500mm and 1800mm heights.
Maintenance
All fasteners should be regularly
checked and retightened, if necessary,
1 week after installation.
Ongoing maintenance intervals will vary
according to the amount of use the
equipment receives.
Recommend inspection intervals every 3
months.
Installation Instructions:

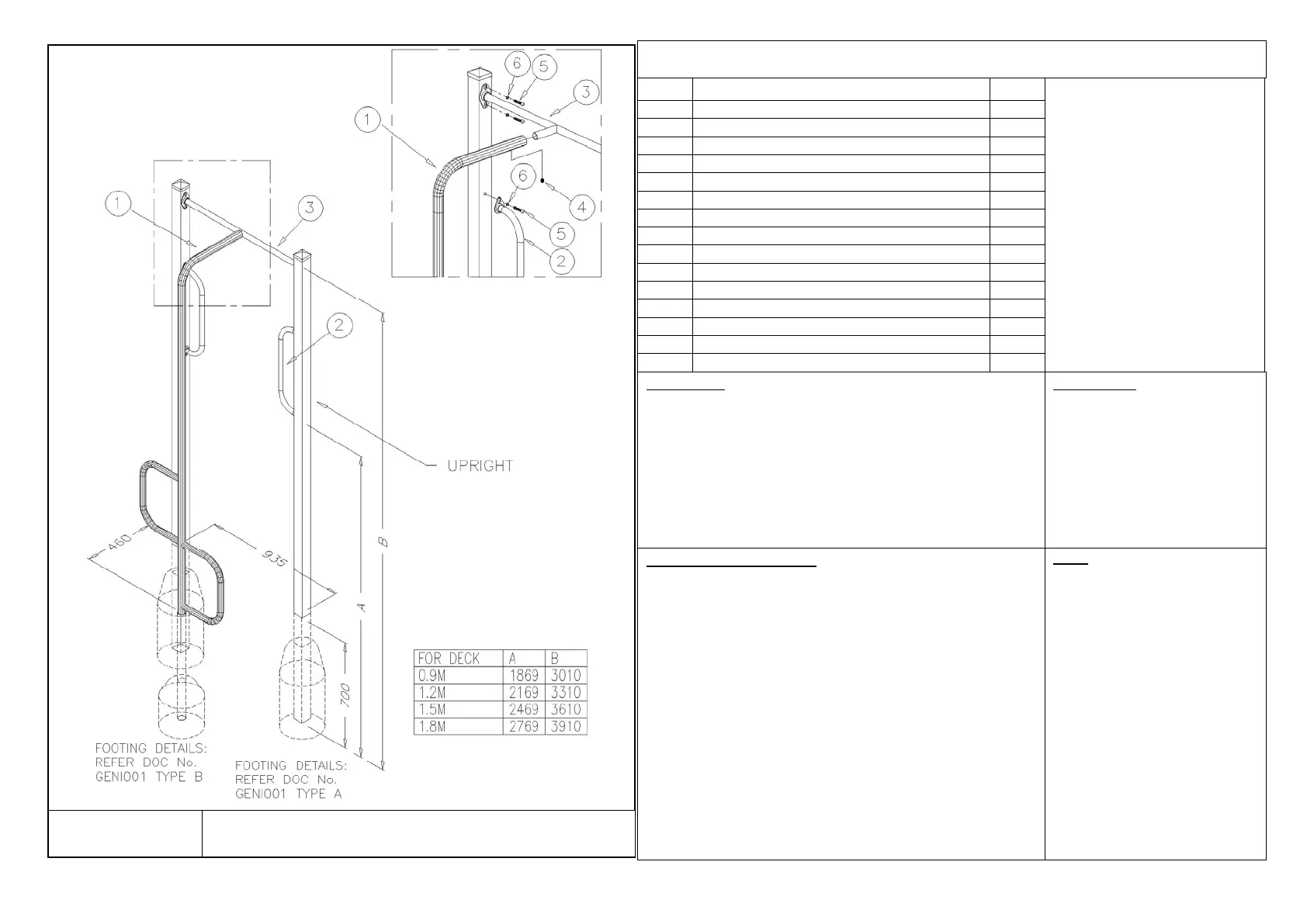

1. Refer to plan view for position of Step Climber.
2. Bolt the climber overhead to the outside face of the uprights
with two Torx Bolts with Flat Washers under the heads.
3. When the climber overhead is in position, slide the climber
over the pipe lug and push it all the way on and secure with a
Grub Screw. Ensure that the grub screw is done up tight.
4. Secure the top and bottom of each of the handrails to the
upright with a Torx Bolt.
For Gym Set Installation Use Instructions 1 and 3.
Note
:
In-ground Upright depth may vary
depending on Softfall
- Sand/Mulch/Grass–700mm (Pictured)
- Rubber – 500mm
+ 300mm Added to Upright depth if
component is Freestanding
+ Use ID tag as reference.
STRUCTURE: ____________________
DATE: ________
___
MIRACLE: ______________________ DATE: ___________
Doc No. C
-
